BMW has long been known for building engines that balance smooth power delivery, high RPM performance, and everyday drivability. One of the technologies largely responsible for that reputation is BMW’s VANOS system. Introduced in the early 1990s, VANOS became one of BMW’s most important engine innovations, improving horsepower, torque, fuel economy, and emissions across a wide range of inline-6 and V8 engines.
Over the years BMW developed several versions of VANOS, including Single VANOS, Double VANOS, the high-performance S54 VANOS system, and the V8 M62TU VANOS setup. While these systems greatly improved engine performance, they also introduced new maintenance concerns and common failure points that BMW enthusiasts know well today.
What Does VANOS Mean?
VANOS stands for:
VAriable NOckenwellen Steuerung
Translated from German, it means:
Variable Camshaft Timing
The VANOS system allows the engine computer to adjust camshaft timing while the engine is running. By changing valve timing dynamically, the engine can operate more efficiently at different RPM ranges and engine loads.
What Does BMW VANOS Do?
The purpose of VANOS is to optimize engine performance under different driving conditions.
At low RPMs, VANOS can advance cam timing to improve low-end torque and throttle response. At higher RPMs, the system can retard timing to improve horsepower and engine breathing.
Benefits of VANOS include:
- Improved low-end torque
- Better throttle response
- Increased horsepower
- Smoother idle quality
- Improved fuel economy
- Reduced exhaust emissions
Without variable valve timing, engines must compromise between low RPM drivability and high RPM power. VANOS allows BMW engines to perform well in both situations.
How BMW VANOS Works
BMW VANOS systems use oil pressure and electronically controlled solenoids to adjust camshaft position.
The system works like this:
- The DME (BMW’s engine computer) monitors engine RPM, load, throttle position, and temperature.
- The DME activates a VANOS solenoid.
- The solenoid directs pressurized engine oil into the VANOS unit.
- Oil pressure moves internal pistons or gears that rotate the camshaft slightly.
- The camshaft timing changes depending on engine operating conditions.
The system constantly adjusts timing in real time while the engine runs.
Key VANOS components include:
- VANOS solenoids
- Camshaft gears
- Oil passages
- Timing chain
- Camshaft position sensors
- Engine control module (DME)
Because VANOS relies heavily on clean oil pressure, neglected oil changes are one of the leading causes of VANOS-related failures.

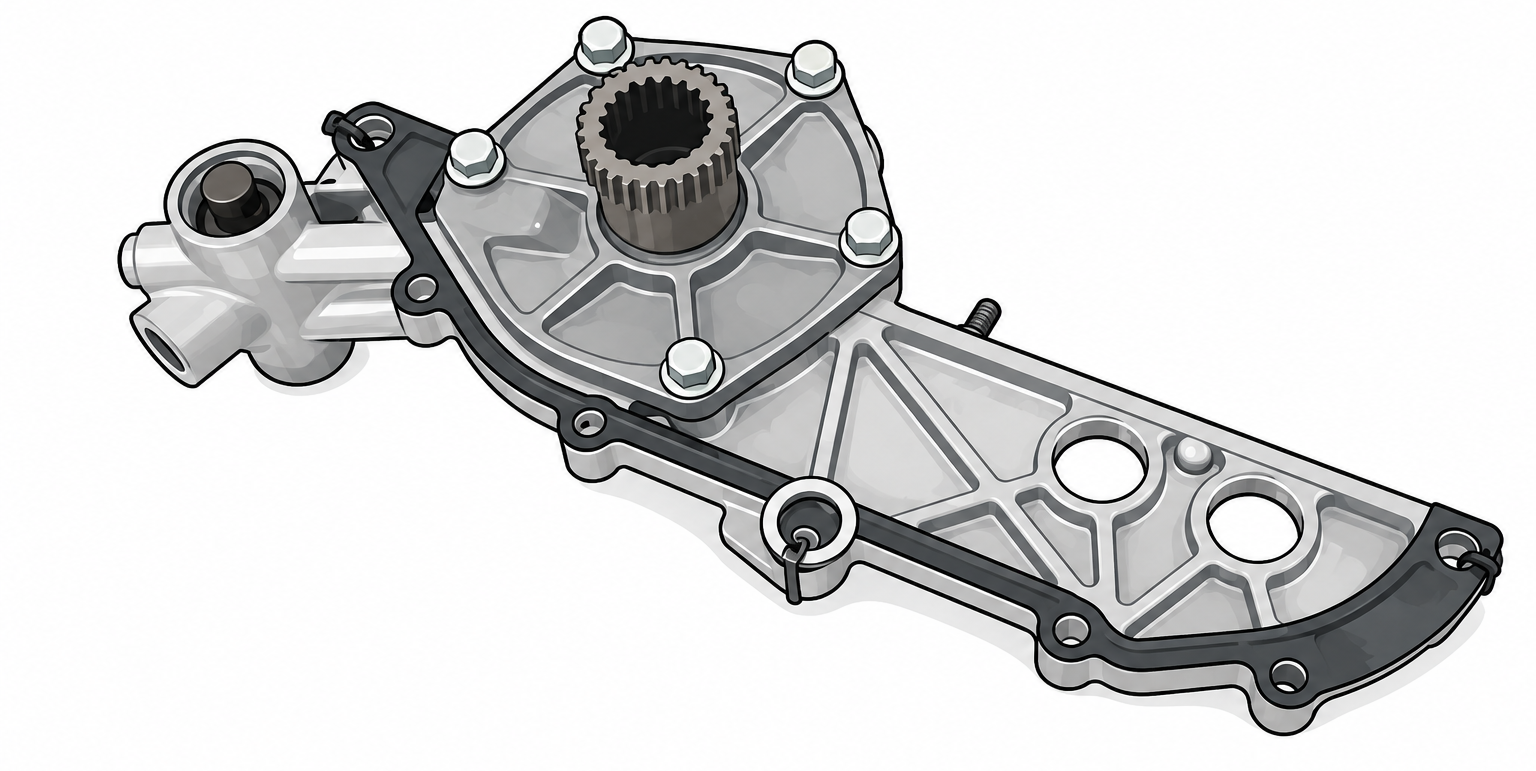

Single VANOS
BMW introduced Single VANOS in the early 1990s.
This first-generation system adjusted only the intake camshaft timing. Compared to older fixed-timing engines, Single VANOS improved low-end torque and overall drivability without significantly increasing engine complexity.
Single VANOS systems are relatively simple and reliable compared to later BMW variable timing systems.
Common Single VANOS Engines
- M50TU
- M52
- S50US
Common BMW Chassis Using Single VANOS
- BMW E34
- BMW E36
- BMW E39
- BMW Z3
Common Single VANOS Problems
- Worn VANOS seals
- Solenoid failure
- Oil sludge buildup
- Camshaft sensor faults
Typical symptoms include sluggish low-end power, hesitation, rough idle, and check engine lights.

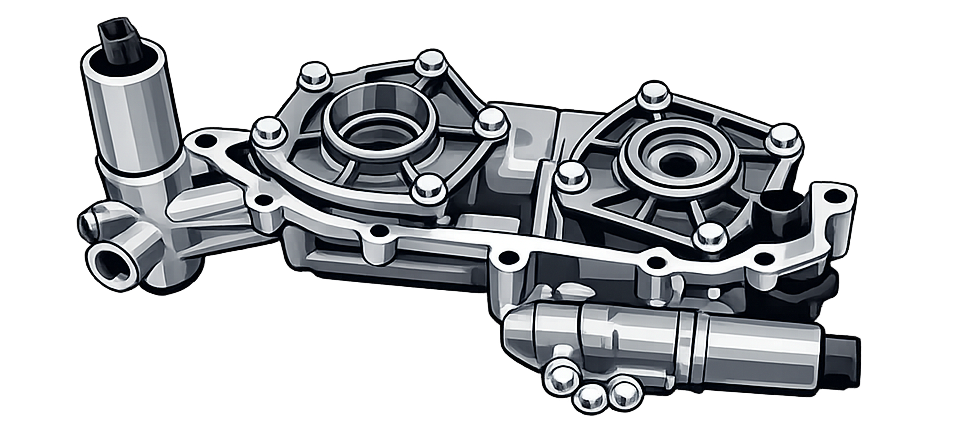

Double VANOS (Dual VANOS)
BMW later introduced Double VANOS, also known as Dual VANOS.
Unlike Single VANOS, this system controls both the intake and exhaust camshafts independently. This gave BMW engineers much greater control over engine performance and emissions.
Double VANOS greatly broadened the torque curve and improved fuel economy while maintaining strong top-end power.
Common Dual VANOS Engines
- M52TU
- M54
- M56
- N62
- S54
Common BMW Chassis Using Dual VANOS
- BMW E46
- BMW E39
- BMW E53
- BMW E60
- BMW Z4
Common Dual VANOS Failures
Dual VANOS systems added more complexity, which also increased common failure points.
Typical issues include:
- Hardened VANOS piston seals
- Sticking solenoids
- Timing chain wear
- Camshaft sensor failure
- Oil pressure problems
As seals wear out, the system may struggle to properly adjust timing, causing noticeable power loss and drivability issues.

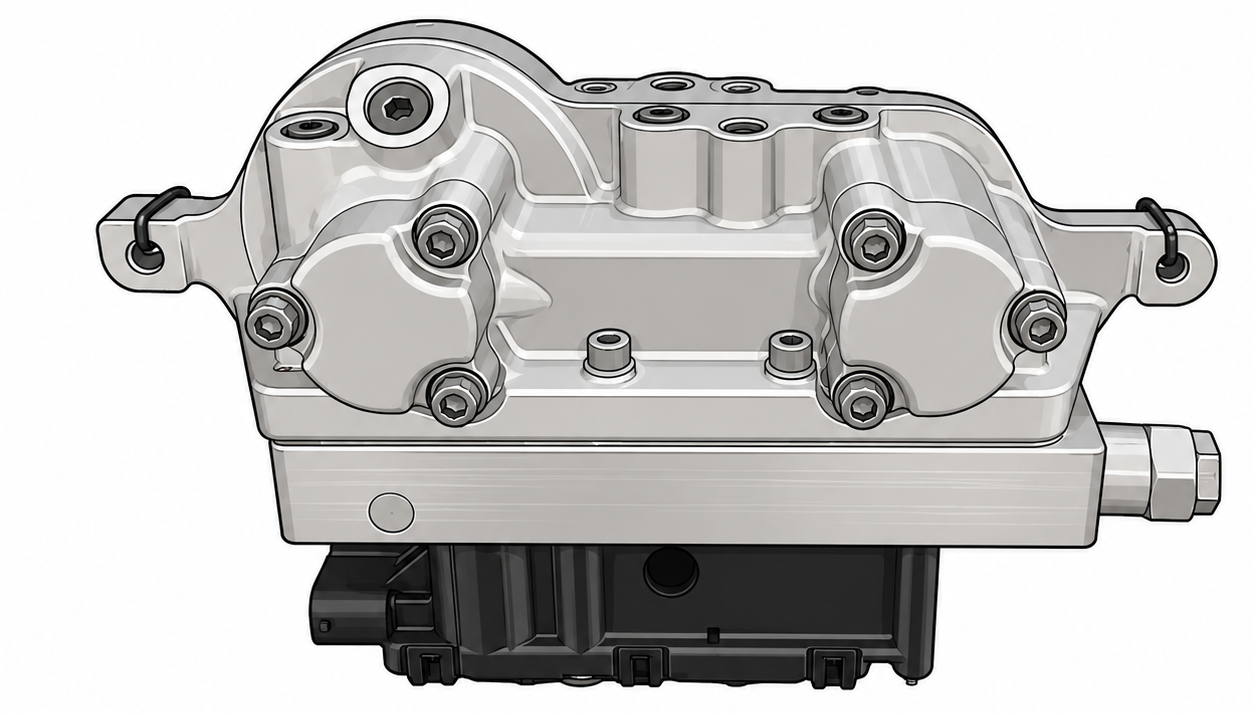

S54 VANOS System
The S54 engine found in the legendary BMW E46 M3 uses one of BMW’s most advanced and aggressive VANOS systems.
Unlike standard BMW engines, the S54 VANOS system uses a high-pressure oil pump and rapidly adjusts both intake and exhaust timing for maximum performance.
The S54’s VANOS system played a major role in helping the 3.2L inline-6 produce over 100 horsepower per liter naturally aspirated — an impressive achievement for its time.
Common S54 VANOS Applications
- BMW E46 M3
- BMW Z3 M Coupe
- BMW Z4 M Coupe
- BMW Z4 M Roadster
Common S54 VANOS Failures
The S54 VANOS system is well known for several serious failure points:
- Exhaust hub tab failure
- VANOS oil pump disc failure
- Solenoid pack issues
- Cam gear wear
- Loose exhaust hub bolts
Symptoms may include:
- Metallic rattling noises
- Engine timing faults
- Loss of power
- Misfires
- Check engine lights
Many enthusiasts proactively rebuild or reinforce S54 VANOS systems to prevent catastrophic damage.

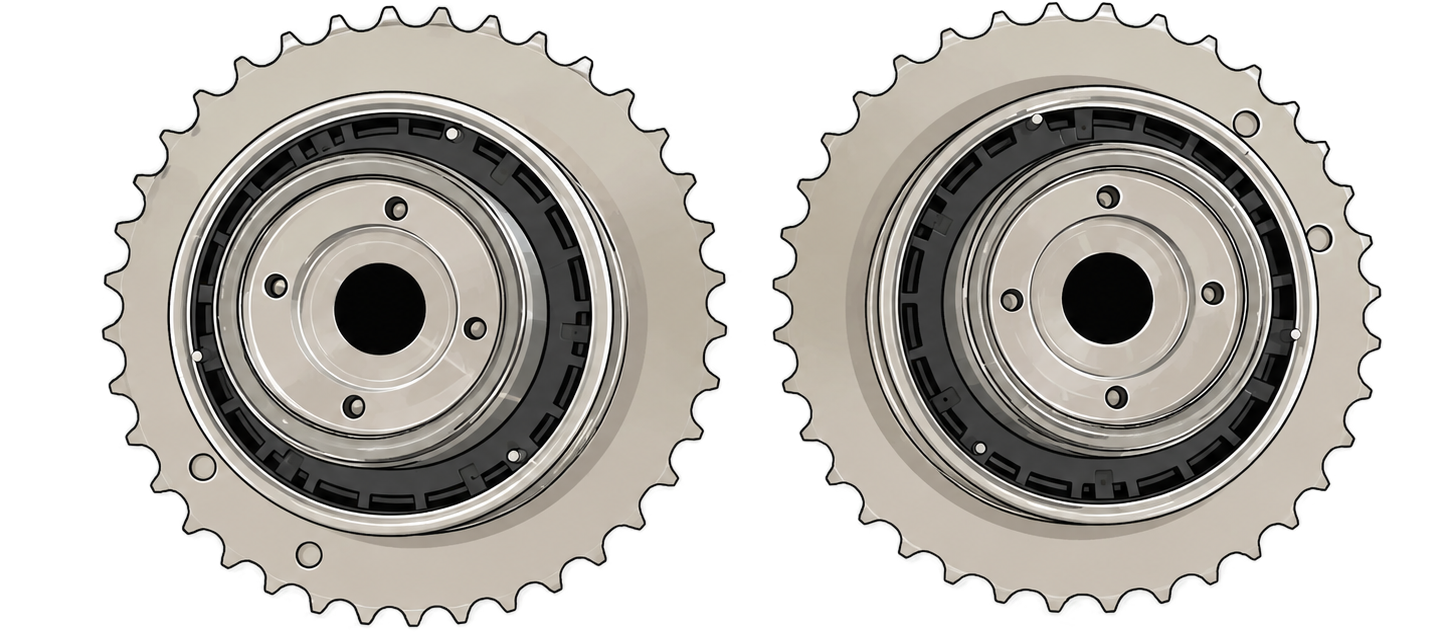

M62TU VANOS System
BMW introduced VANOS to its V8 lineup with the M62TU engine.
“TU” stands for “Technical Update,” and this version of the M62 added Single VANOS to the intake camshafts.
The result was improved low-end torque and smoother drivability compared to earlier non-VANOS M62 engines.
Common M62TU Applications
- BMW E39
- BMW E38
- BMW X5 E53
Common M62TU VANOS Problems
M62TU engines are known for several timing-related issues:
- Timing chain guide failure
- Worn VANOS seals
- Oil sludge buildup
- Solenoid failure
- Timing chain tensioner wear
One of the most serious failures on M62TU engines is timing chain guide deterioration. Broken guides can cause timing errors, startup rattles, and even catastrophic engine damage if ignored.
Common BMW VANOS Failures
Worn VANOS Seals
One of the most common BMW VANOS issues is worn internal piston seals.
Over time, heat causes the factory rubber seals to harden and lose sealing ability. When this happens, oil pressure leaks internally and the VANOS unit cannot properly adjust cam timing.
Symptoms
- Loss of low-end torque
- Hesitation during acceleration
- Rough idle
- Poor fuel economy
- Reduced throttle response
VANOS Solenoid Failure
VANOS solenoids control oil flow into the VANOS unit. Dirty oil and sludge buildup commonly cause these solenoids to stick or fail.
Symptoms
- Check engine light
- Rough idle
- Power loss
- Intermittent hesitation
- Reduced fuel economy
Camshaft Position Sensor Failure
The DME relies on camshaft position sensors to monitor timing adjustments. Faulty sensors can confuse the VANOS system and trigger timing errors.
Symptoms
- Hard starting
- Stalling
- Misfires
- Reduced performance
- Timing-related fault codes
Common BMW VANOS Engine Codes
BMW VANOS failures commonly trigger engine fault codes and check engine lights.
Common OBD-II VANOS Codes
Intake Timing Codes
- P0011 — Intake Camshaft Timing Over-Advanced
- P0012 — Intake Camshaft Timing Over-Retarded
Exhaust Timing Codes
- P0021 — Exhaust Camshaft Timing Over-Advanced
- P0022 — Exhaust Camshaft Timing Over-Retarded
Correlation Codes
- P0016 — Crankshaft/Camshaft Correlation
- P0017 — Camshaft Position Correlation
Common BMW-Specific VANOS Codes
- 2A82 — VANOS Intake Fault
- 2A87 — VANOS Exhaust Fault
- 212 — VANOS mechanically stuck
- 214 — VANOS timing deviation
These codes often indicate problems with oil pressure, worn VANOS seals, timing chain wear, or failed solenoids.
Symptoms of a Failing BMW VANOS System
A failing VANOS system can create a wide variety of drivability issues.
Common symptoms include:
- Rough idle
- Loss of power
- Poor throttle response
- Reduced fuel economy
- Hesitation during acceleration
- Cold start problems
- Startup rattles
- Check engine lights
- Loss of high RPM power
Because VANOS directly affects valve timing, even small issues can noticeably change engine behavior.
Why VANOS Maintenance Matters
Proper maintenance is critical for long-term VANOS reliability.
Recommended maintenance includes:
- Regular oil changes
- Using correct BMW-approved oil viscosity
- Replacing failing solenoids early
- Monitoring timing chain condition
- Replacing worn VANOS seals proactively
BMW VANOS systems depend heavily on clean oil pressure. Engines with neglected oil service histories are significantly more likely to develop VANOS problems over time.
Conclusion
BMW’s VANOS system was a major step forward in engine technology and helped define the responsive, smooth power delivery BMW became known for throughout the 1990s and 2000s.
From early Single VANOS systems to the high-performance S54 setup, VANOS allowed BMW engines to deliver strong low-end torque, improved efficiency, and high RPM performance all in one package.
While VANOS systems can develop failures as engines age, proper maintenance and early repairs can keep these engines running smoothly for hundreds of thousands of miles.
Whether you own an BMW E36, BMW E46 M3, or a V8-powered BMW E39, understanding VANOS is essential for diagnosing and maintaining peak BMW performance.
