Introduction
- Learning the electrical system on your BMW is crucial to becoming a good mechanic. Reading the schematics will help you diagnose, troubleshoot, and modify electrical issues, which let’s face it, will inevitably happen. The BMW electrical schematics divide the entire vehicle electrical system into individual circuits. Interacting electrical components are also shown on one common schematic.
- Electrical diagrams are visual representations of electrical circuits or systems. They use standardized symbols to show components like wires, switches, batteries, resistors, and connections. These diagrams help electricians, engineers, and technicians understand how electricity flows through a system, how parts are connected, and how to troubleshoot or build the circuit correctly.
Important: It is important to know that the wires and components are not drawn to scale. As an example, a lead with a length over 3 feet can be shown as a lead only measuring an inch.
Being able to read electrical diagrams is crucial for several reasons:
- Repairs: Diagrams help identify failed components and locate issues, saving time and reducing any guesswork.
- Modifications: When adding or modifying parts of an electrical system, diagrams show how existing components are connected, ensuring safe and proper install.
- Troubleshooting: Diagrams provide a map of the circuit, allowing mechanics to
- trace electrical paths and diagnose problems.
- Safety: Understanding how circuits are wired helps prevent accidents, short circuits, or damage to the wiring system.
Types of Electrical Diagrams
- Schematic Diagram – shows the function and logic of the electrical circuit.
- Wiring Diagram – shows actual connections and physical layout.
- Pictorial Diagram – shows components as pictures. (Not seen much on BMWs)

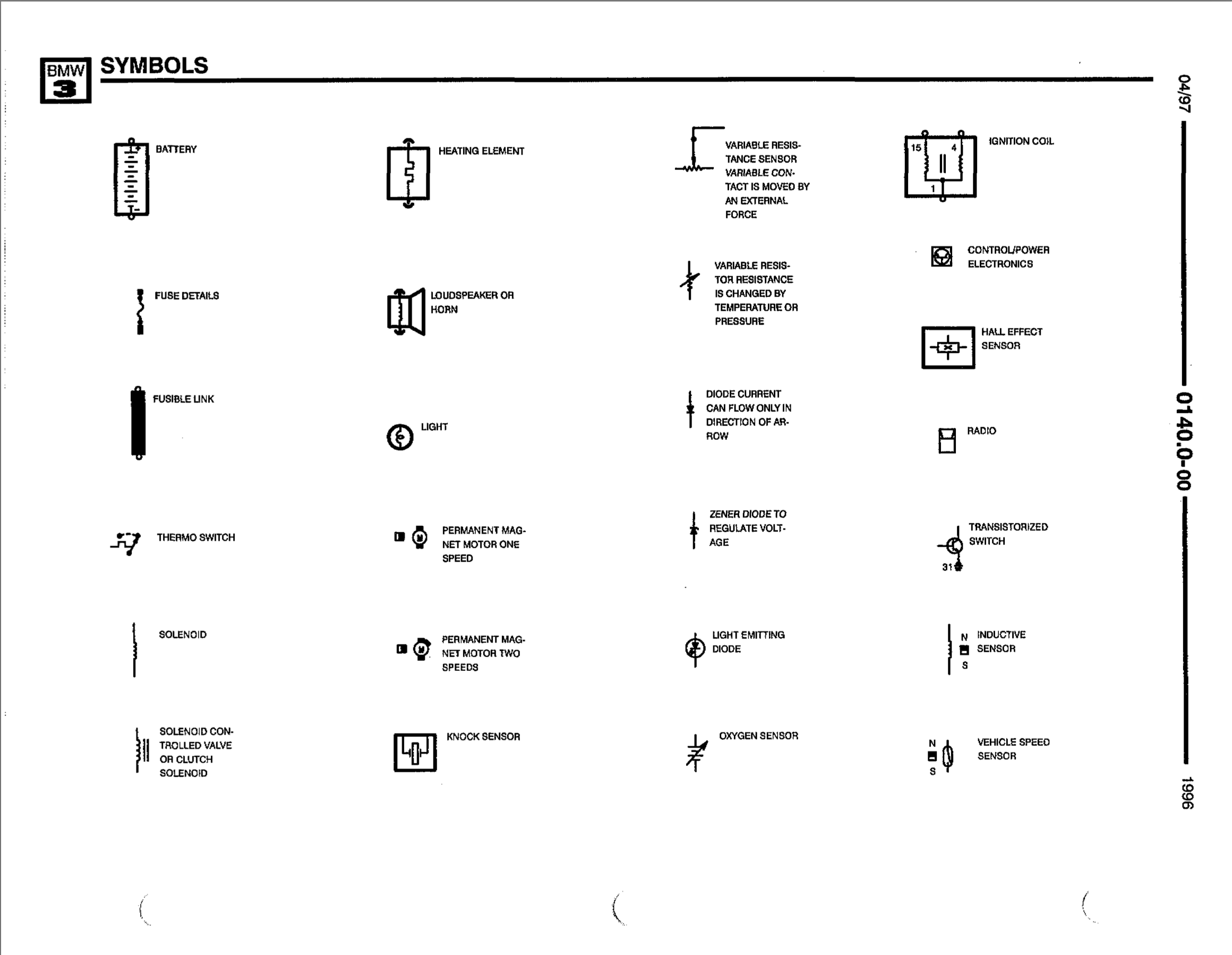

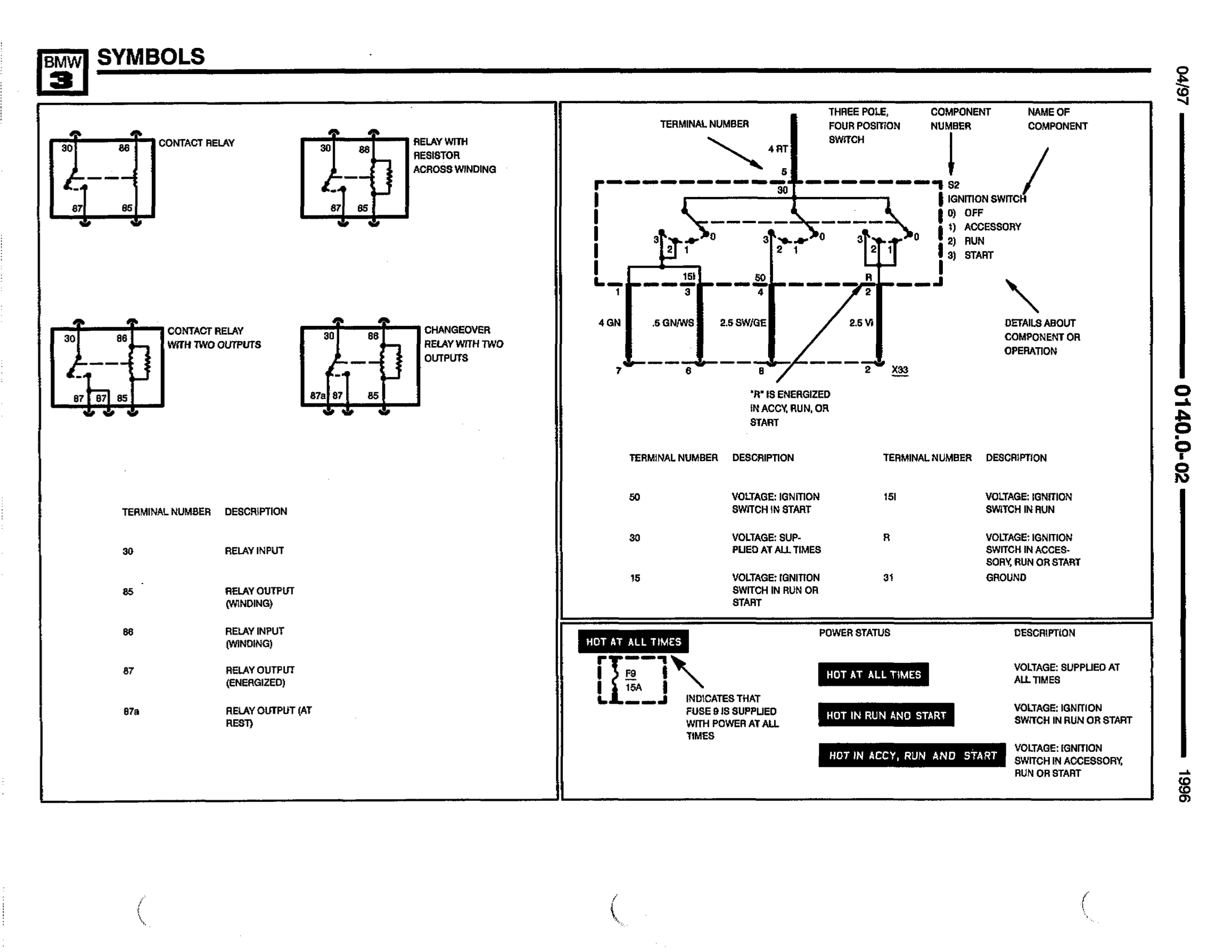

Schematic Electrical Symbols
- BMW uses specific symbols on their diagrams to easily show the mechanic important information about the circuit. Here are some of the symbols used. It is very important to become familar with these symbols or reference this key while troubleshooting.

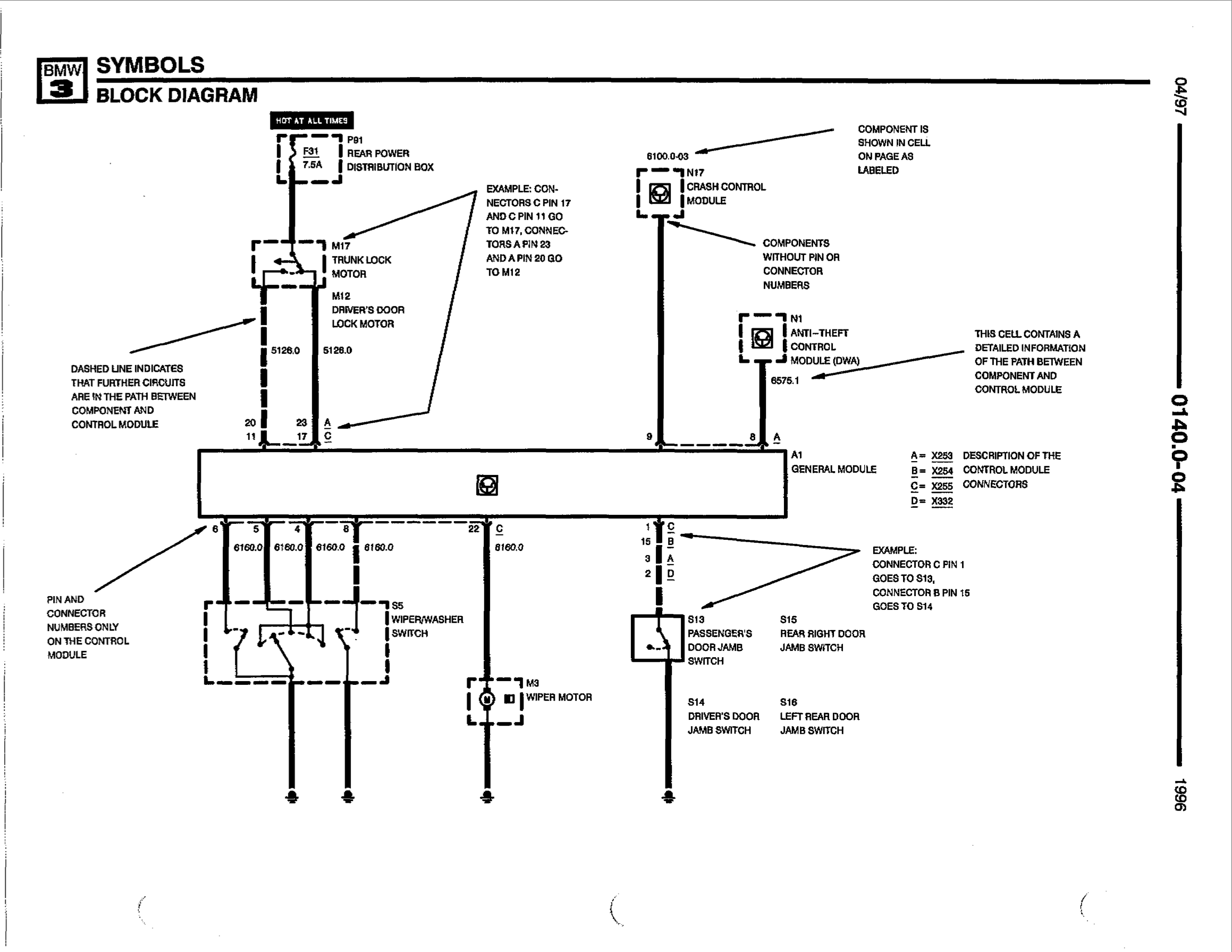

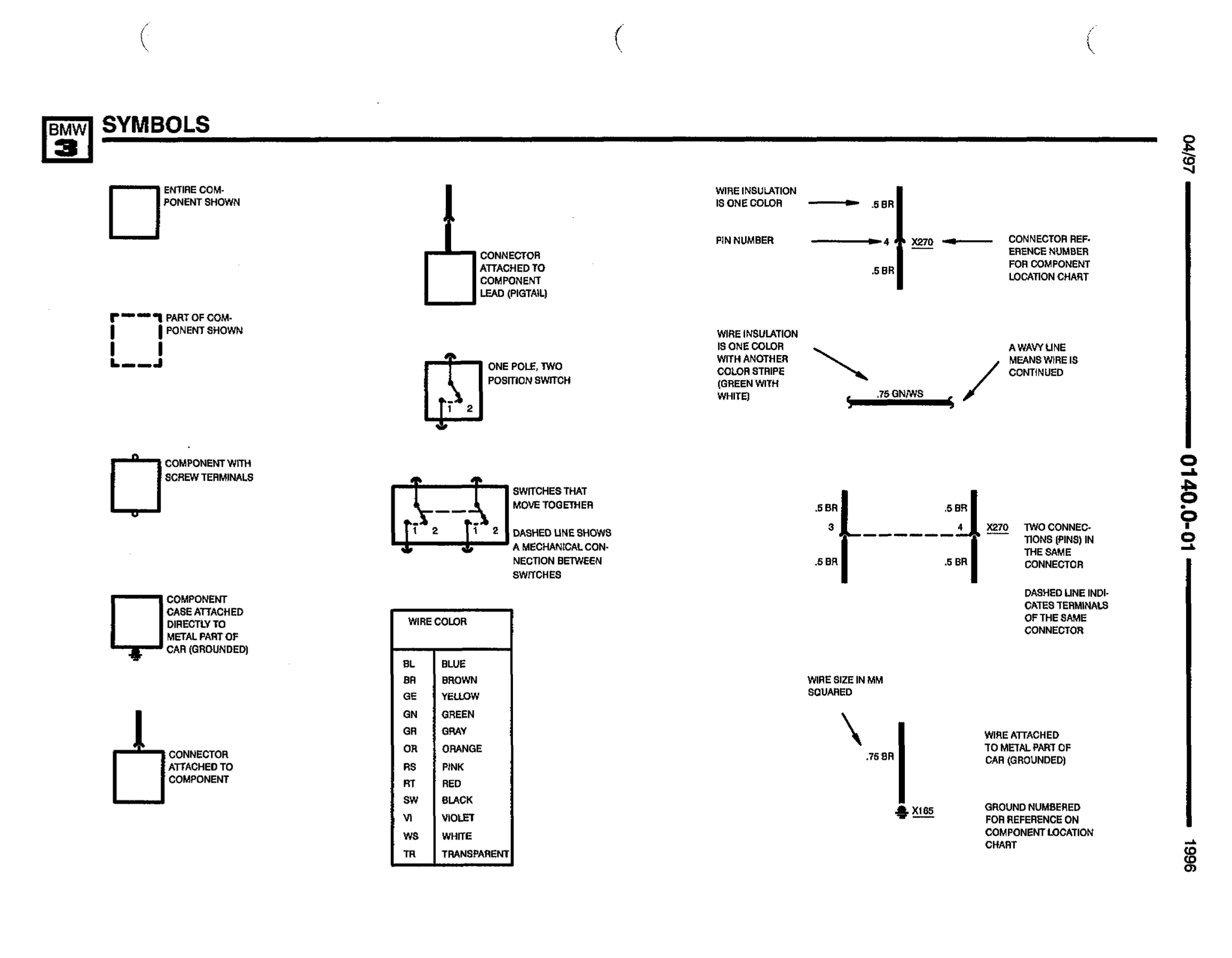

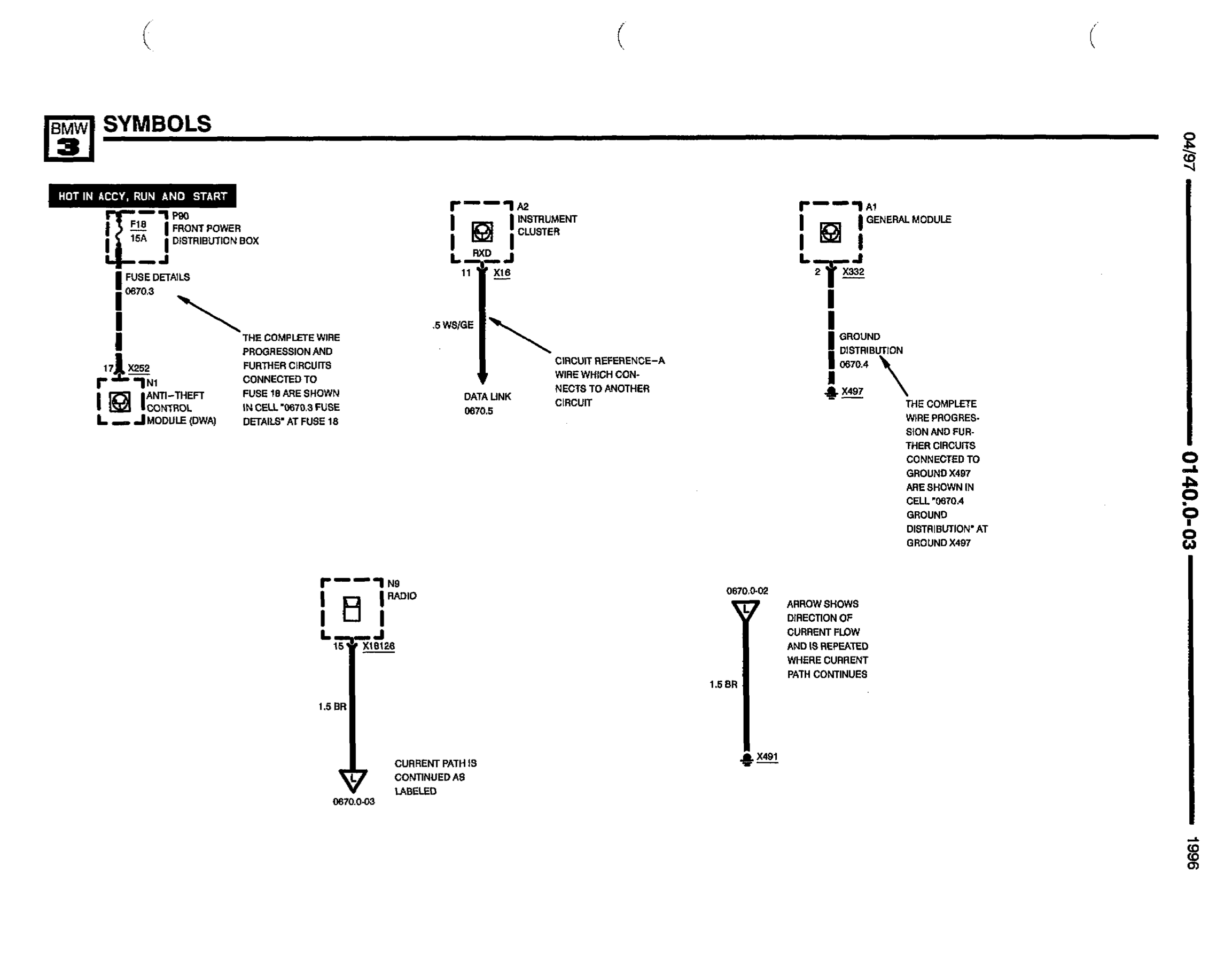

Understanding Lines and Connections
- Note: Switches and relays are shown in the reset position
- A dashed line signifies that the component is illustrated only in part
- A solid line signifies that the component is illustrated in full
- A dashed lines between 2 pins in a connector indicates that both pins belong to that connector.

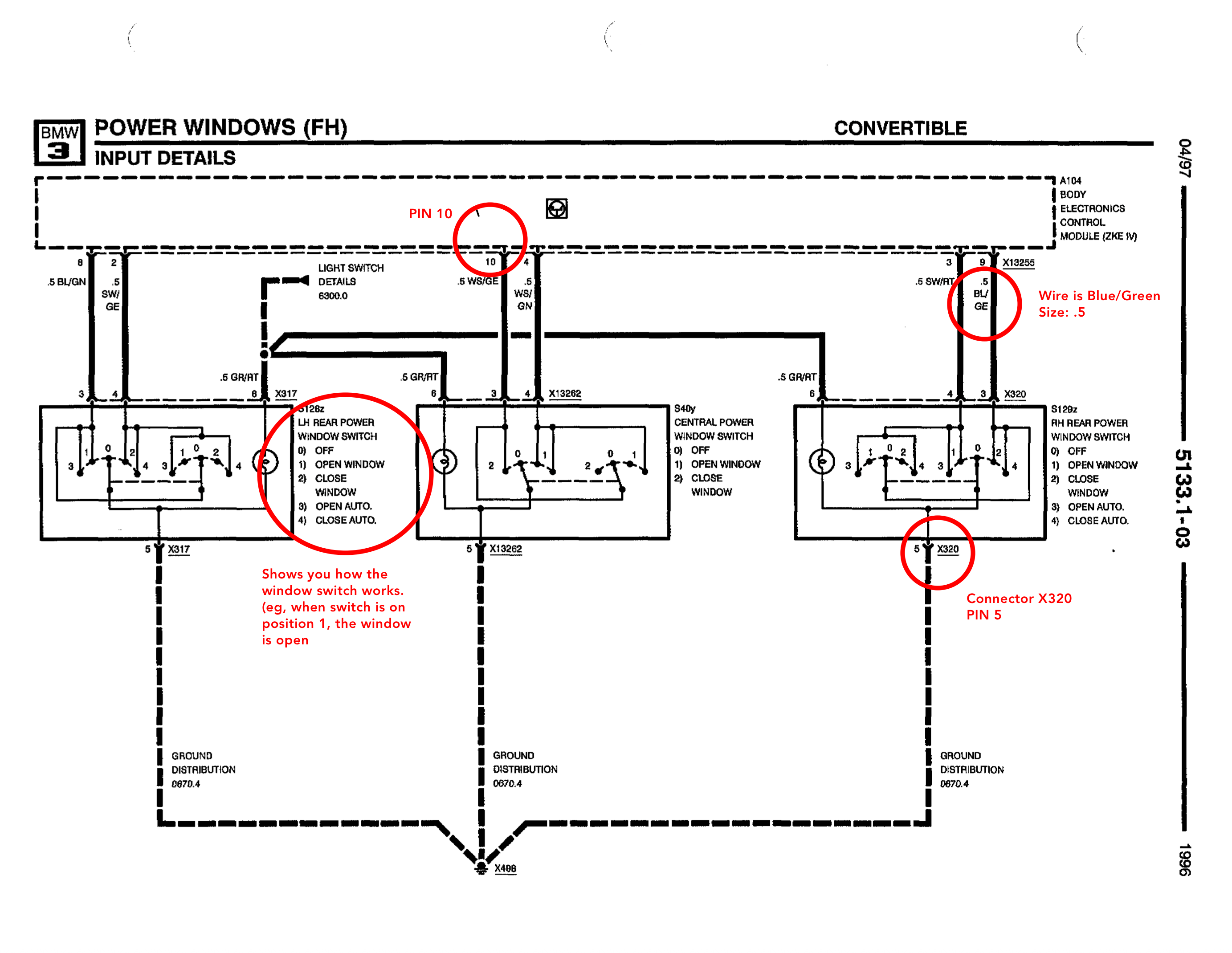

Reading an Electrical Diagram Step By Step
Note: This may differ depending on what you want to acomplish. These are the generics steps when tracing a circuit.
- Start with the power source, like the 12v battery.
- Follow the flow of the currect to the component you are looking for.
- Look for relays, switches, fuses etc that could be stopping or starting the flow of current.
- Note that there may be multiple sources of power depending on the circuit.
- The circuit may not always be on one page, and be contained in multiple pages of the schematics.
- The numbers next to the connectors indicate the pin the wire is associated with.
- Two letters next to the wires indicate the color of the wire. (GN-GREEN, VI-VIOLOT)
Tips
- Break the schematics into sections
- Use a highlighter to trace the circuit to make it more cleaer where the wires are going.
- Use a multimeter to text the current, voltage, or continuity, to make sure a wire is not broken along the circuit.
Conclusion
Reading electrical wiring schematics is a crucial skill and can be invaluable to diagnosing and troubling a cars electrical system. Efficient troubleshooting can save you time, and money. Remember this is a skill that has to be learned, and practice makes perfect.
BONUS
Most BMW wiring diagrams can actually be downloaded for FREE, thats right free! This website has many of the early models, so we encourage you to check them out, download and save for when you are in dire needs of some electrical work.
