TBM Brakes A90 Toyota Supra Drag Brakes (Rear)

Racing use only, NOT legal for road use.

Experience one of the lightest, highest-performing brake systems available with the TBM Performance Front Brake Kit. Proven everywhere from Top Fuel Dragsters to Hot Rod Drag Week, TBM brakes deliver unmatched consistency, lower drag, and reduced friction, giving racers quicker ETs, improved efficiency, and longer pad life. With innovative engineering and precision-machined components, TBM continues to set the standard for competitive braking performance.

This complete kit features TBM’s F3 calipers, lightweight Revolution rotors, hats, brackets, pads, and hardware, built to provide maximum stopping power with minimal rolling resistance.

Installation Instructions: CLICK HERE

Kit Includes

• F3 Caliper 1.75" Stainless Steel Pistons, .500 Rotor – 002-0056SSP-1

• F3 Caliper 1.75" Stainless Steel Pistons, .500 Rotor – 002-0056SSP-2

• Revolution Rotors – 11.5" x .375 – 3-1150500D

• Rear Caliper Bracket – 17-0092-1, 17-0092-2

• 5x112mm Rotor Hat – 205-0014

• Hardware Kit – 011-0359

• F3 Brake Pads #1 (Full Set) – 6-0102W

• Rotor Bolt Kit – 011-0359

Total Kit Weight: 23.55 lbs
Brake Lines: Not included

These clear most 15" drag wheels with or without beadlock rings

Recommended Brake Fluid

For optimal performance, Race German recommends TBM DOT 5.1 Extreme 6 Brake Fluid. A fully dry or newly built system will require at least four (12 oz) bottles.

Installation Note:
Apply red Loctite to all rotor bolts.

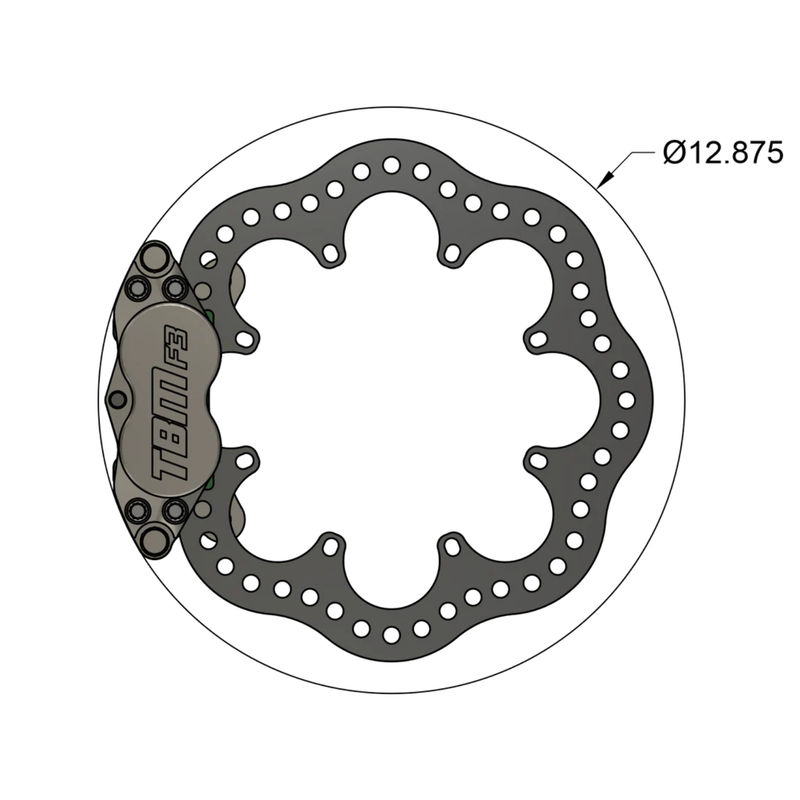

TBM Rear Drag Brakes are specifically designed to have maximum clearance for 15" double beadlocks offering best in class clearance they clear nearly every beadlock on the market. Use this reference diagram for clearance concerns.
