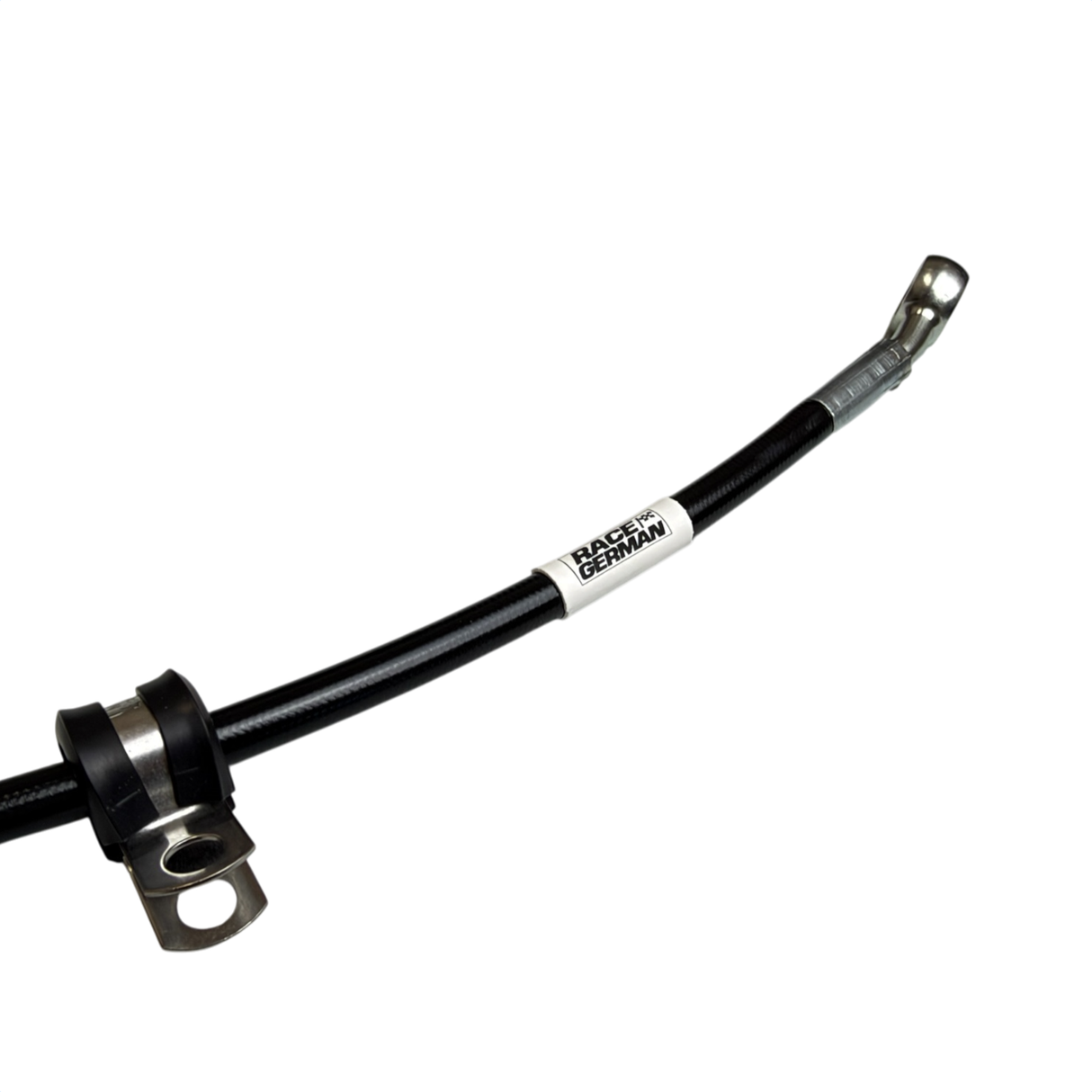

Race German Upgraded S54 PTFE VANOS Oil Supply Line

The BMW S54 VANOS system operates using high-pressure engine oil, making the VANOS oil supply line a critical component of the system. The Race German Upgraded S54 VANOS Oil Supply Line replaces the factory line with a premium motorsport-grade assembly built from Aeroquip smooth-bore PTFE racing hose, MOCAL USA fittings, Techflex fire sleeve, and custom aerospace-grade titanium banjo bolts.

This isn't simply a replacement for an aging factory hose, we designed it as a serious upgrade for both street and track-driven S54 engines.

Aeroquip PTFE Racing Hose

At the heart of the assembly is Aeroquip smooth-bore PTFE racing hose with a stainless-steel braided exterior.

Traditional rubber hoses with textile reinforcement can expand under pressure and deteriorate from prolonged exposure to heat, oil, and the harsh environment of an engine bay. PTFE hose is widely used in high-performance brake and hydraulic applications because of its excellent combination of low weight, high strength, minimal expansion, temperature capability, and resistance to abrasion and environmental damage.

The Aeroquip PTFE hose features an impressive operating temperature range of:

-100°F to +450°F (-73°C to 232°C)

This makes it an excellent choice for the demanding conditions surrounding the S54 VANOS system.

Techflex High-Temperature Fire Sleeve

For another layer of protection, we've added an industry-leading Techflex fire sleeve around the hose. The sleeve helps protect the VANOS oil line from the extreme radiant heat found in the S54 engine bay while also providing additional abrasion protection.

Techflex Fire Sleeve Temperature Ratings:

• Minimum Continuous: -65°F / -54°C
• Maximum Continuous: 500°F / 260°C
• Melt Temperature: 2048°F / 1120°C

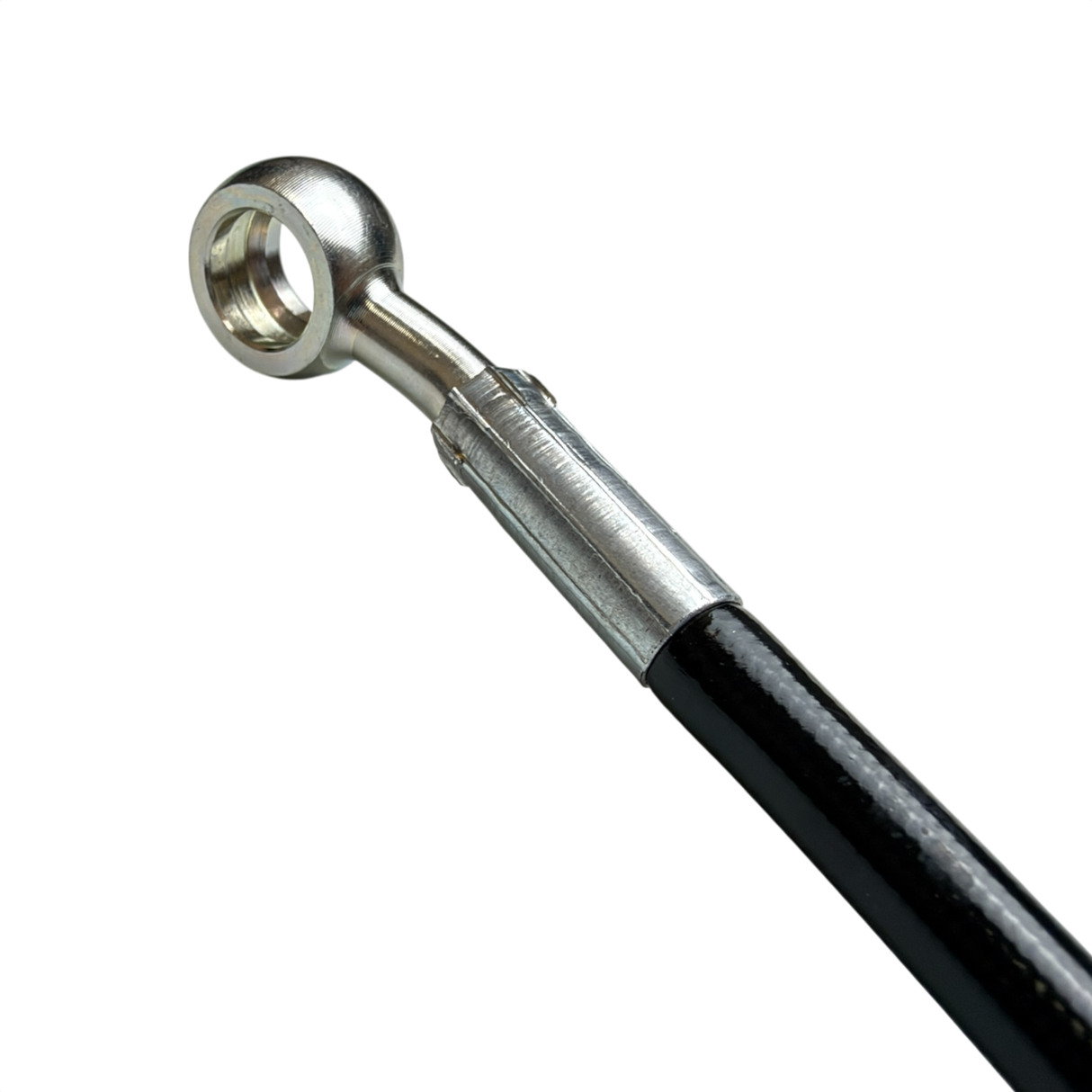

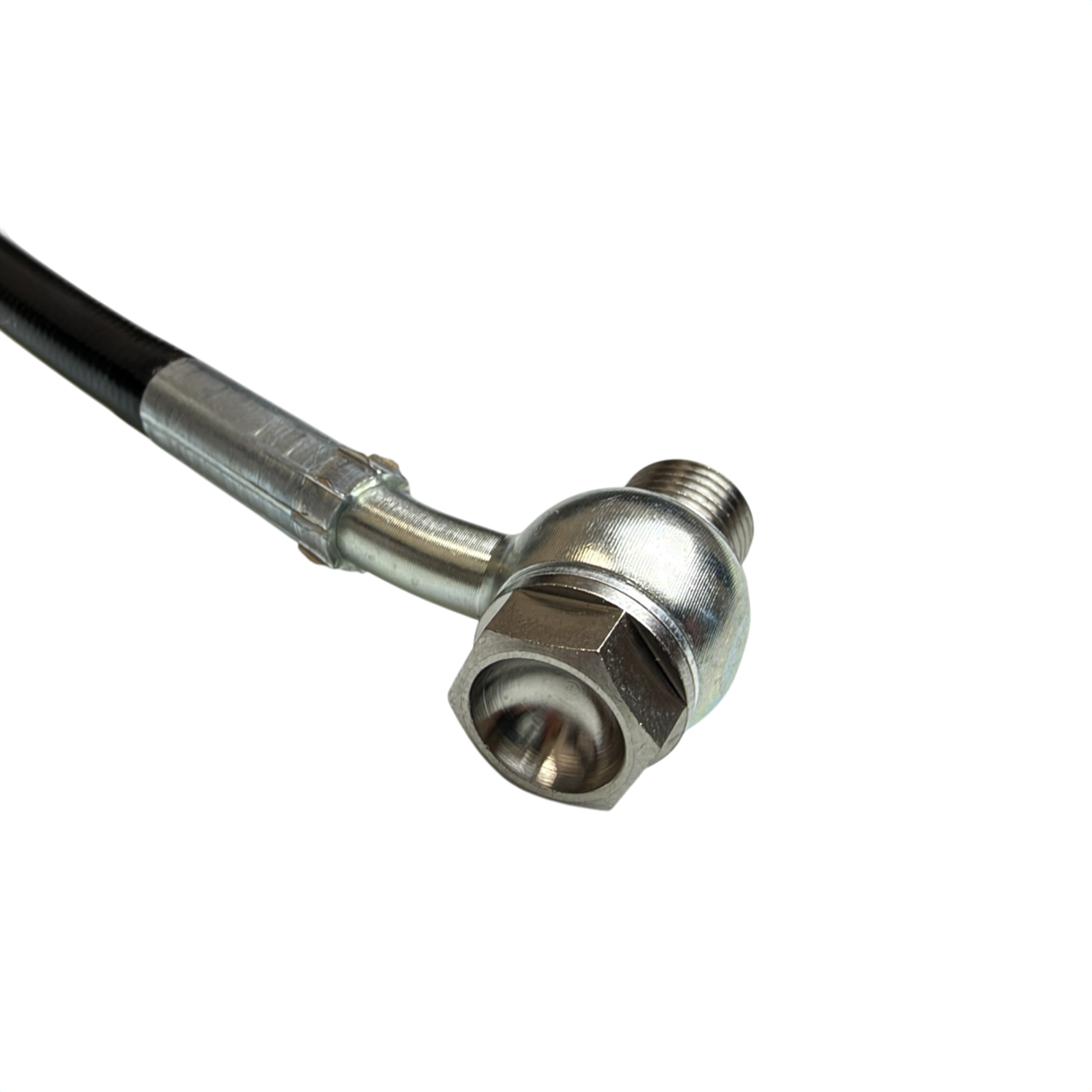

MOCAL USA Banjo Fittings

The hose assembly is terminated with premium MOCAL USA banjo fittings manufactured from high-quality steel with a protective plated finish.

These fittings were selected to complement the premium construction of the Aeroquip PTFE hose and provide a strong, reliable connection at each end of the VANOS oil supply line.

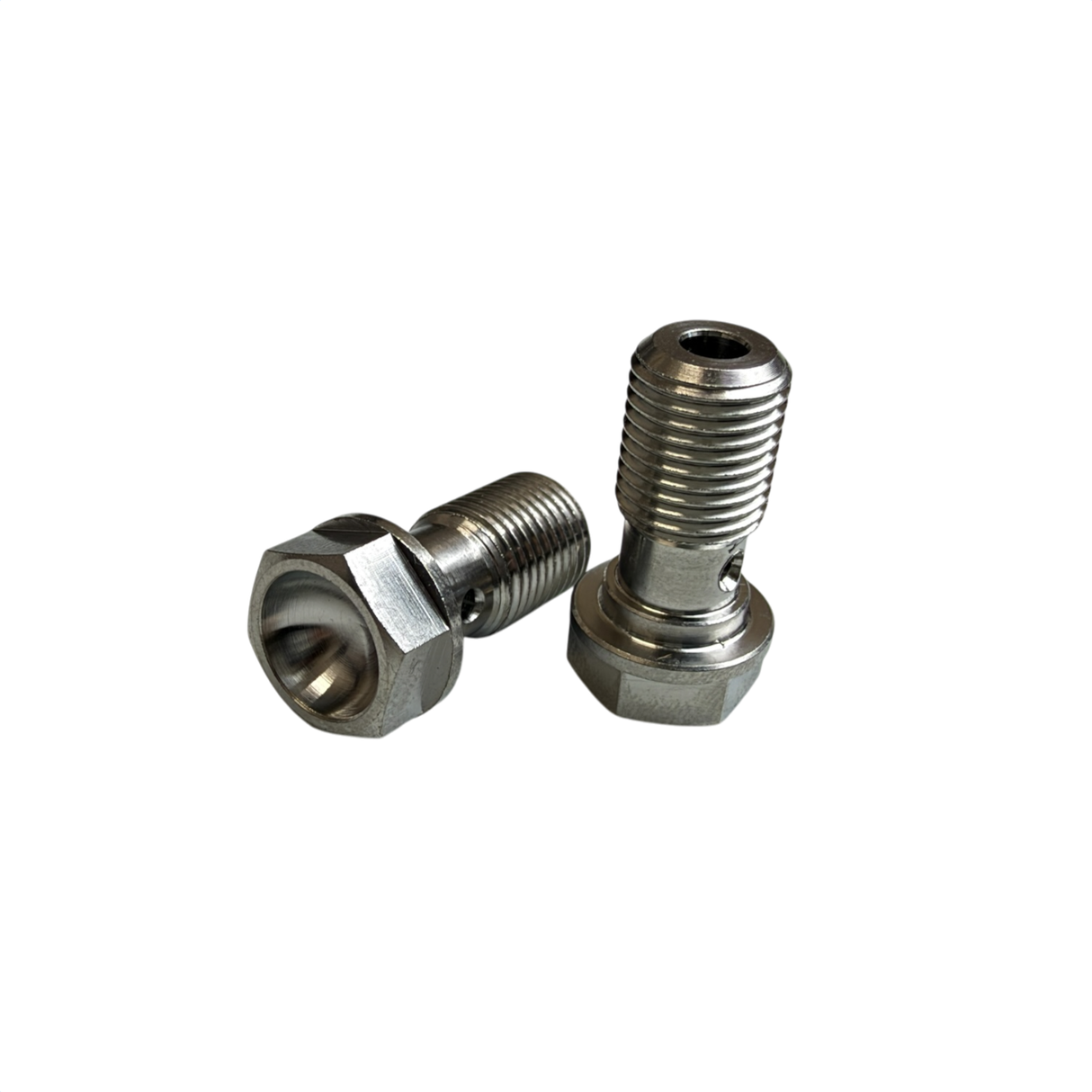

Custom Aerospace-Grade Titanium Banjo Bolts

We didn't stop at upgrading the hose.

Each kit includes two custom-machined, aerospace-grade titanium banjo bolts featuring a specialized two-oval-hole oil passage design. These bolts were specifically selected to complement the upgraded line while providing an exceptionally strong, lightweight, and corrosion-resistant replacement for the original hardware.

Applicable new crush washers are also included, giving you a complete hardware package for installation.

Features

• Premium Aeroquip smooth-bore PTFE racing hose
• Stainless-steel braided hose construction
• Operating temperature range of -100°F to +450°F
• Techflex high-temperature fire sleeve
• Fire sleeve rated for continuous temperatures up to 500°F
• Premium MOCAL USA plated-steel banjo fittings
• Two custom aerospace-grade titanium banjo bolts
• Specialized two-oval-hole banjo bolt design
• New applicable crush washers included
• Excellent resistance to heat, abrasion, oil, and environmental damage
• Designed specifically for the BMW S54 VANOS system
• Direct upgrade for the factory VANOS oil supply line
• Backed by a 100% Lifetime Guarantee against component failure

BMW S54 Fitment Guide

Fits BMW models equipped with the S54B32 engine, including:

• 2001–2006 BMW E46 M3
• 2001–2002 BMW Z3 M Roadster
• 2001–2002 BMW Z3 M Coupe
• 2006–2008 BMW E85 Z4 M Roadster
• 2006–2008 BMW E86 Z4 M Coupe

Engine Fitment: BMW S54B32

Replaces BMW Part Number

11367837614

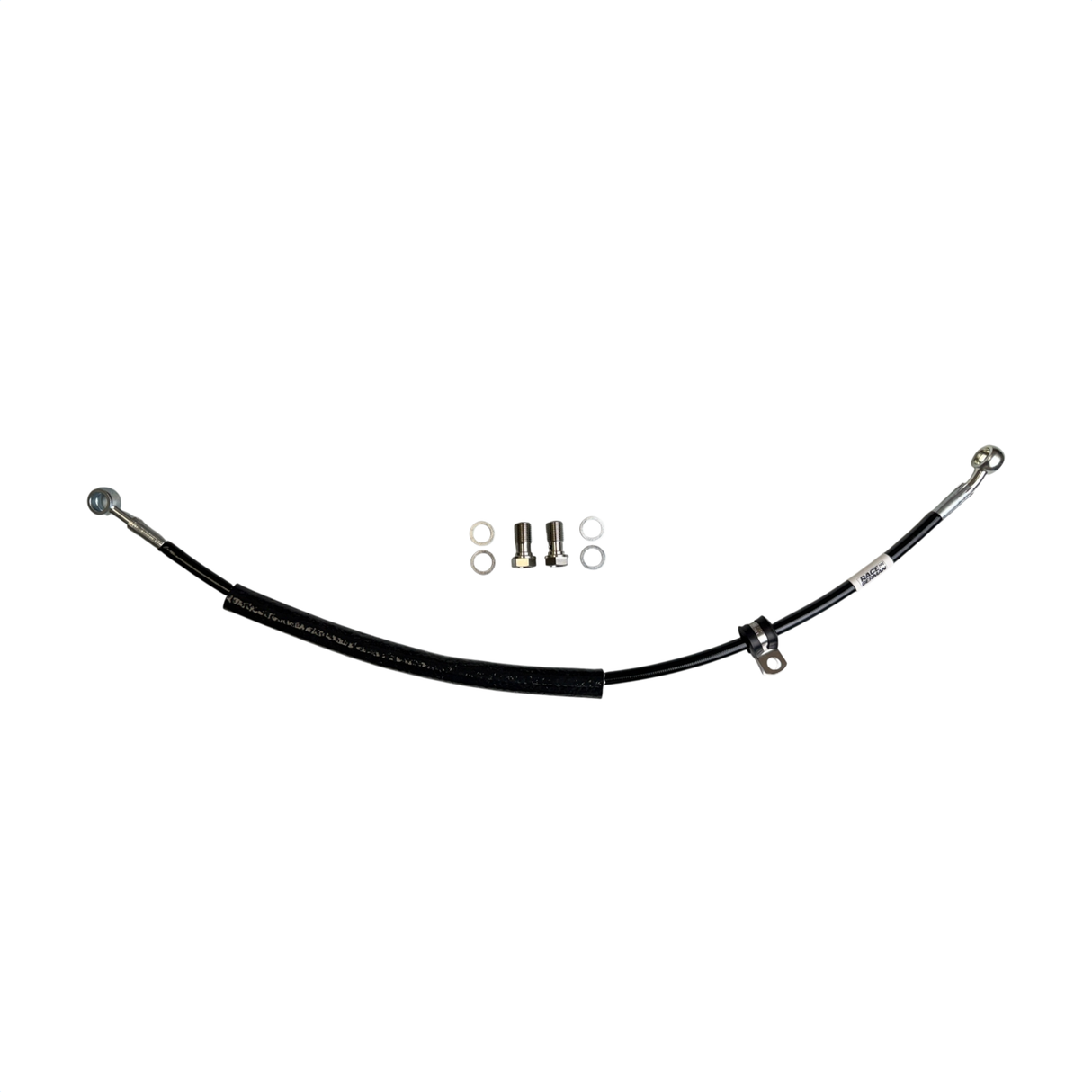

Kit Includes

• 1 Race German S54 Aeroquip PTFE stainless-braided VANOS oil supply line
• 1 Techflex high-temperature protective fire sleeve
• 2 MOCAL USA plated-steel banjo hose ends
• 2 Custom two-oval-hole banjo bolts machined from aerospace-grade titanium
• Applicable crush washers

Built to Be the Last S54 VANOS Oil Line You'll Need

The S54 VANOS system isn't an area where we believe in cutting corners. We selected premium components throughout this assembly, from the Aeroquip PTFE racing hose and Techflex fire sleeve to the MOCAL USA fittings and custom titanium hardware.

The result is what we believe to be the highest-quality upgraded S54 VANOS oil supply line on the market.

To stand behind that claim, every Race German Upgraded S54 VANOS Oil Supply Line is backed by our 100% Lifetime Guarantee against component failure.
