S54 Camshaft & VANOS Timing Tool Kit

BMW S54 Camshaft Timing Tool Kit — E46 M3, Z3 M & Z4 M

Proper camshaft timing is critical when servicing the high-performance BMW S54 engine. This complete S54 Camshaft Timing Tool Kit includes the specialty tools needed to check, set, and properly align camshaft timing when removing or installing the VANOS adjustment unit.

Designed specifically for the S54B32 3.2L 24-valve inline-six, this kit is ideal for VANOS rebuilds, camshaft service, cylinder head repairs, timing work, and other repairs that require the S54 camshafts and crankshaft to be accurately positioned.

Kit Includes

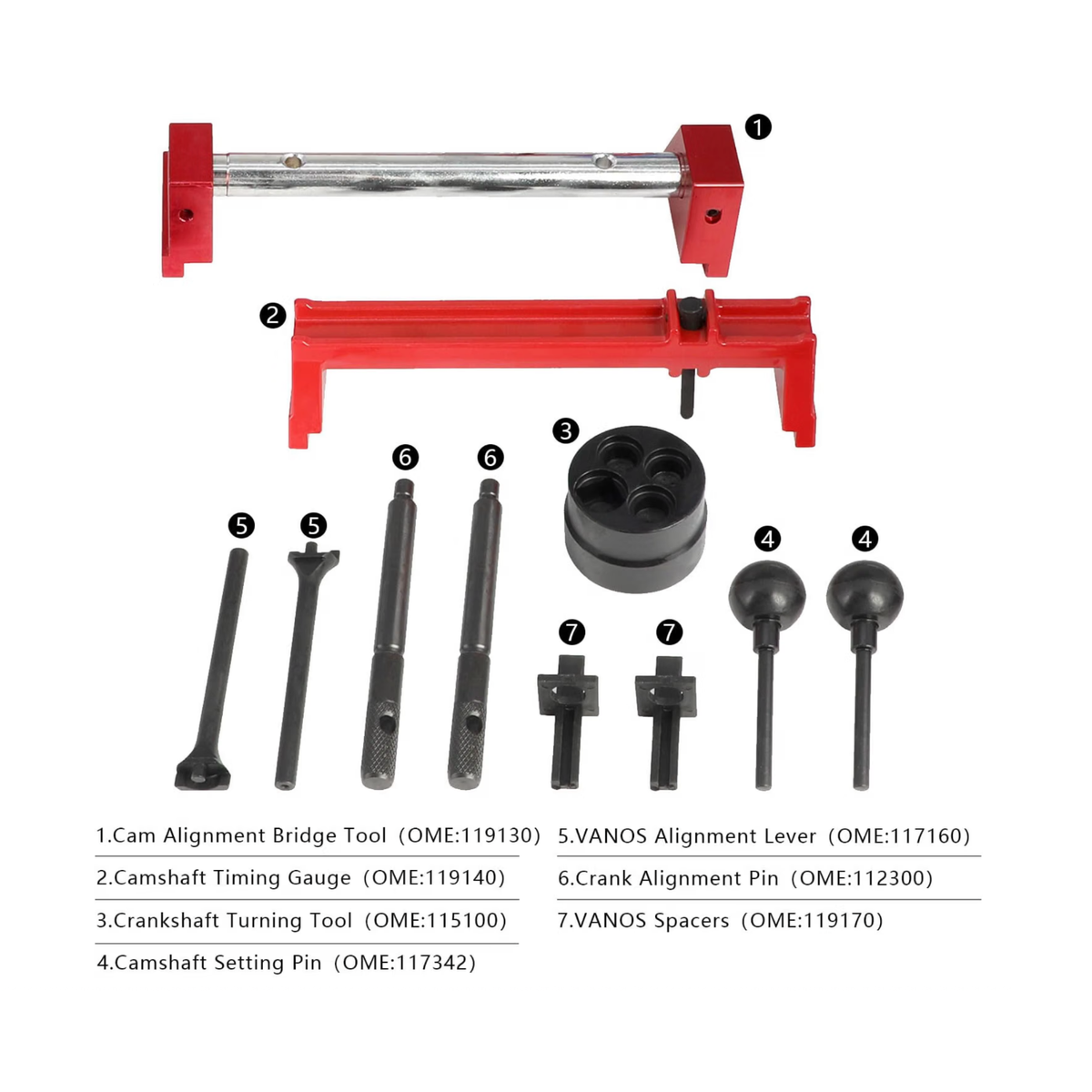

• Camshaft Alignment Bridge Tool
• Camshaft Timing Gauge
• Crankshaft Turning Tool
• Camshaft Setting Pin

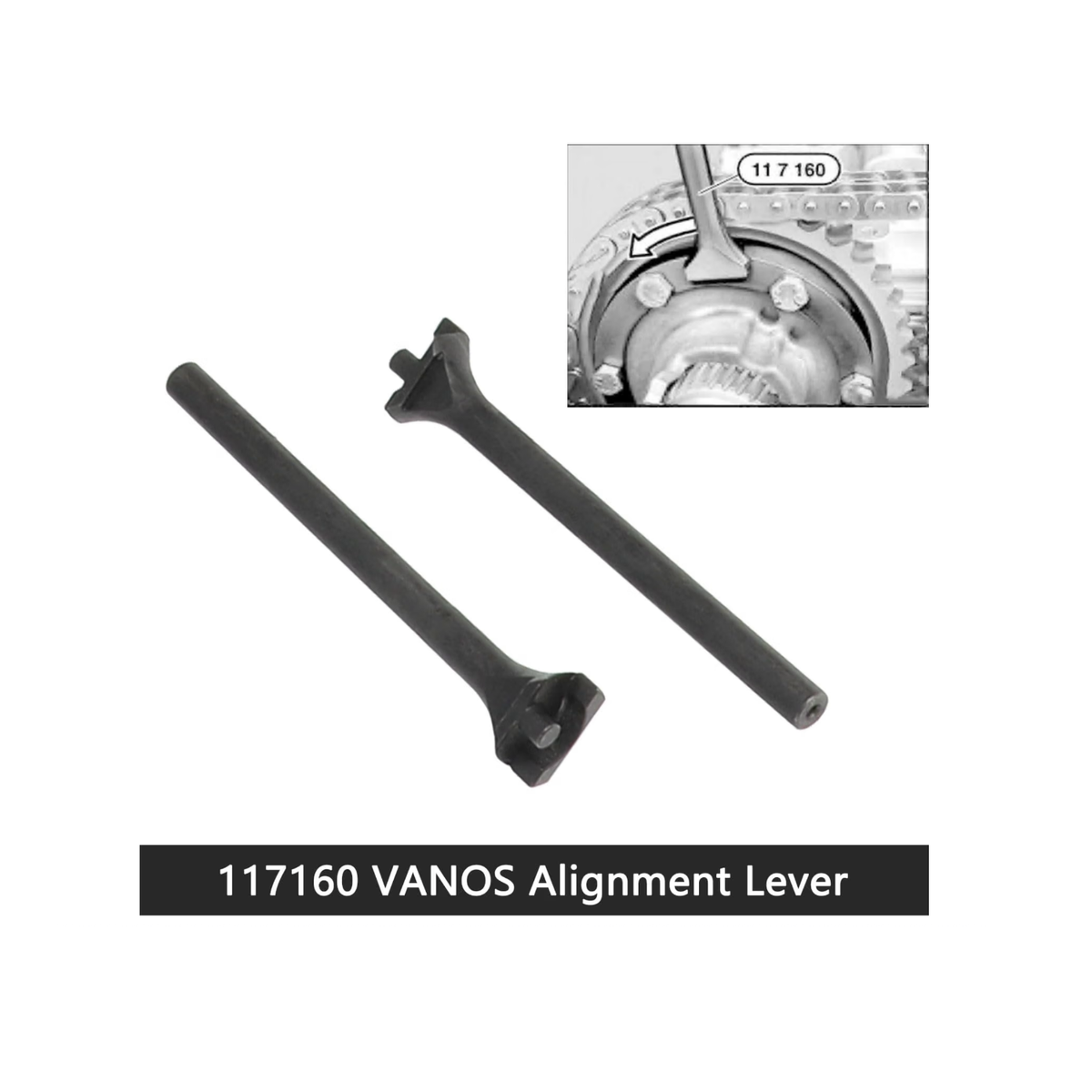

• VANOS Alignment Lever

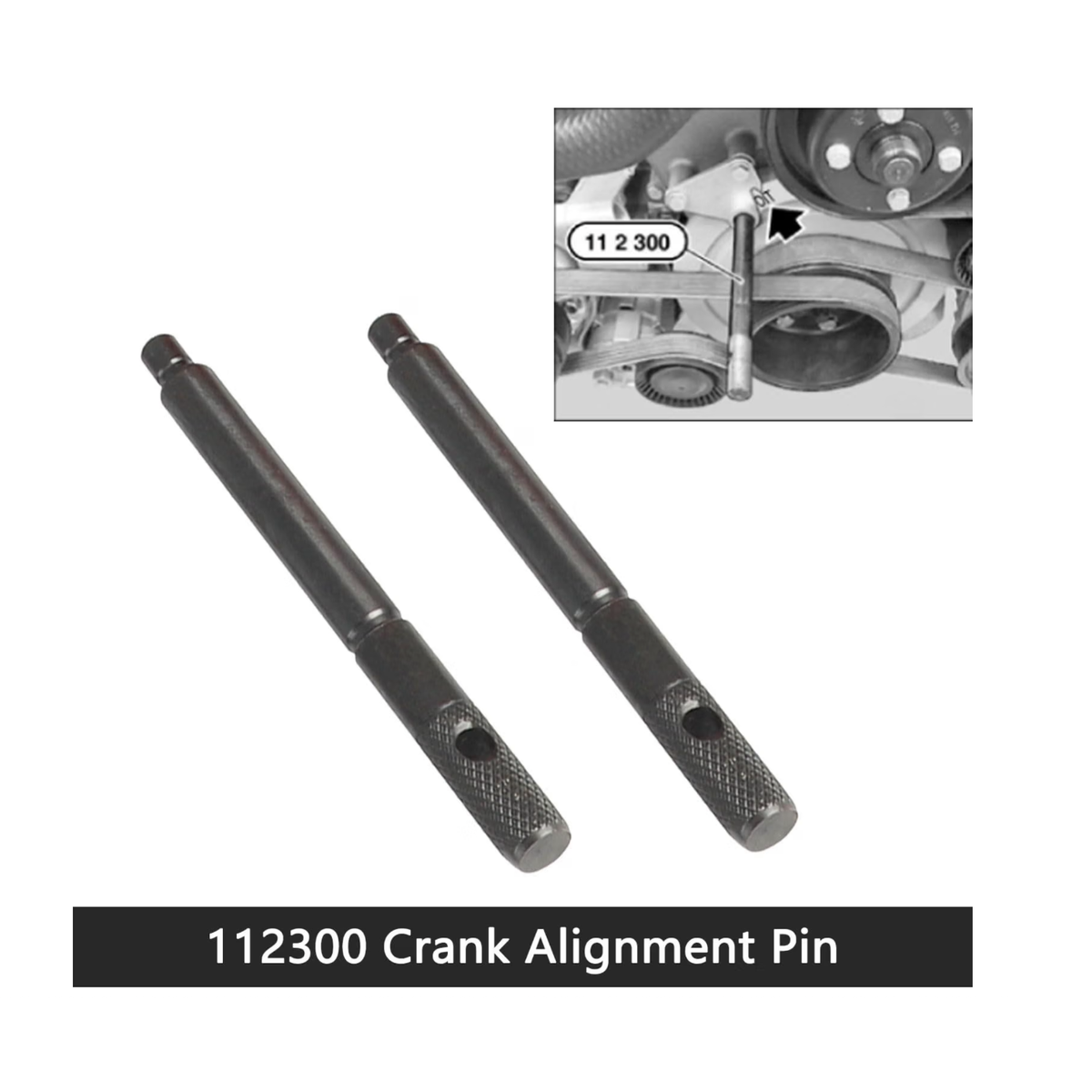

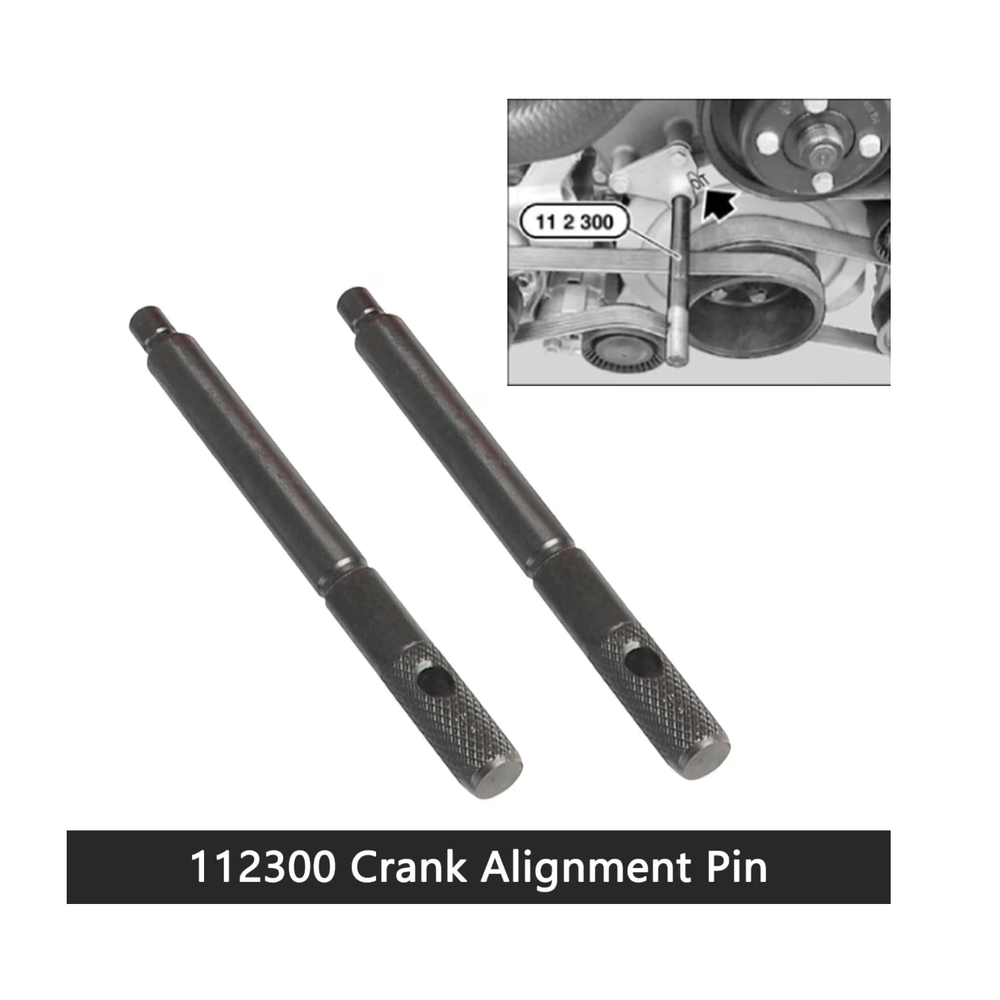

• Crankshaft Alignment Pin
• VANOS Spacers

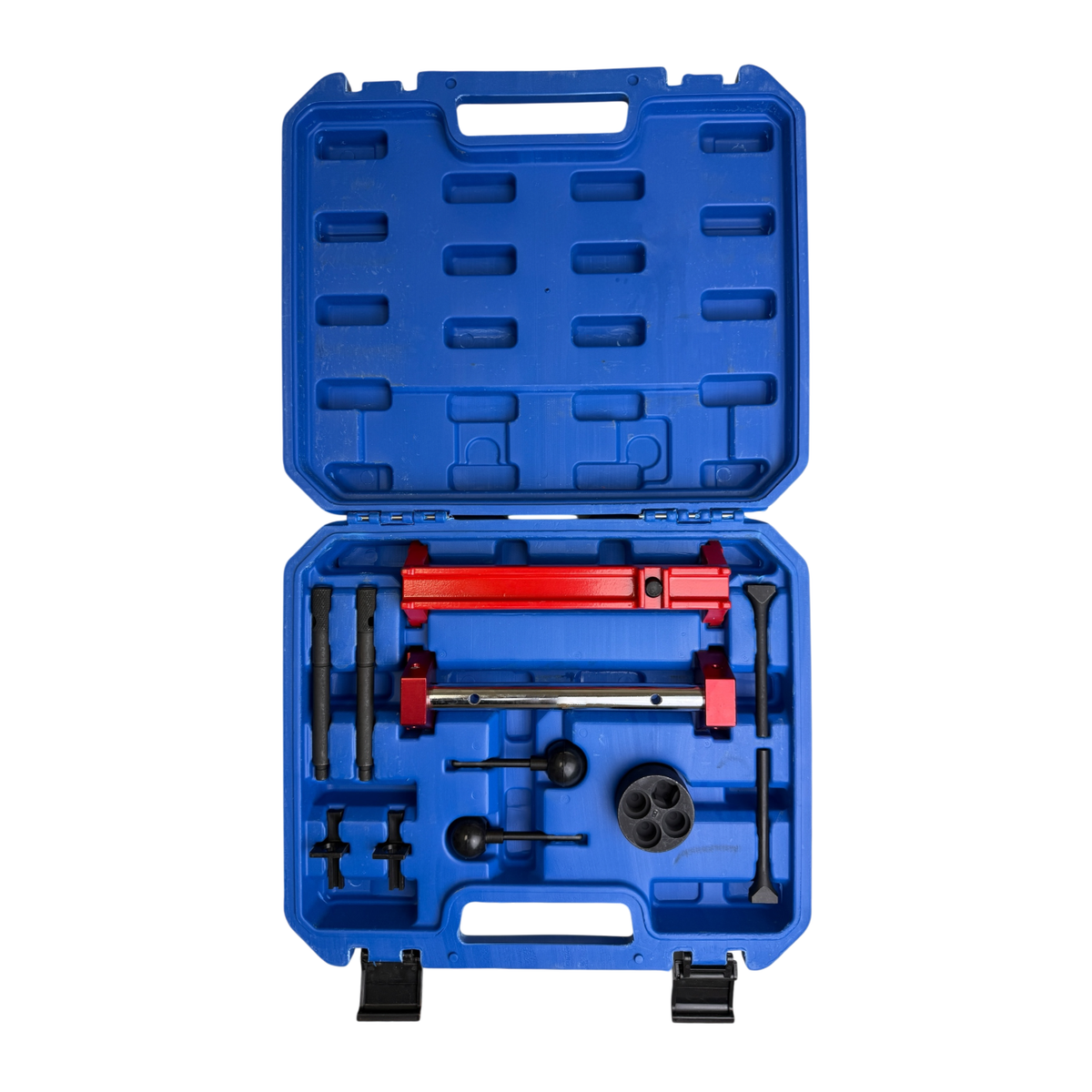

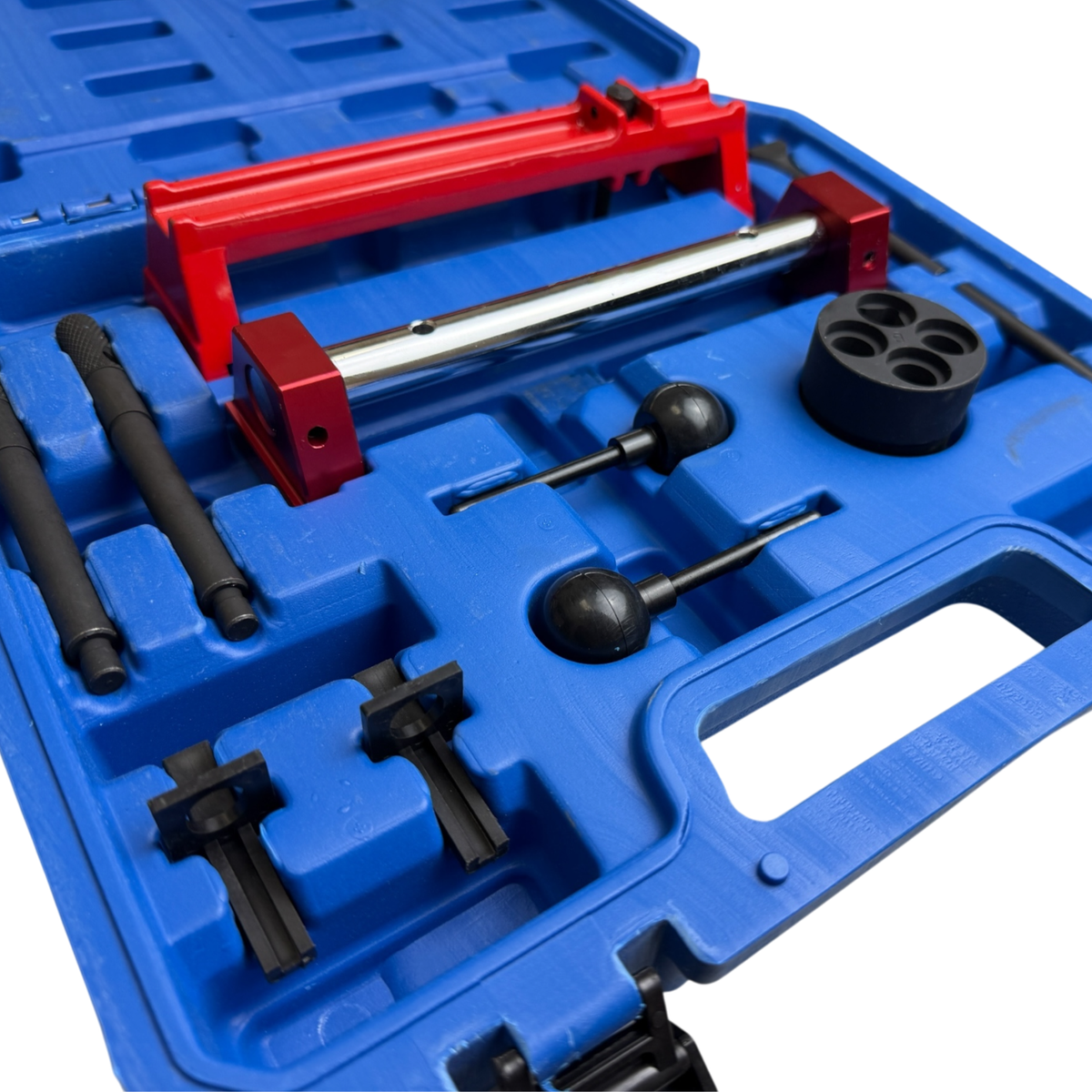

• Portable Carrying Case

OEM Equivalent Tool Numbers

Designed to perform the functions of BMW specialty tools:

11 9 140 • 11 9 130 • 11 7 342 • 11 7 160 • 11 2 300 • 11 9 170 • 11 5 100

Built for S54 Service

The individual tools are manufactured from durable metal components designed to withstand repeated engine service. The included fixtures allow the crankshaft and camshafts to be correctly positioned while setting the engine timing and installing the S54 VANOS unit.

Having the proper timing tools is especially important when performing an S54 VANOS rebuild, as incorrect camshaft timing can result in poor engine operation, fault codes, reduced performance, or engine damage.

BMW S54 Fitment Guide

Engine Compatibility

S54B32 3.2L Inline-Six

Also compatible with the higher-output S54B32HP used in the E46 M3 CSL.

Important Fitment Note

Earlier Z3 M Roadster and Z3 M Coupe models were equipped with S50 or S52 engines depending on market. This timing tool kit is intended specifically for the later S54-powered Z3 M models.

The Right Tools for S54 VANOS & Timing Service

The S54's Dual VANOS system requires accurate camshaft and crankshaft positioning during installation. Rather than attempting to perform the job without the correct fixtures, this complete kit provides the specialty tools needed to properly lock, align, check, and set S54 camshaft timing during VANOS and engine service.

A must-have tool kit for anyone performing a BMW S54 VANOS rebuild or camshaft timing service.
