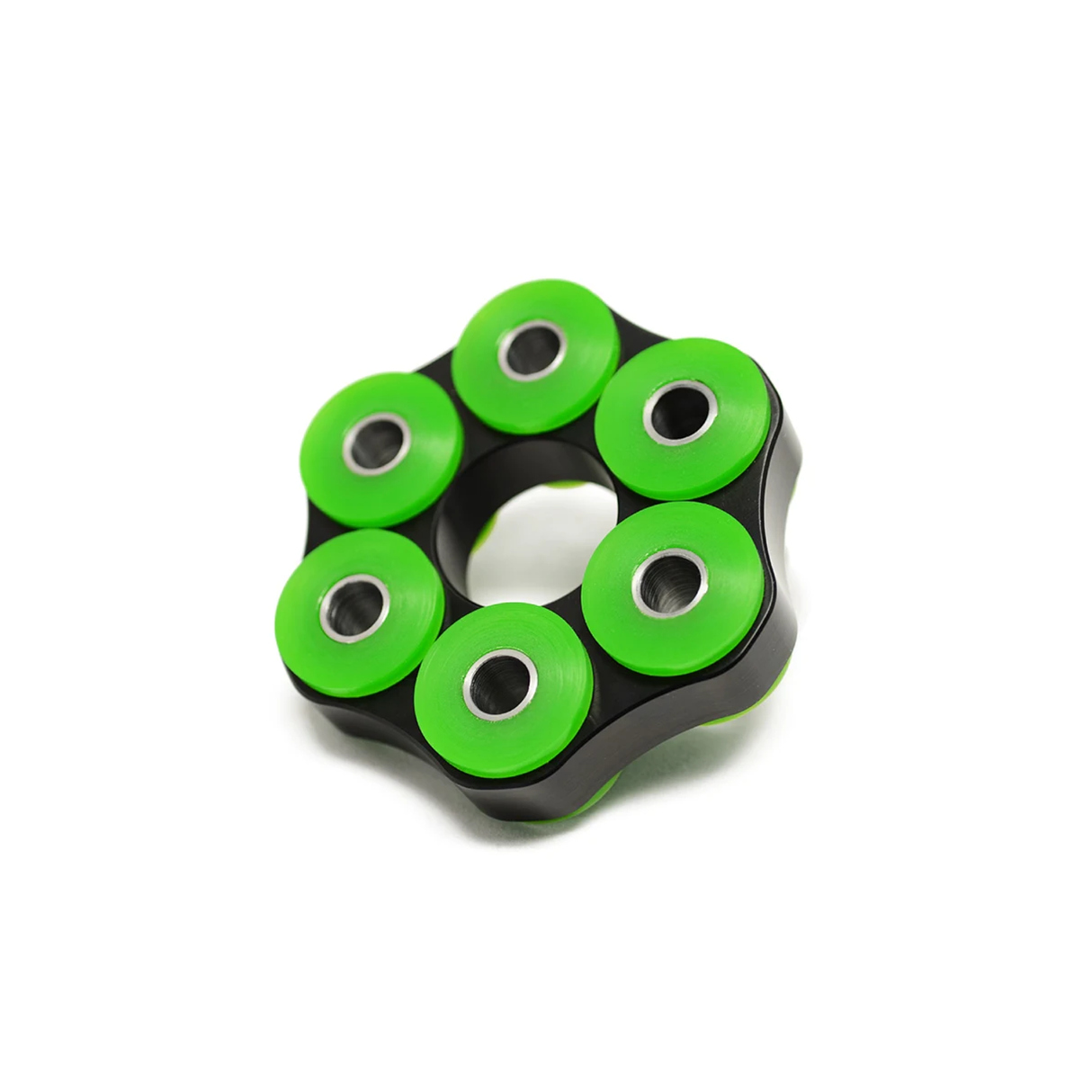

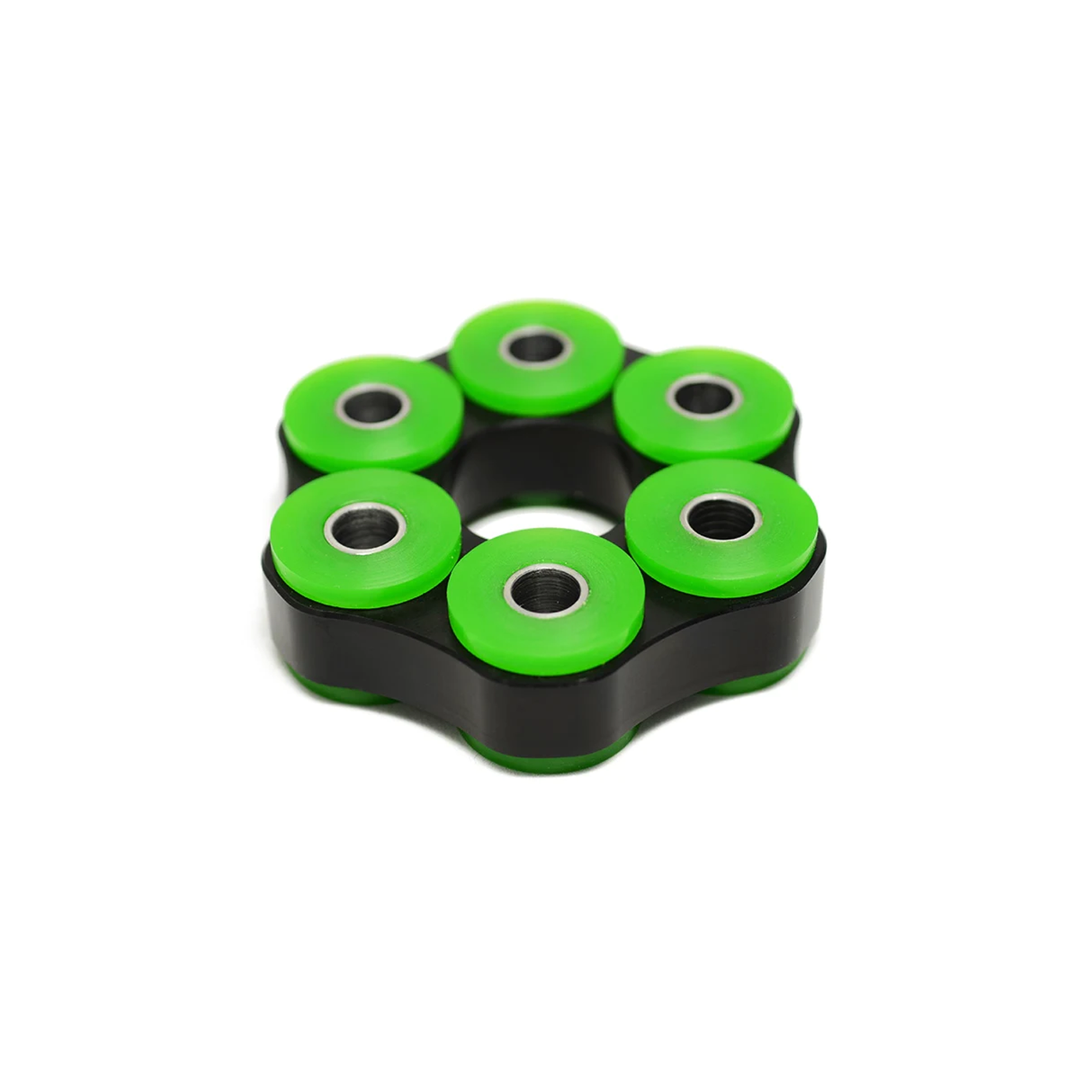

Revshift Race Giubo (78mm/12mm) E36 E46

FOR RACE USE ONLY

This giubo (race flex disc) is the small 78mm with 12mm bolt holes. It is commonly
found on non-M E36 and E46 vehicles with a manual transmission.

The Revshift race flex disc frame is made from 6061 aluminum with type III hard anodizing and utilizes high quality polyurethane bushings to maximize stiffness and
strength while maintaining an appropriate amount of flex.


FOR RACE USE ONLY This part is very rigid and requires precise
installation. The driveline must be properly aligned and all driveline
components must be in good condition and properly balanced. The engine
mounts, trans mounts, differential bushings, and subframe bushings must
all be rigid to prevent driveline movement. We recommend a hardness of
95a or higher for these components. A new center support bearing and
driveshaft centering bushing are also recommended.


Features:
- 6061 aluminum frame with type III hard anodizing
- 95A polyurethane bushings
- Rebuildable using one of our flex disk rebuild kits
