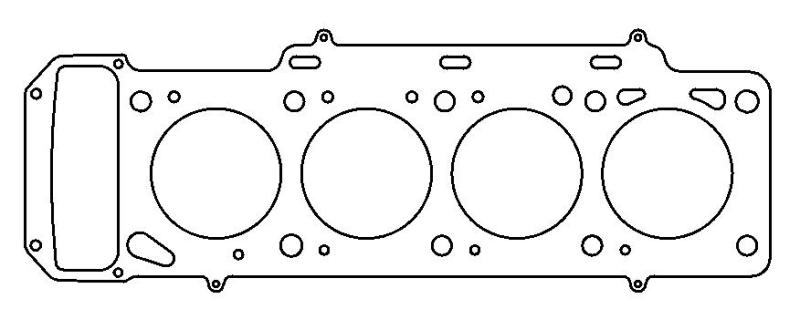

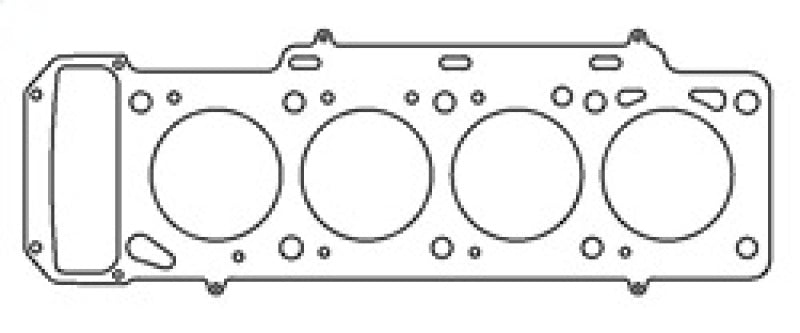

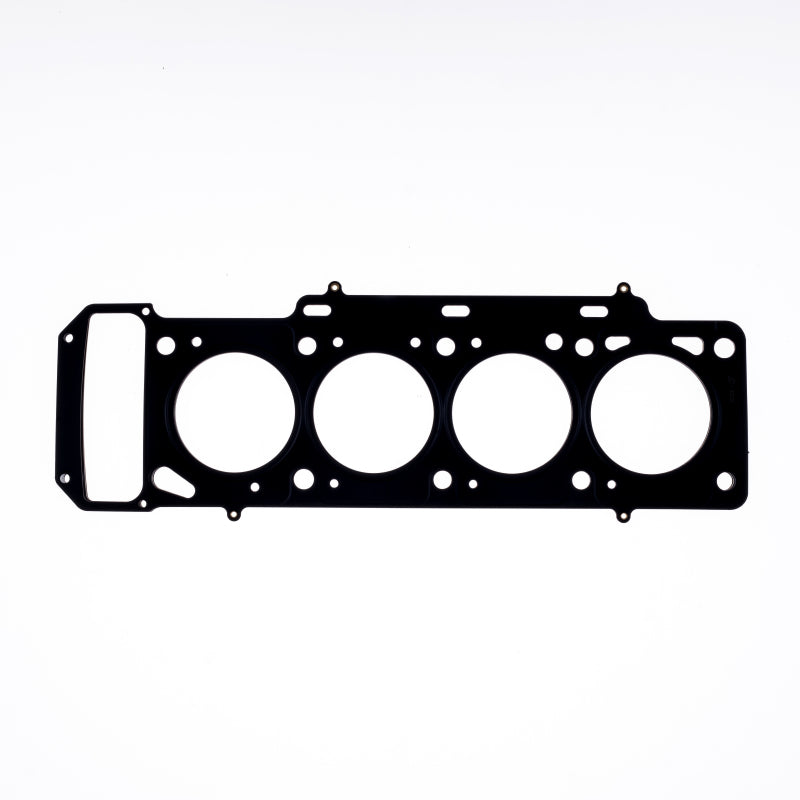

Cometic BMW 1573/1772cc 66-78 86mm .051 inch MLS Head Gasket M10 Engine

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.051". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
1964-1971	BMW	1600	Base
1968-1971	BMW	1600	Cabriolet
1971	BMW	1600	Touring
1966-1971	BMW	1600-2	Base
1966-1968	BMW	1600ti	Base
1967-1971	BMW	1602	Base
1963-1967	BMW	1800	Base
1964-1967	BMW	1800ti	Base
1977-1978	BMW	320i	Base
