CAtuned Airbag System compatible with 2002 1600

 Please Note: CAtuned holds no liablity & by buying this product you accept this as off road or show only product. This is a custom hand built product! Proper installation is required.

Product is in stock and ready to ship!

Based on our popular Performance coilover suspension.

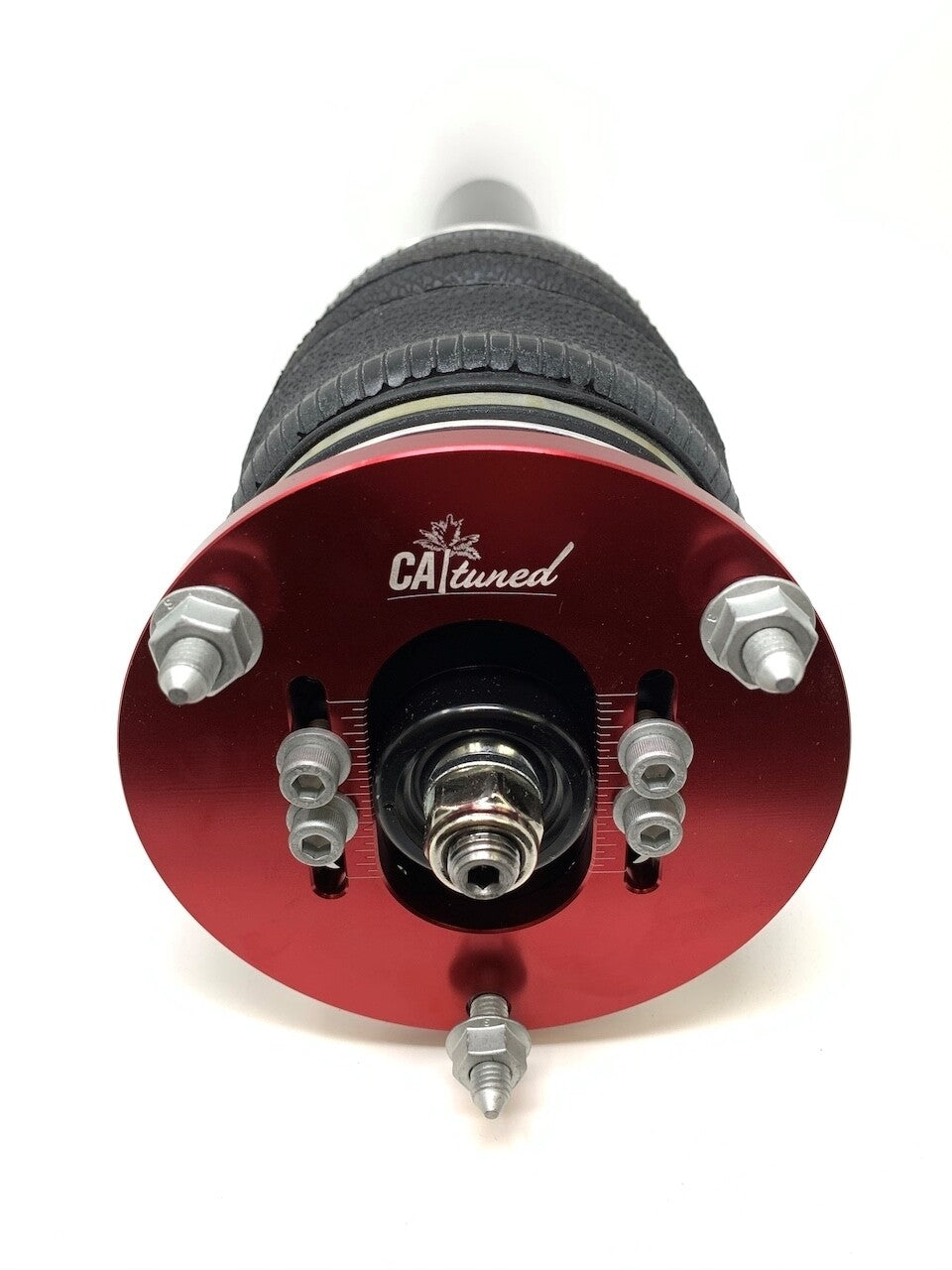

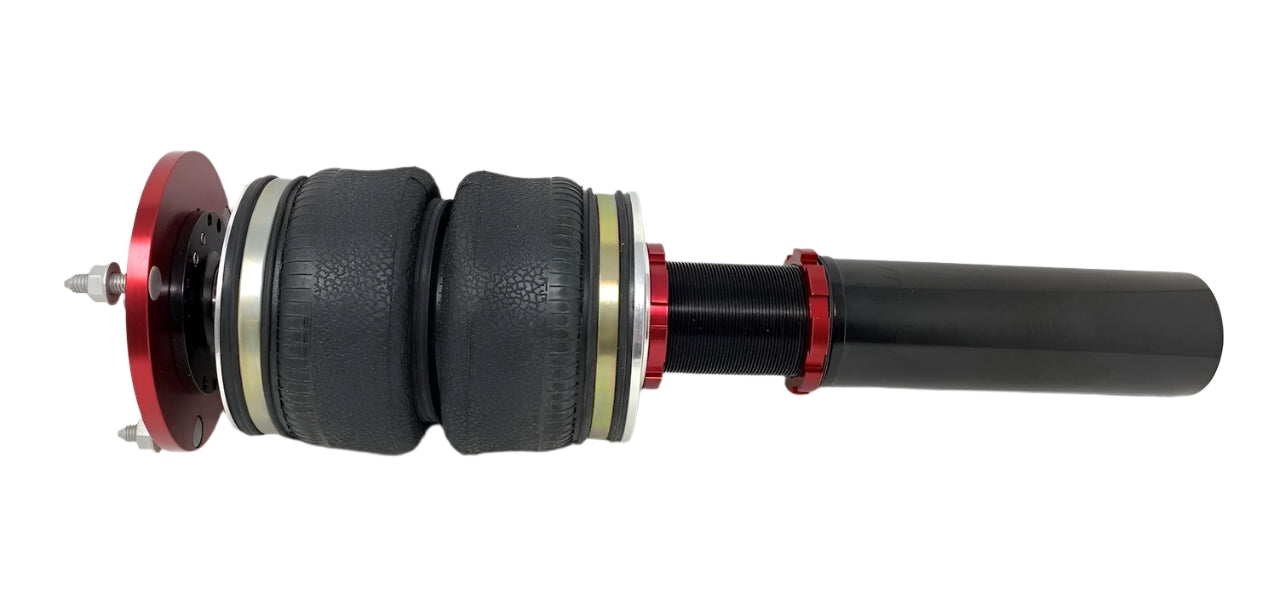

Front: You get 2 front complete struts with air springs attached (bags)

Camber plates are also included

2 Allen keys (knobs) dampening adjusters

*Struts are 30 way dampening adjustable. Full ride height adjustable with struts plus air springs (bags)

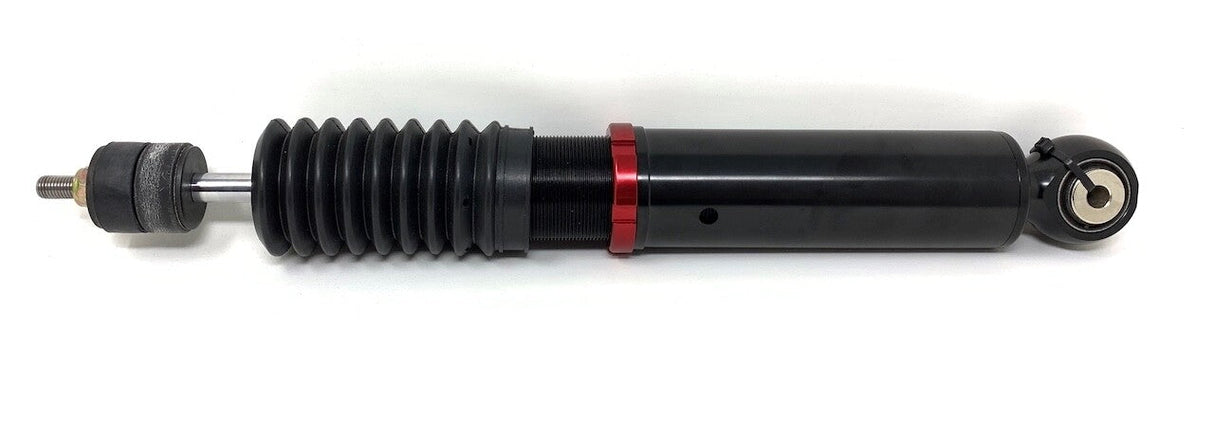

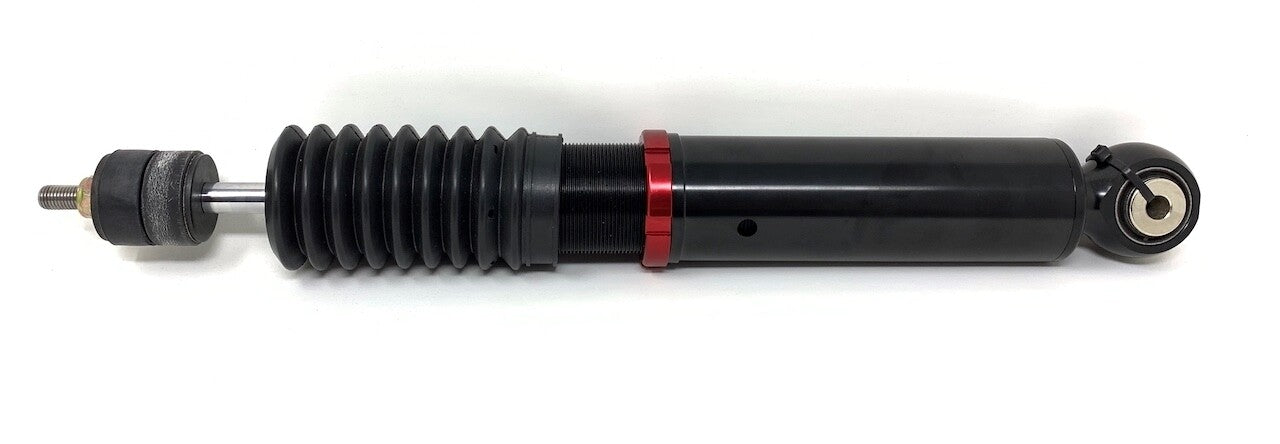

Rear: You get 2 rear complete struts (shocks)

You have to re-use the factory Top hats (Bottom metal sleeves are included)

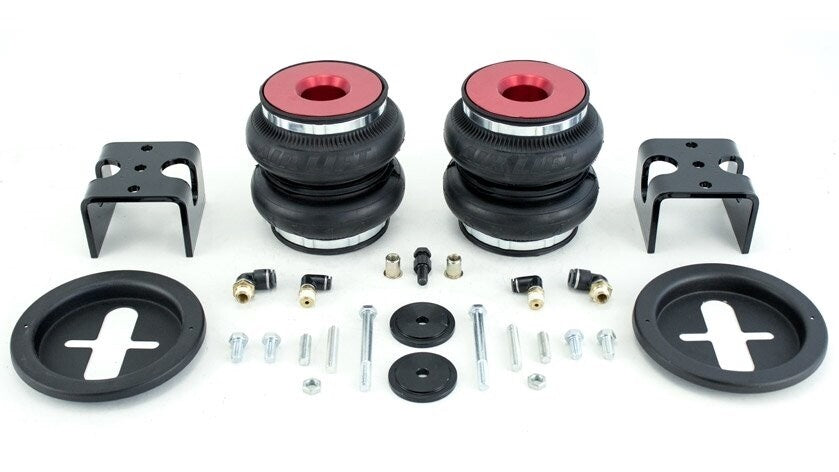

2 air springs (bags) and metal brackets

2 Allen keys (knobs) dampening adjusters

Rear requires the welding of the universal brackets and then bolting the bag up to the brackets. This is a custom setup in the rear. We have done these in house and the system works great. But it is up to you or your tech to do this on your car. We can not accept any returns for welded or tried on kits.

In the kit: You get misc. Fittings, clips and adjustment wrenches. No step by step instructions are included. Everything is setup for 1/4" but could be changed to bigger sized fittings or lines. No air lines included.

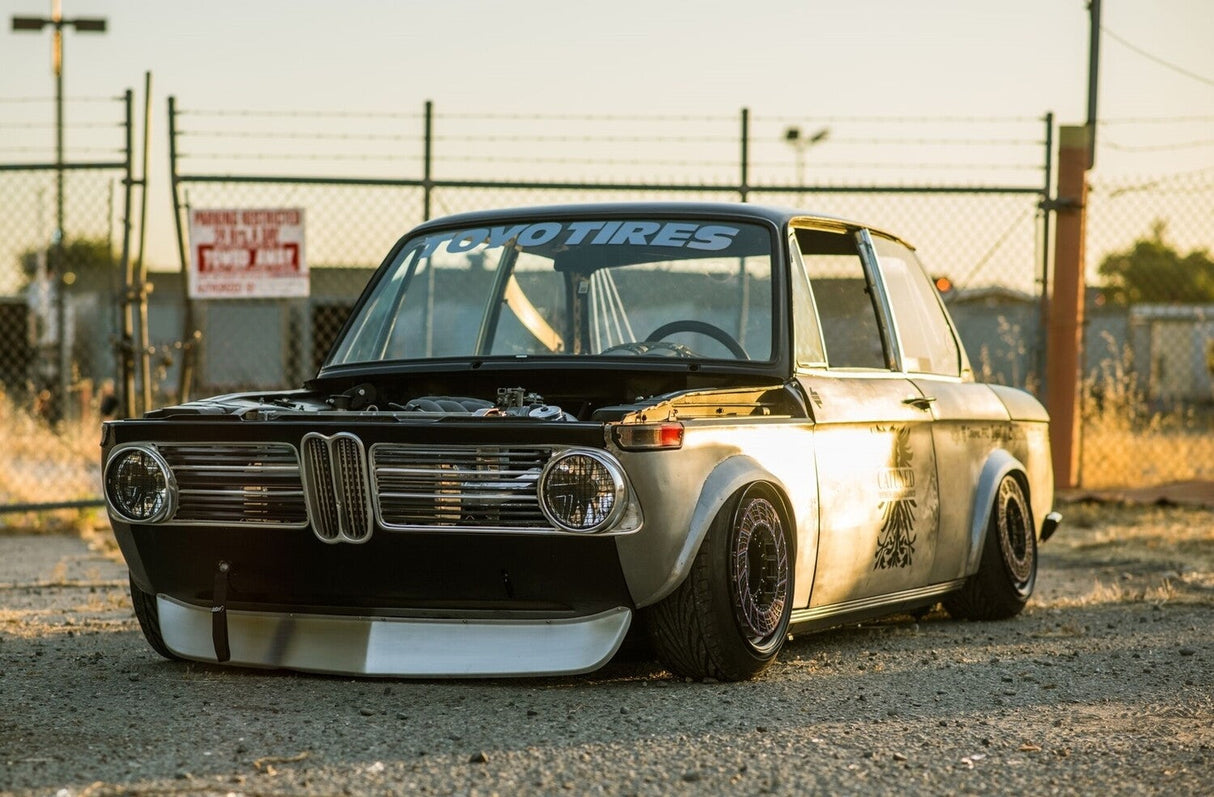

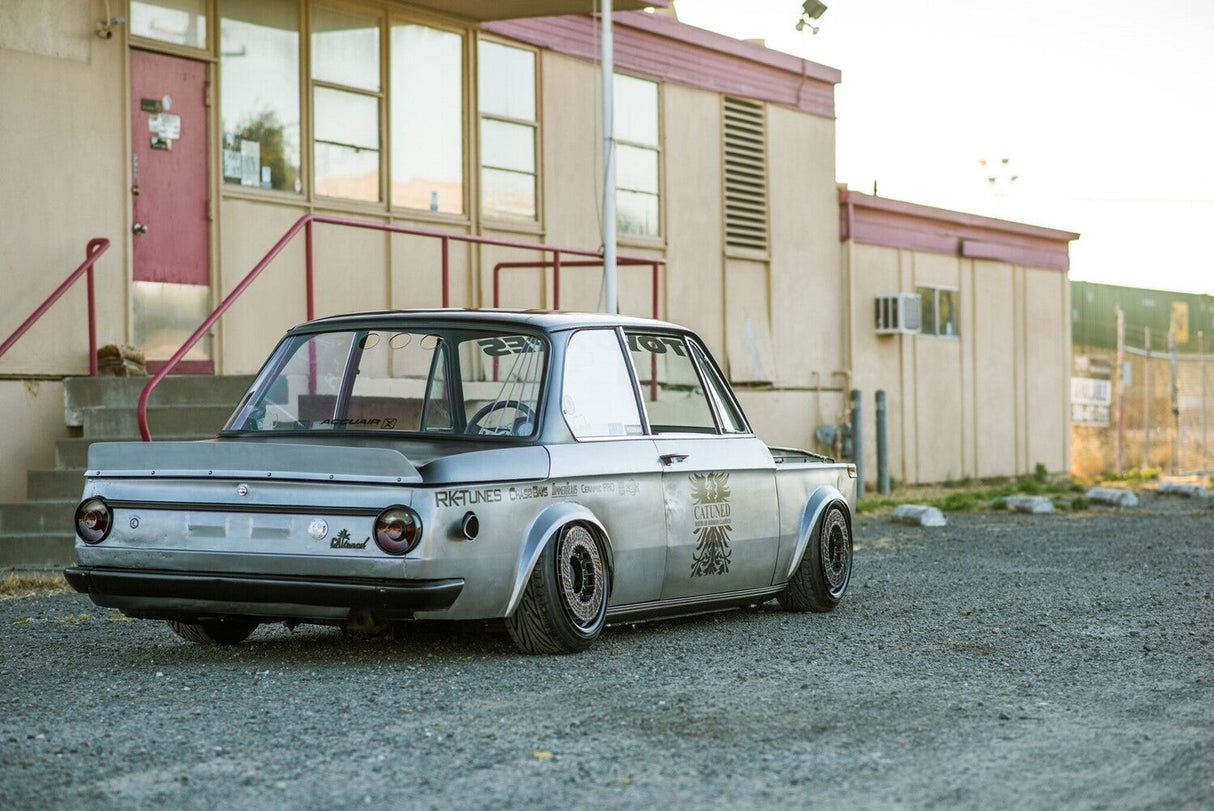

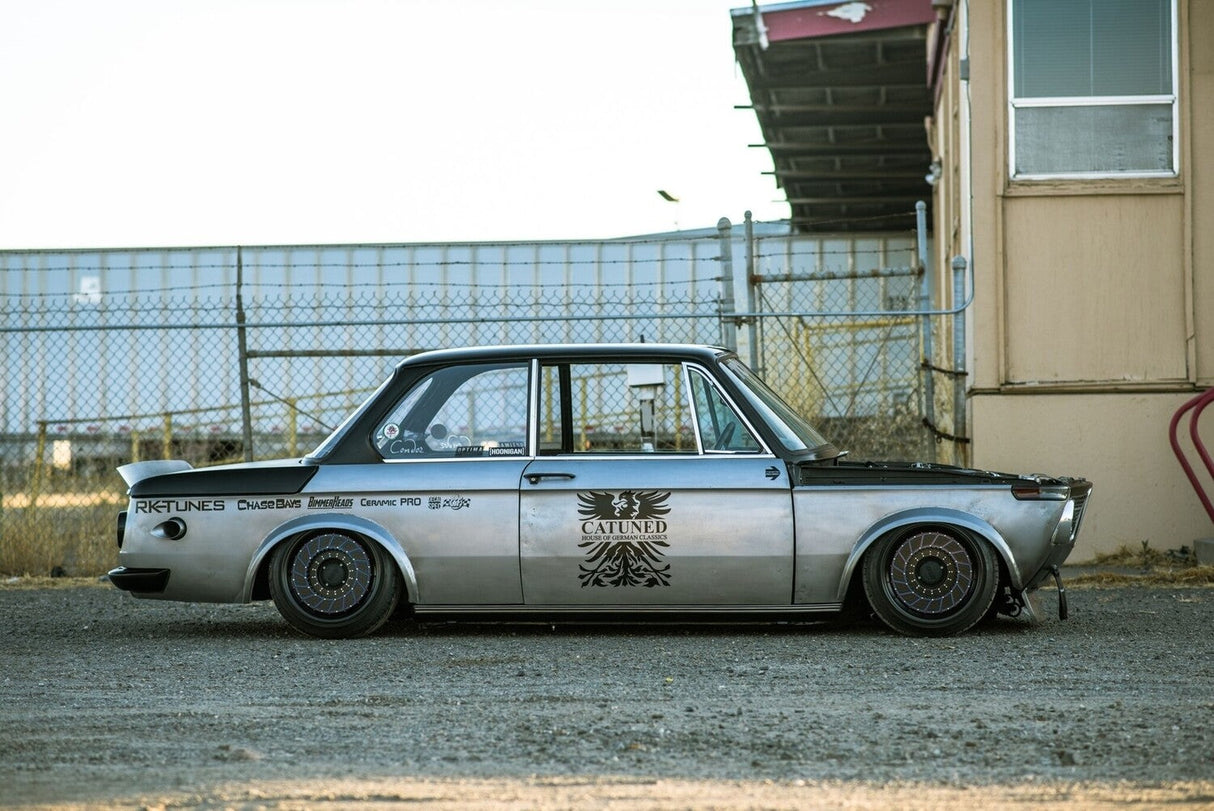

Management is sold separately. As pictured on our Ratrod 2002.

Like most popular Coilovers these units also require to be welded in by a professional or we can weld them in for you. Please select this option. International shipping is extra.
