A/C Solutions BMW E30 Bracket and Hardware Kit

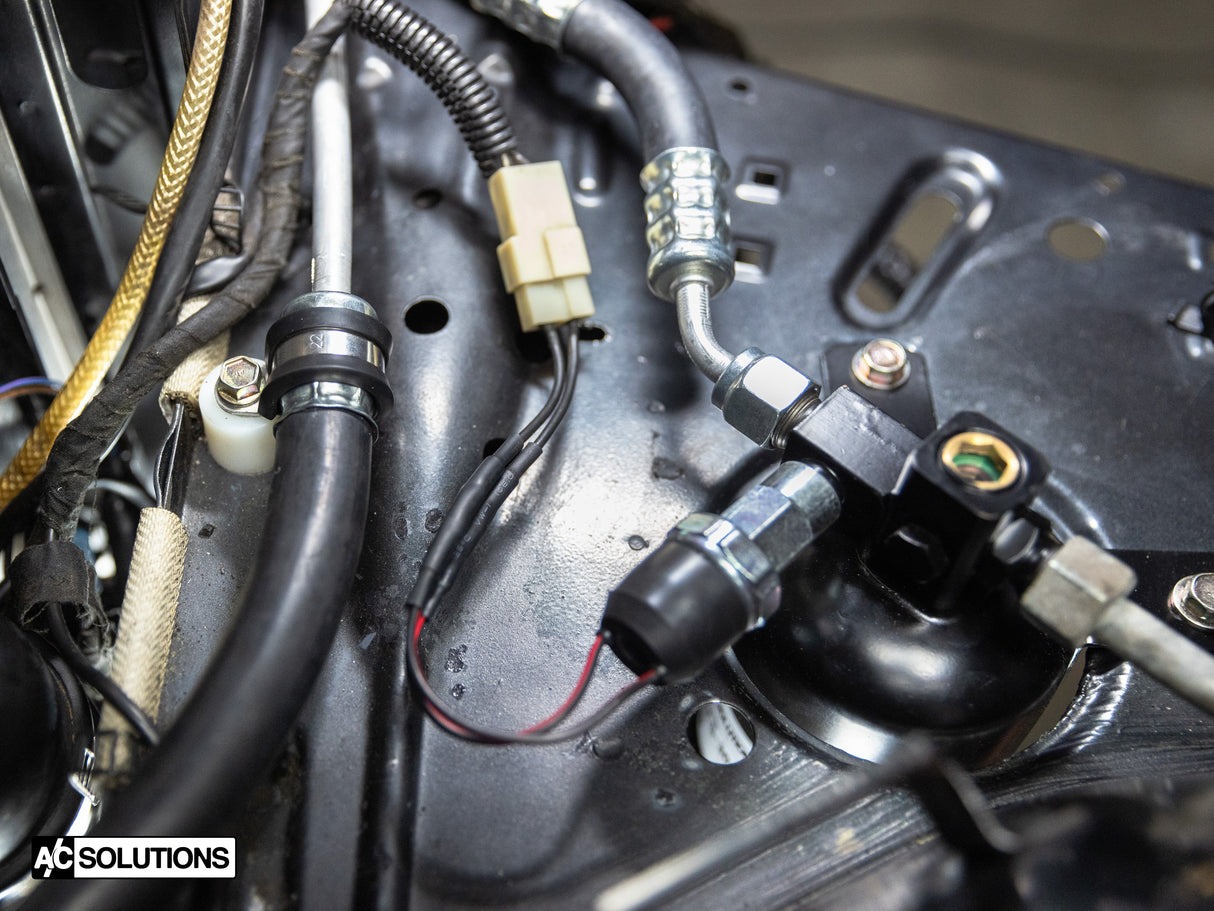

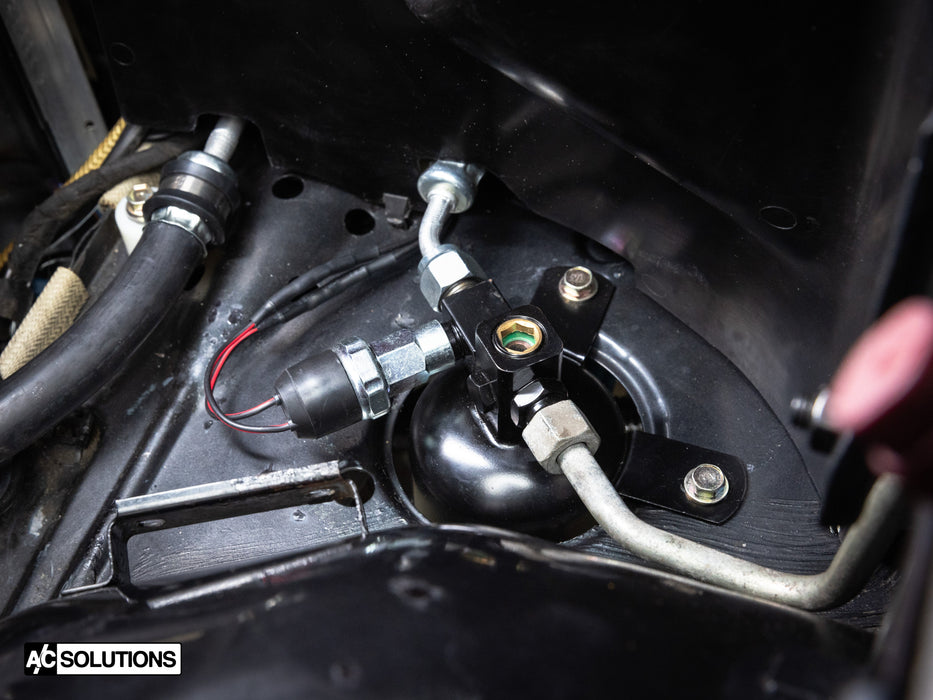

For use on all E30 models, this hardware kit is designed to provide the necessary brackets, bolts, body mounts, and hose clamps to support the A/C lines and filter drier for an OEM-like installation. This is a great kit if you're looking to install our Sanden Conversion Kit into a non-A/C equipped E30 or undergoing light restoration and want to refresh your engine bay.

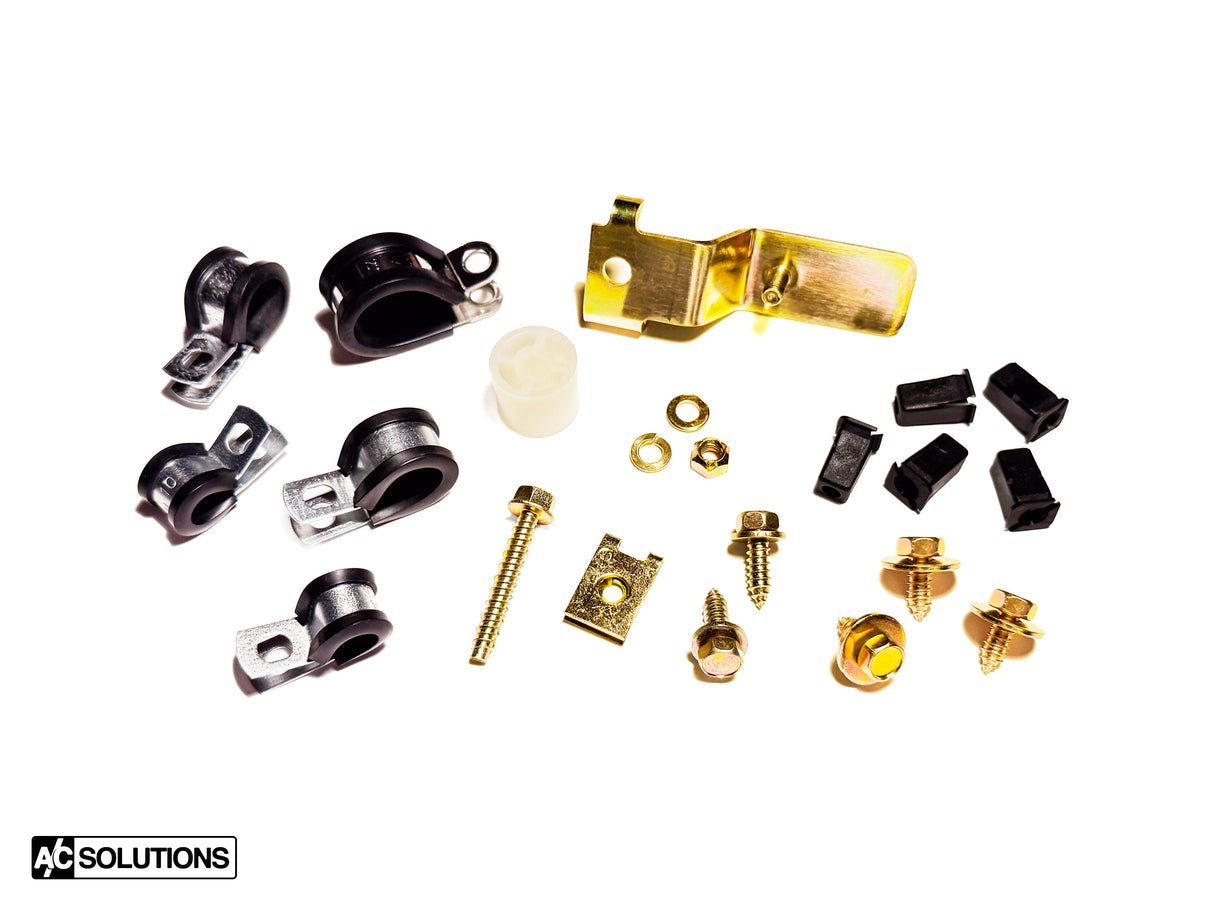

What’s in the box?

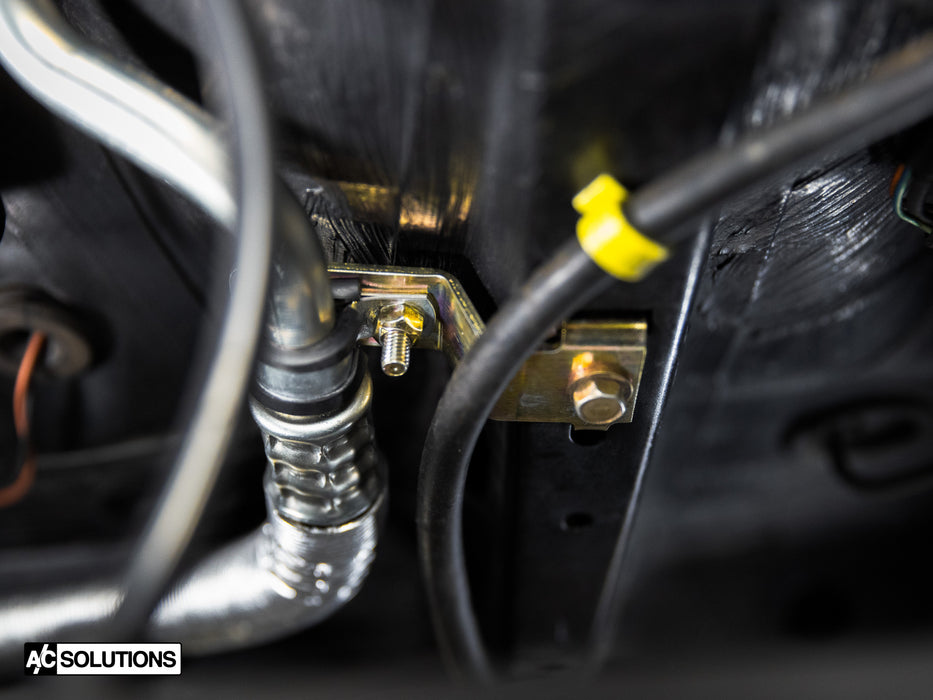

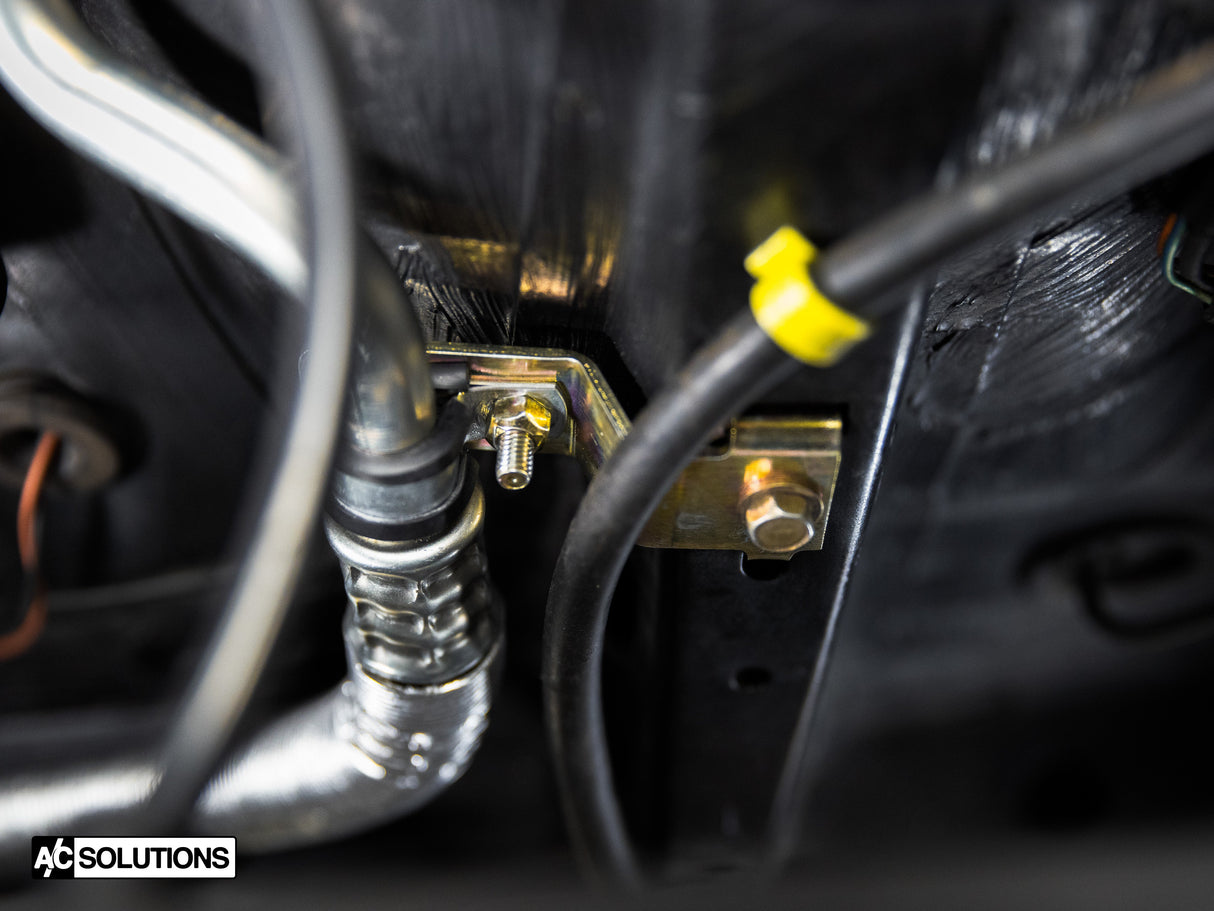

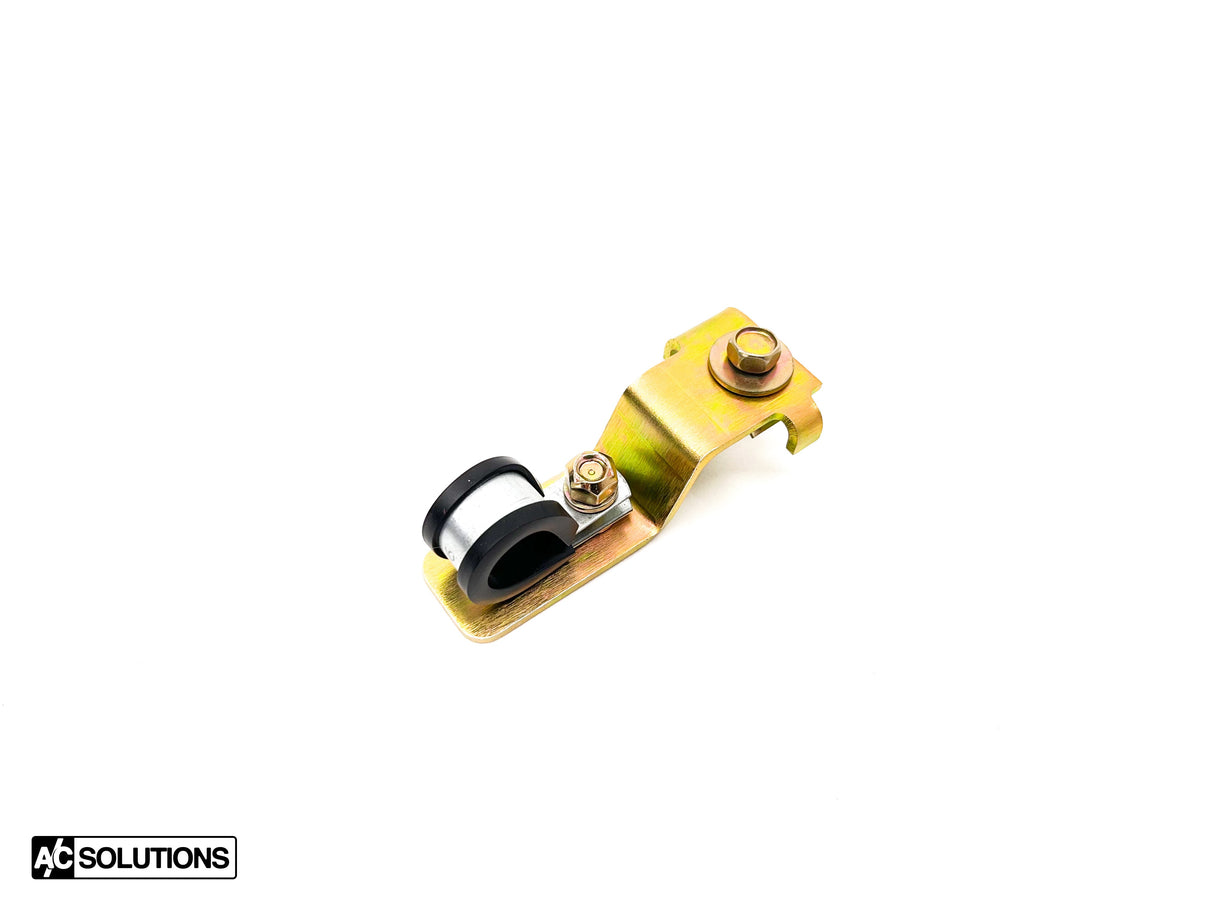

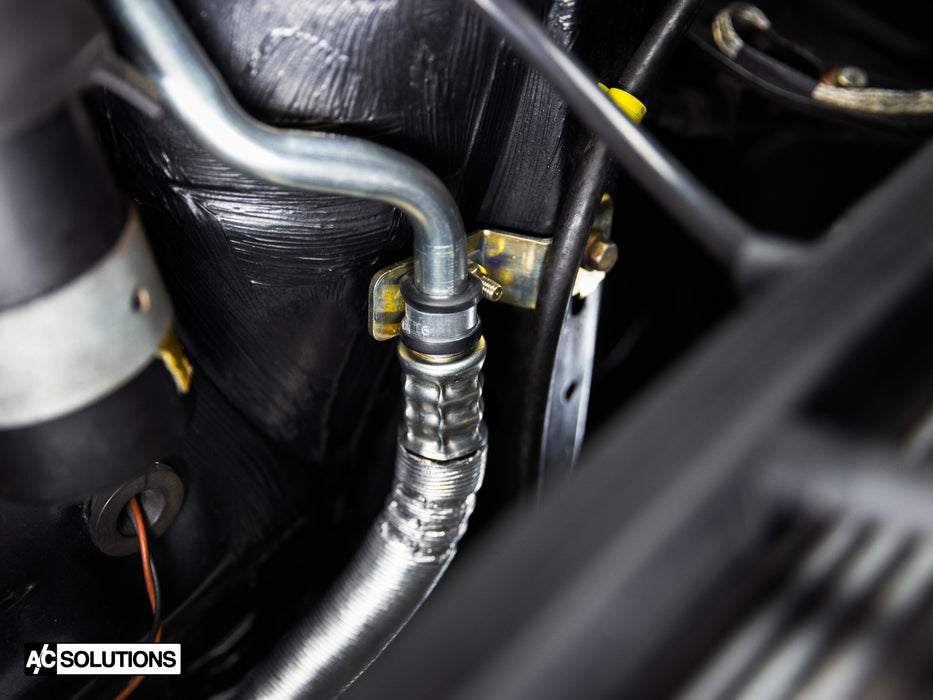

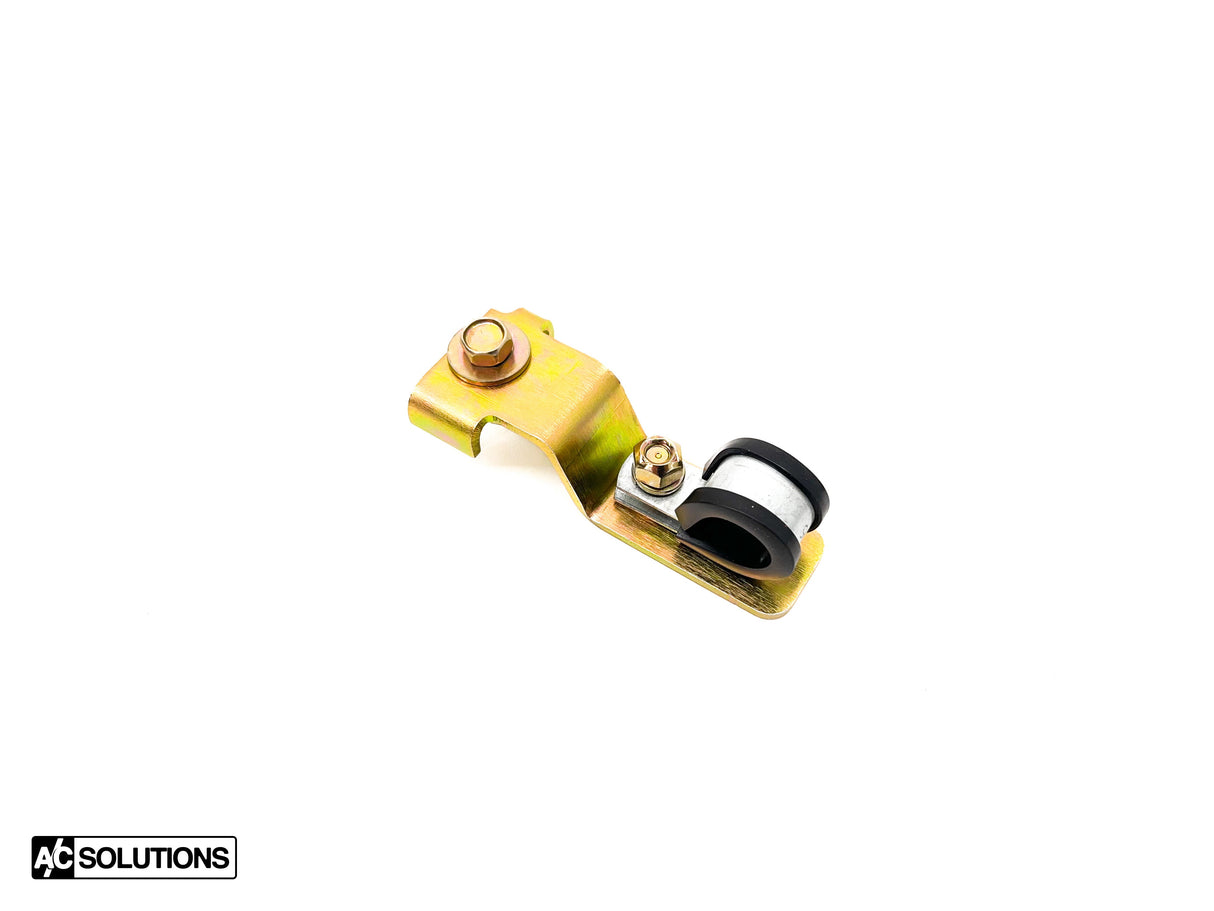

• A/C Solutions hose bracket holder (low-pressure line) (#1)

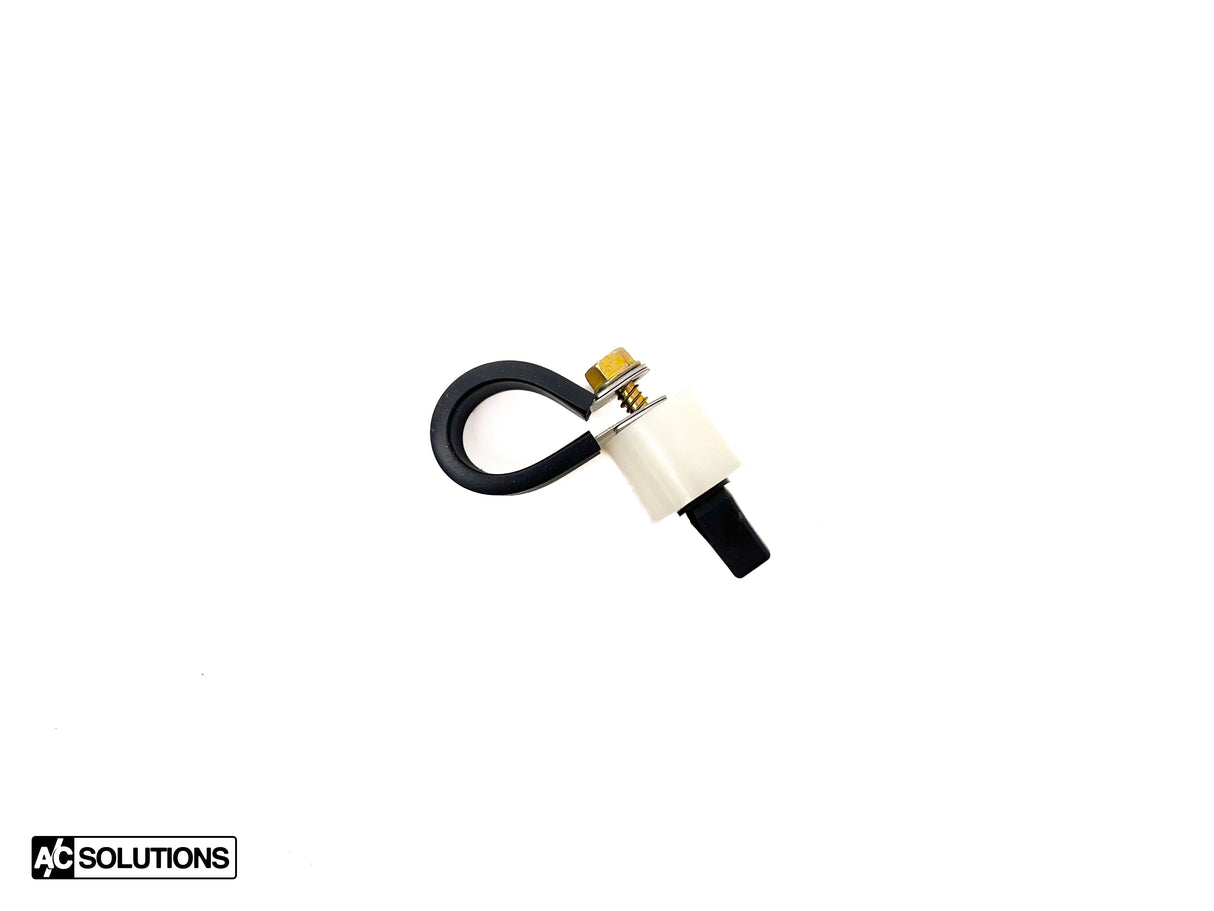

• Body spacer (high-pressure line) (#2)
• Hose clamp (large) (#3)
• Hose clamp (mid) (2x) (#4)
• Hose clamp (small) (2x) (#5)
• 10mm trim screw (long) (#6)
• 10mm trim screw (mid) (2x)(#7)
• 10mm trim screw (short) (3x) (#8)
• Expanding body nut (5x) (#9)
• M6 lock nut (#10)
• M6 lock washer (#11)
• M6 washer (#12)
• 10mm body speed clip (#13)

Fitment notes:

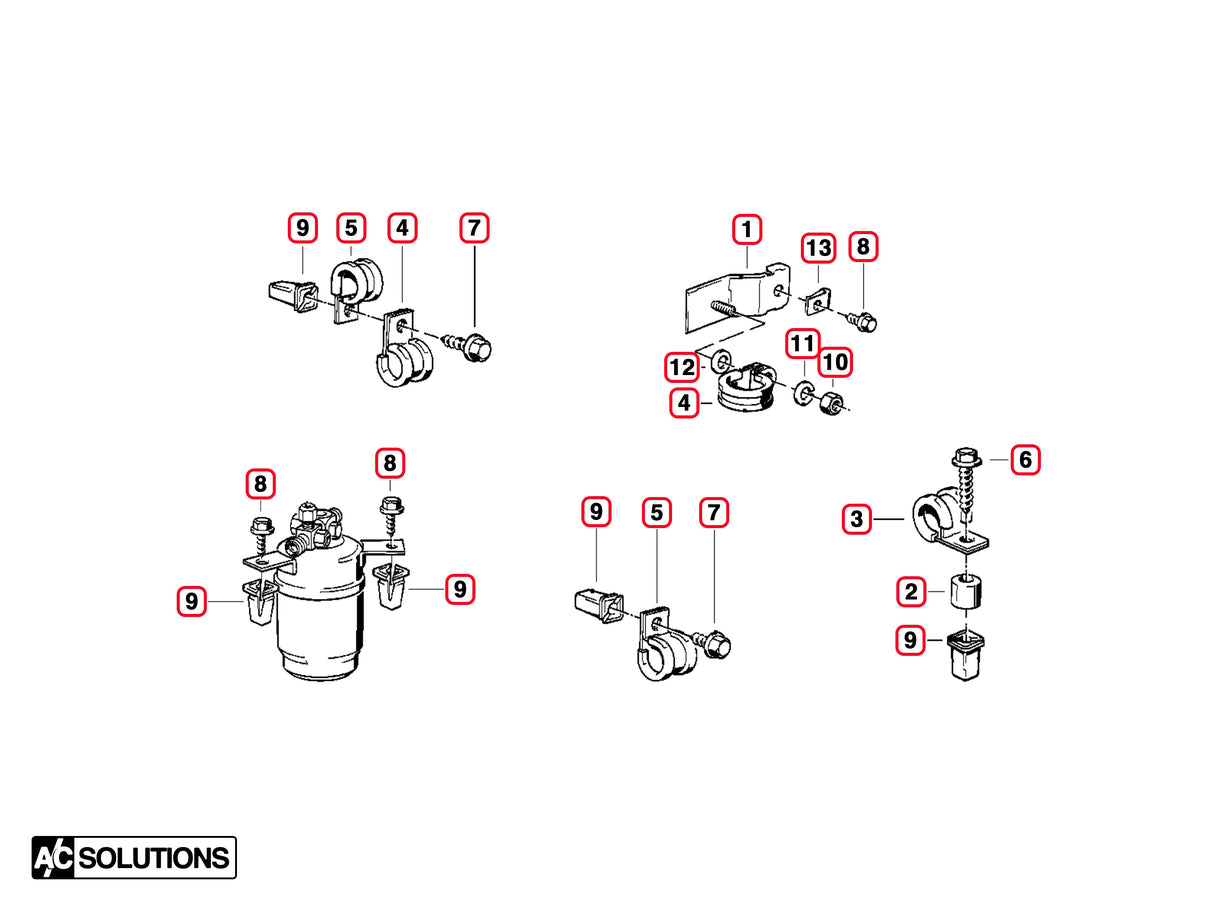

• Our low-pressure suction lines may differ slightly from your original part and are designed to use the medium size hose clamps for #4 in the diagram.
• For use with the following models: BMW E30 (325e/es, 325i/is, 320is, M3)


Cross reference part numbers: 64121379221, 12141305028, 12427840406, 64501380494, 07119916970, 64501380494, 64501372610, 16111152613, 07119916965, 07129922705, 64531372613, 07119931044, 07119933082, 17111150170, 645313057128, 64501380496
