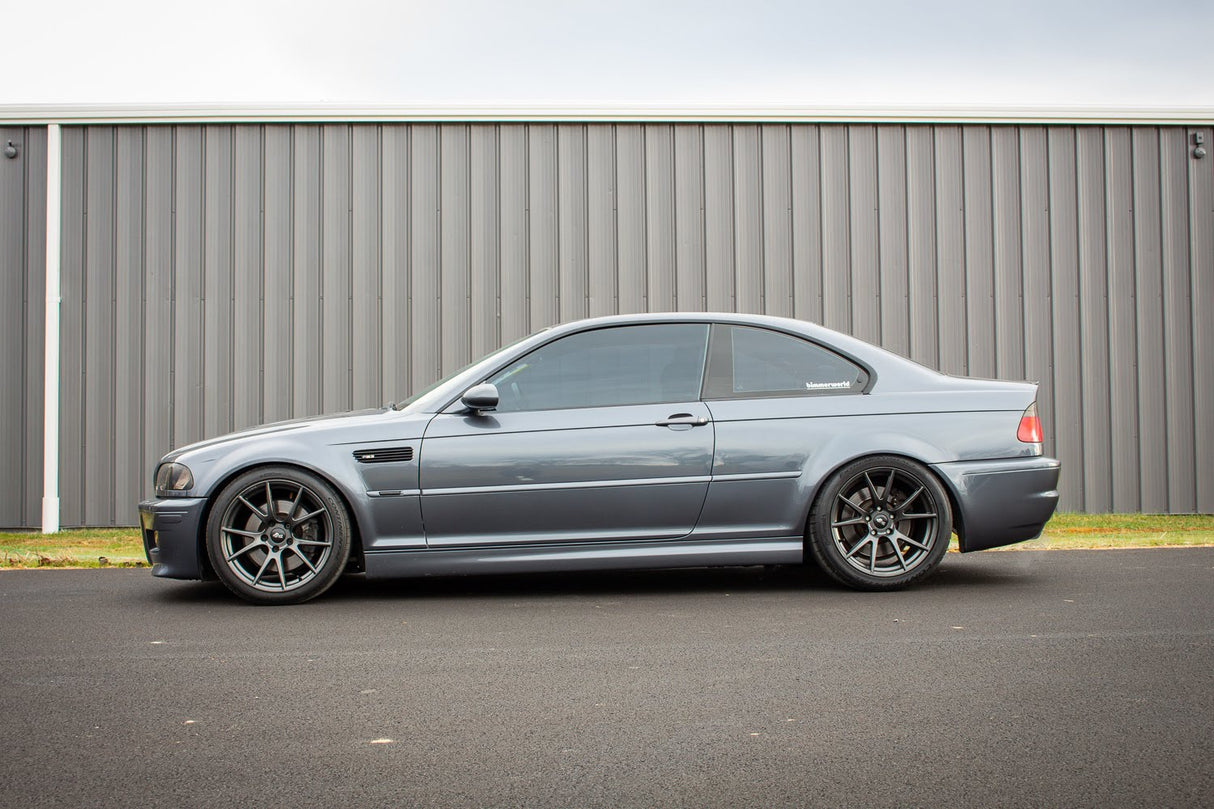

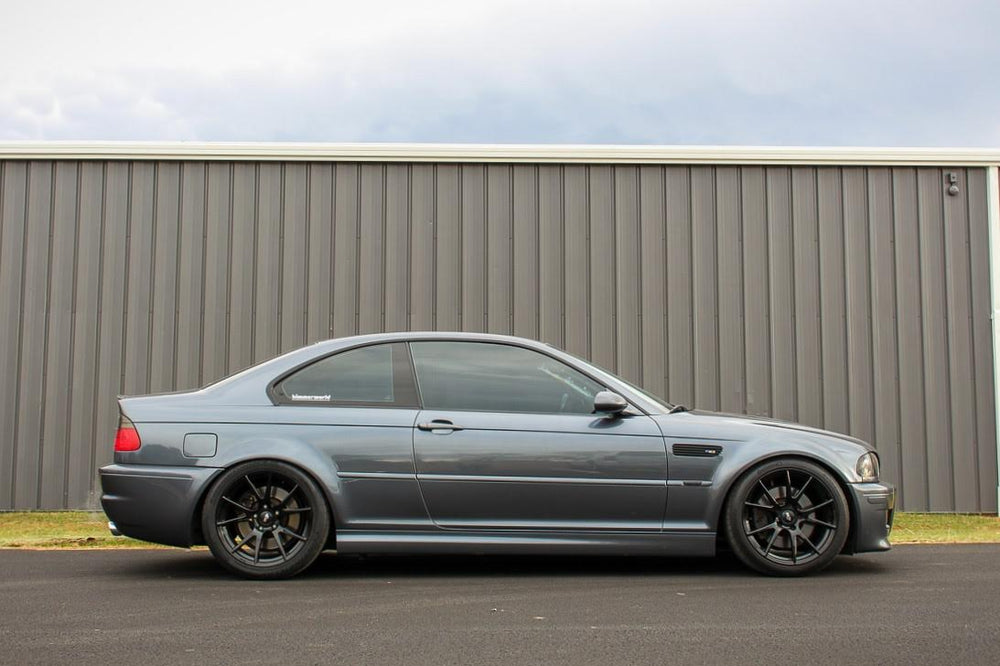

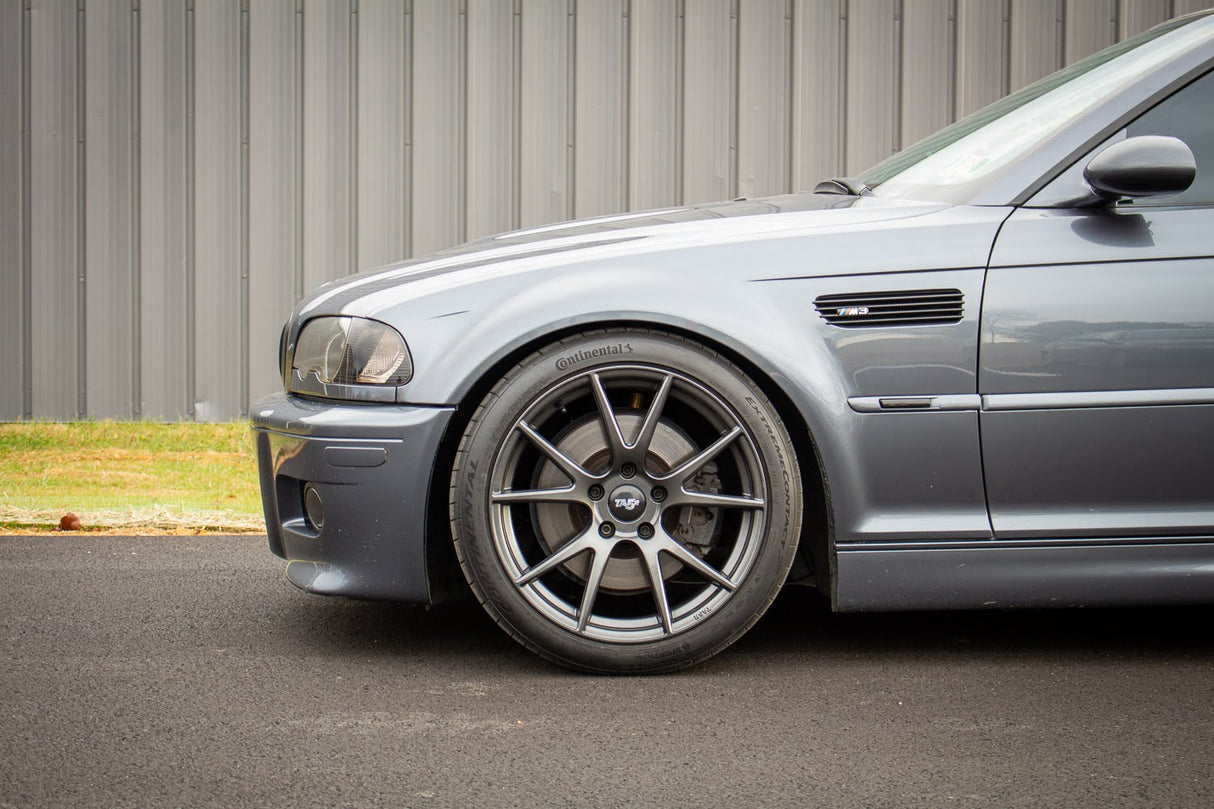

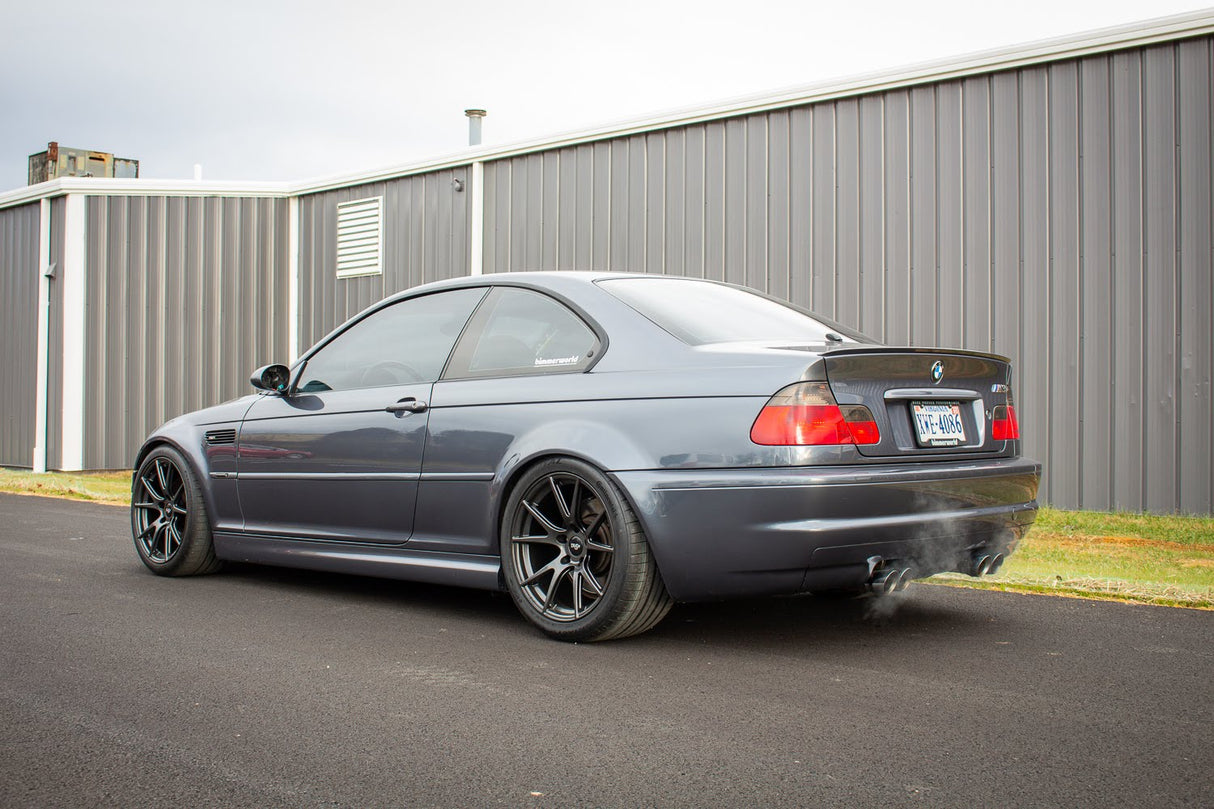

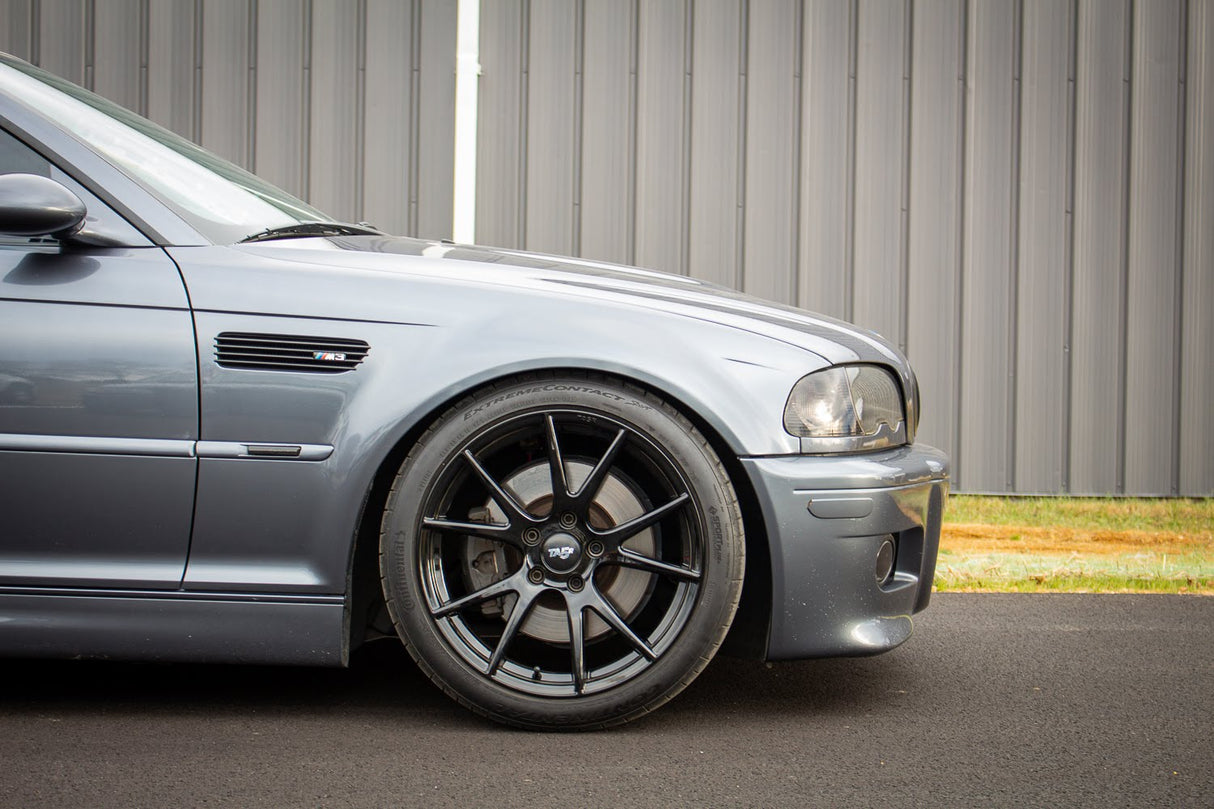

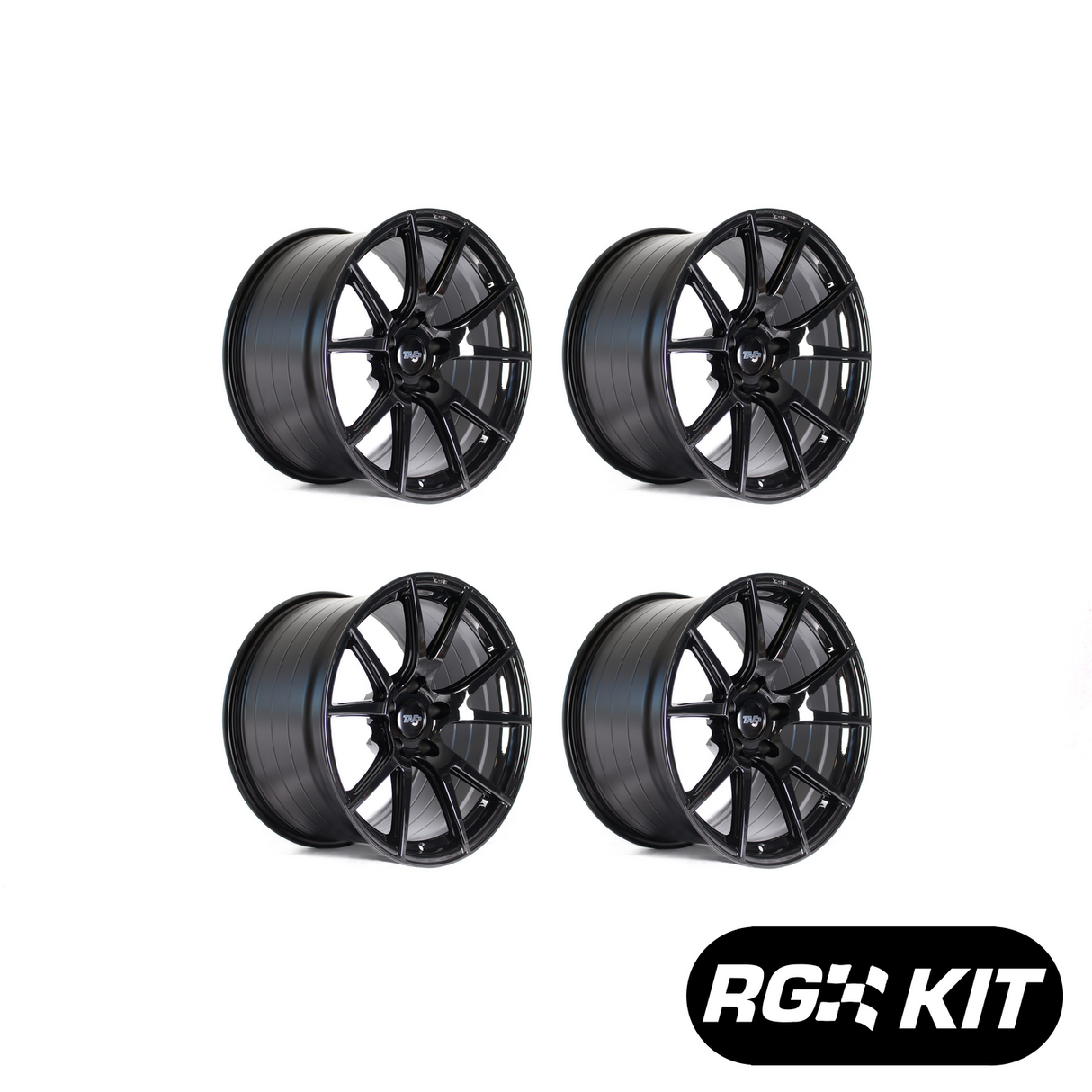

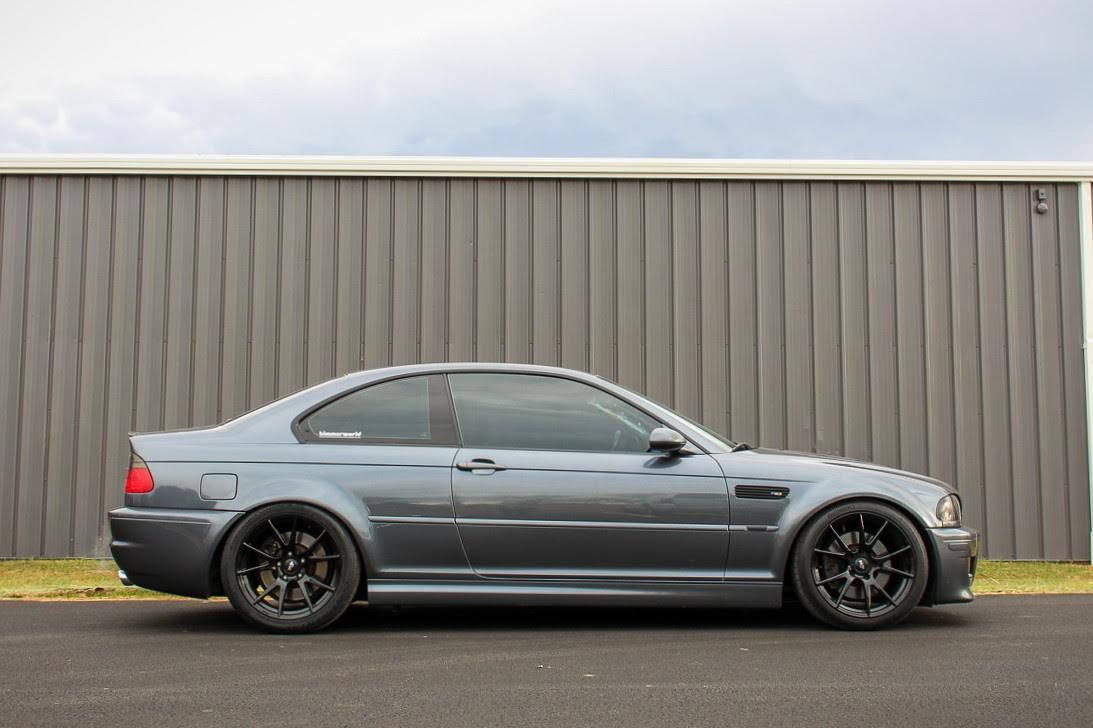

Bimmerworld E46 M3 Ta5R 18X10 Wheel Set
by BimmerWorld
Original price
$1,474.99
-
Original price
$1,474.99
Original price
$1,474.99
$1,474.99
-
$1,474.99
Sale price
$1,474.99
18x10 (ET33) is the go-to size for square track wheels on F87 M2, E46 M3, and F8X M3/M4. The 10.0" fits these cars with minimal clearance issues and the width is perfect for a wide range of optimal tire sizes. 18x10 was also chosen as the factory race wheel for the E9X M3 GT4 and M235iR. This set uses the ET33 offset, which is a better fit in our opinion, but requires spacers for most models. We would rather run spacers than having tires rub on bodywork.

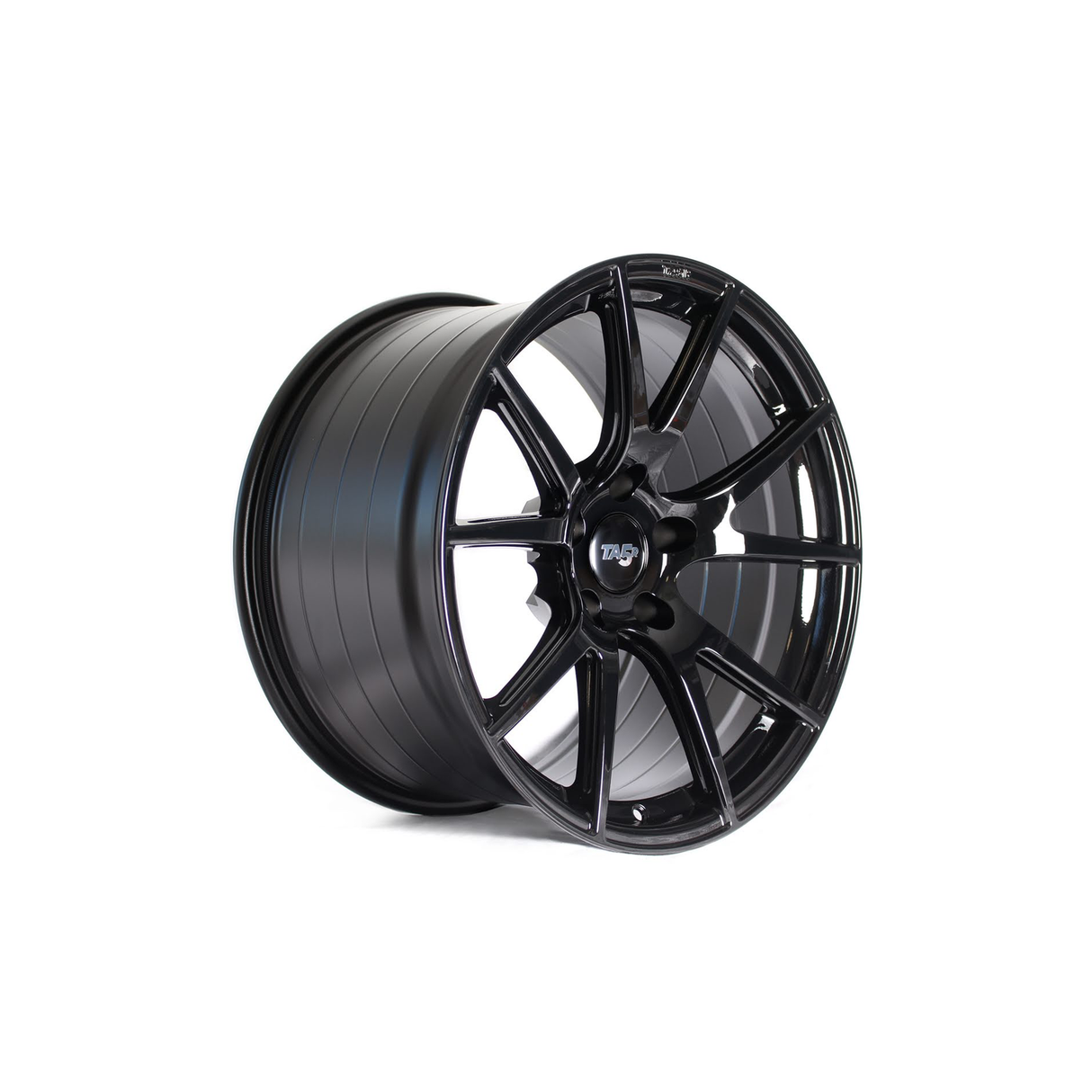

The TA5R sets new standards for flow-formed track wheels with superior strength, light weight, huge brake clearance, and affordable. The TA5R has greater strength and more reinforcement in critical areas: more material in the outer lips, a closed-face hub, and spokes that extend to the outer lip. These features, plus the latest flow-forming manufacturing, have produced a wheel with a load rating of 720kg (1,587lbs), which is higher than other so-called track wheels.
Flow-forming and precise machining also produce a light wheel - the 18x10.0 sits on our scales at 19.78lbs. The TA5R has been fatigue and impact tested and exceeds SAE, JWL, and VIA standards. Flow-forming is a manufacturing process with a tighter grain structure than casting that makes the wheel stronger, similar to a true forged wheel. The superior process far surpasses older manufacturing that use a straight casting process.
The wide-V-spoke design stretches all the way to the outer lip, a key component to the TA5R's strength. They also allow tremendous caliper clearance behind the spokes. 18" sizes clear all 355mm brakes (Brembo F40, Monobloc, ST40, ST60) plus StopTech ST60 380mm kit and stock F8X M3/M4 iron brakes (not CCB).
Thanks to its lightweight barrel and robust face design, the TA5R stands up well against the rigors of endurance racing, as well as your average street potholes. The 18" TA5R features a load rating of 1,587lbs.
TA5R features:
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. This set has been specifically chosen for aggressive track/race use and some compromises should be expected to fit wide rubber on these cars. The ET33 offset means spacers are recommended or required, depending on the model (see below). Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only.
Recommended Spacer Sizes:
F87 M2: small spacer in the front, depending on suspension setup
E46 M3: no spacers required but 5-12mm is recommended for a flush look
F8X M3/M4: requires a 3-5mm spacer in the front
Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at info@bimmerworld.com for assistance. We're your BMW wheel experts and are happy to help.
BMW Fitments:
2 Series
F87 (16-18) > M2
3 Series
E46 (01-06) > M3
3 Series
F80 (15-19) > M3
4 Series
F82 / F83 (15-20) > M4
The TA5R sets new standards for flow-formed track wheels with superior strength, light weight, huge brake clearance, and affordable. The TA5R has greater strength and more reinforcement in critical areas: more material in the outer lips, a closed-face hub, and spokes that extend to the outer lip. These features, plus the latest flow-forming manufacturing, have produced a wheel with a load rating of 720kg (1,587lbs), which is higher than other so-called track wheels.
Flow-forming and precise machining also produce a light wheel - the 18x10.0 sits on our scales at 19.78lbs. The TA5R has been fatigue and impact tested and exceeds SAE, JWL, and VIA standards. Flow-forming is a manufacturing process with a tighter grain structure than casting that makes the wheel stronger, similar to a true forged wheel. The superior process far surpasses older manufacturing that use a straight casting process.
The wide-V-spoke design stretches all the way to the outer lip, a key component to the TA5R's strength. They also allow tremendous caliper clearance behind the spokes. 18" sizes clear all 355mm brakes (Brembo F40, Monobloc, ST40, ST60) plus StopTech ST60 380mm kit and stock F8X M3/M4 iron brakes (not CCB).
Thanks to its lightweight barrel and robust face design, the TA5R stands up well against the rigors of endurance racing, as well as your average street potholes. The 18" TA5R features a load rating of 1,587lbs.
TA5R features:
- Wide V-spoke design out to the outer lip - superior strength
- Flow-formed, roll-forged barrel - high strength but low weight
- Reinforced inner lip for added strength over curbs
- Knurled bead seat reduces tire slippage
- Huge spoke clearance for big brake kits
- Closed-face hub maximizes strength in the hub
- Accepts OE BMW center cap (TA5R cap included)
- Accepts factory lug bolts, wheel locks, or stud conversions
- 32mm lug hole accommodates 19mm sockets
- Protective recessed valve stem pocket
- Tire pressure monitoring system (TPMS) compatible (not included)
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. This set has been specifically chosen for aggressive track/race use and some compromises should be expected to fit wide rubber on these cars. The ET33 offset means spacers are recommended or required, depending on the model (see below). Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only.
Recommended Spacer Sizes:
F87 M2: small spacer in the front, depending on suspension setup
E46 M3: no spacers required but 5-12mm is recommended for a flush look
F8X M3/M4: requires a 3-5mm spacer in the front
Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at info@bimmerworld.com for assistance. We're your BMW wheel experts and are happy to help.
BMW Fitments:
2 Series
F87 (16-18) > M2
3 Series
E46 (01-06) > M3
3 Series
F80 (15-19) > M3
4 Series
F82 / F83 (15-20) > M4
