Bimmerworld E36 Ta5R 17X9 Wheel Set
by BimmerWorld
Original price
$1,189.99
-
Original price
$1,189.99
Original price
$1,189.99
$1,189.99
-
$1,189.99
Sale price
$1,189.99

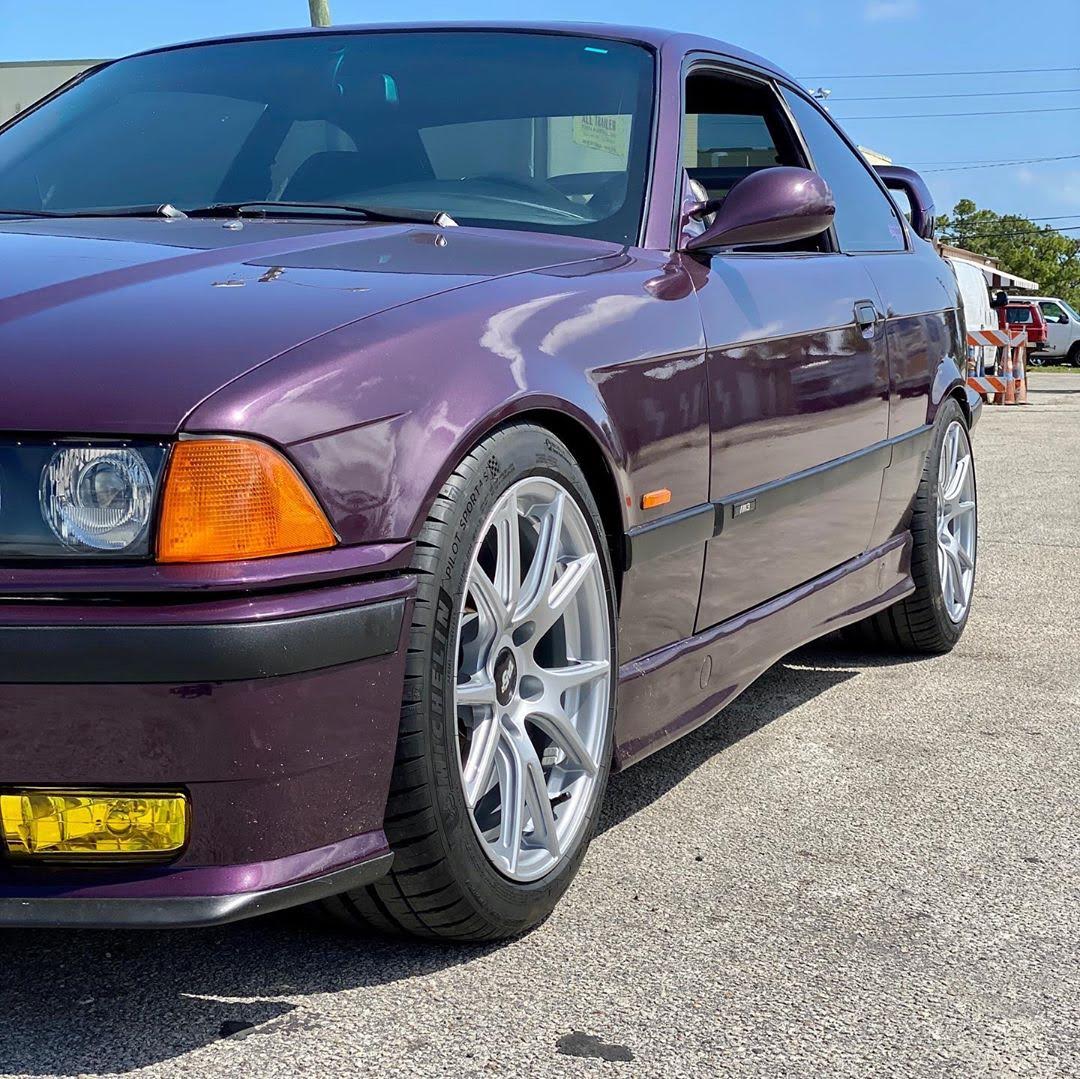

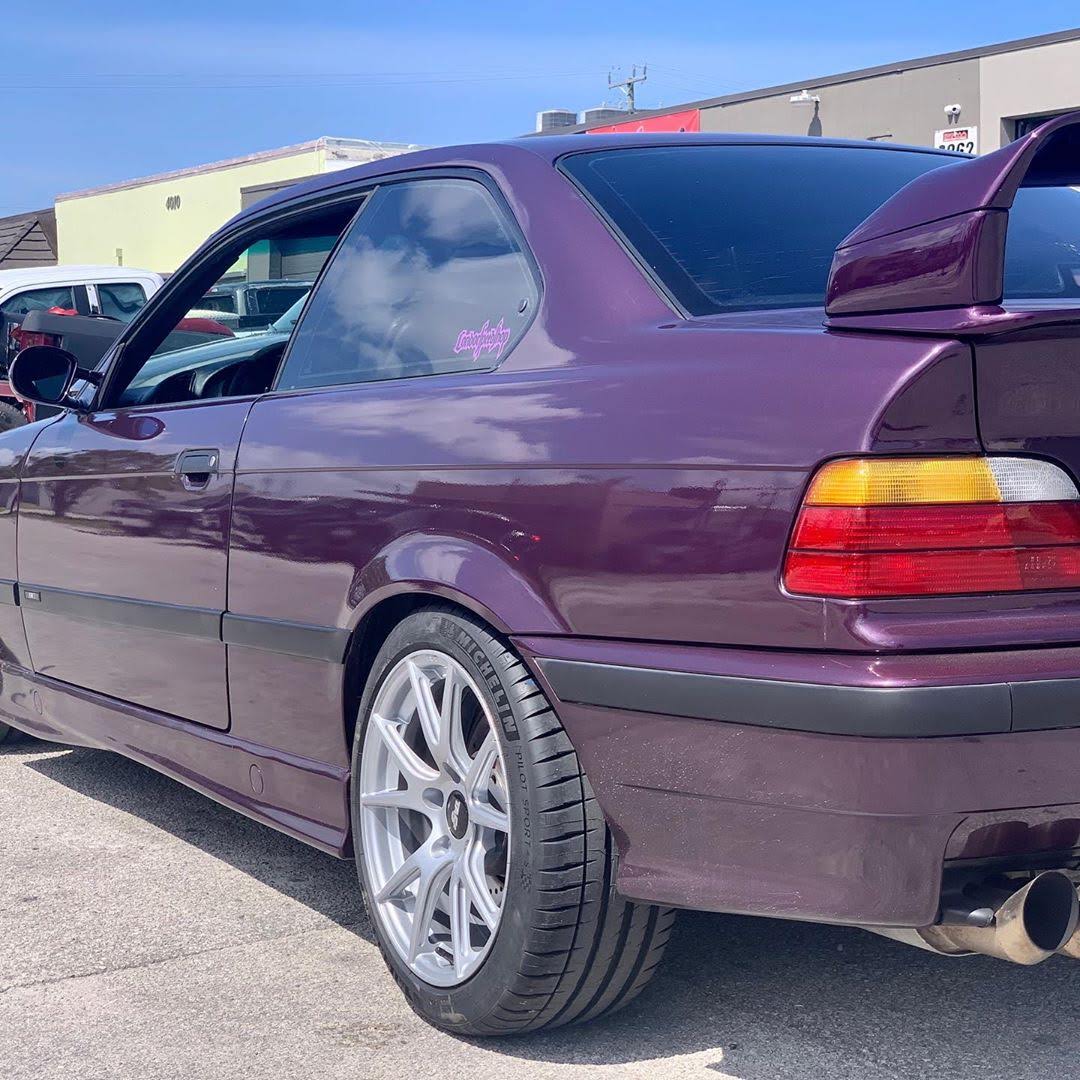

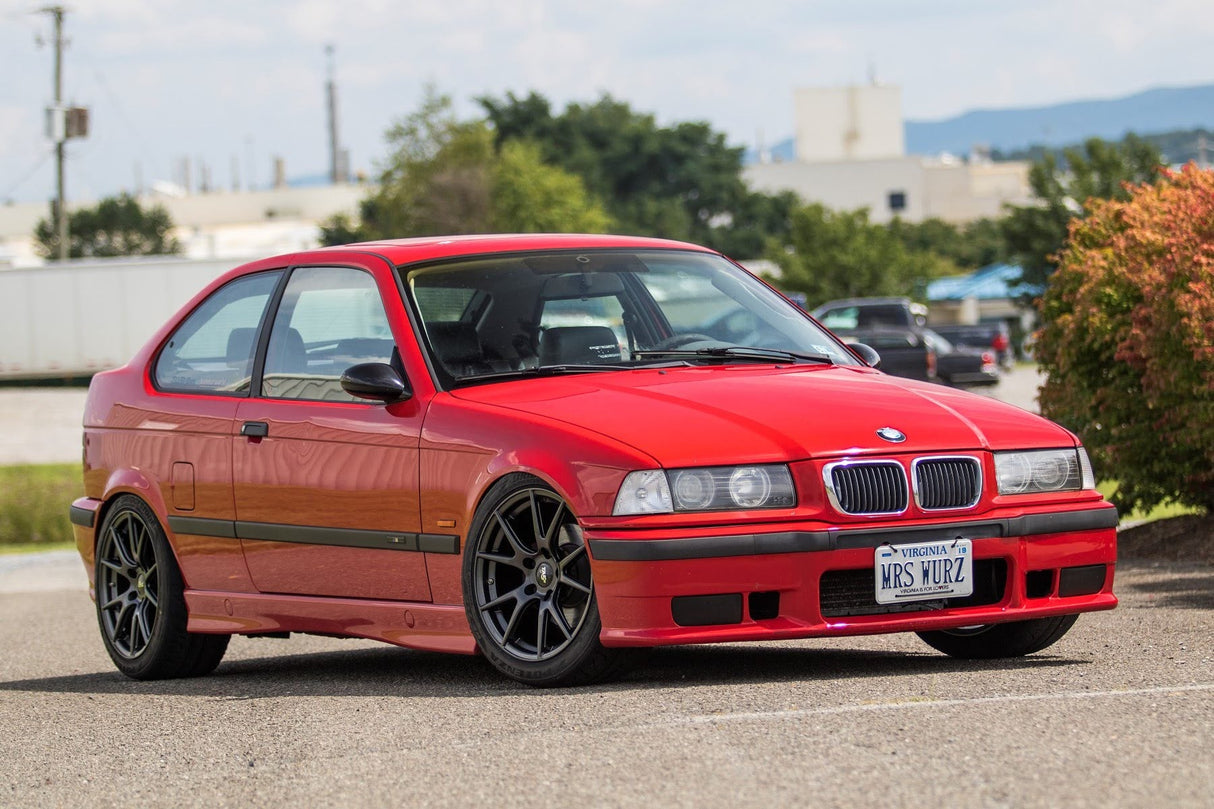

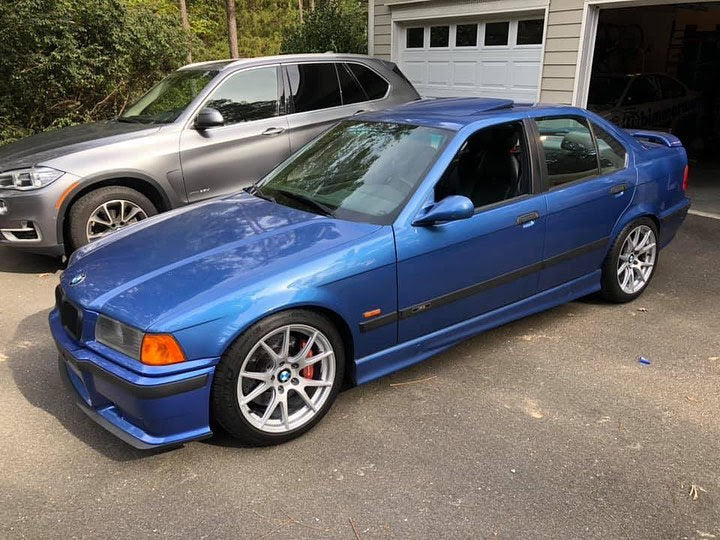

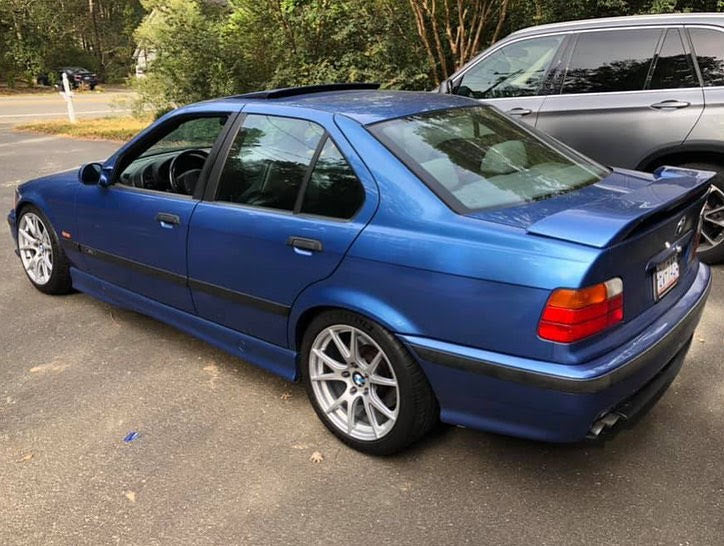

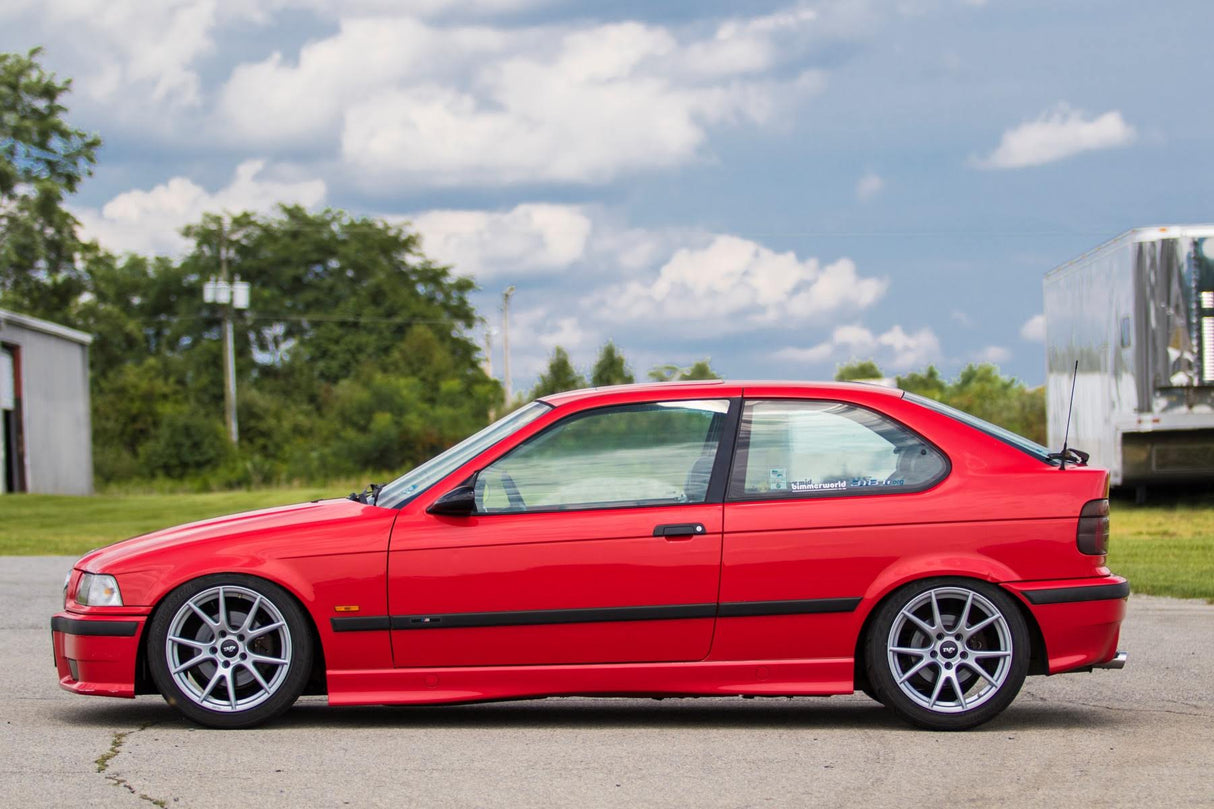

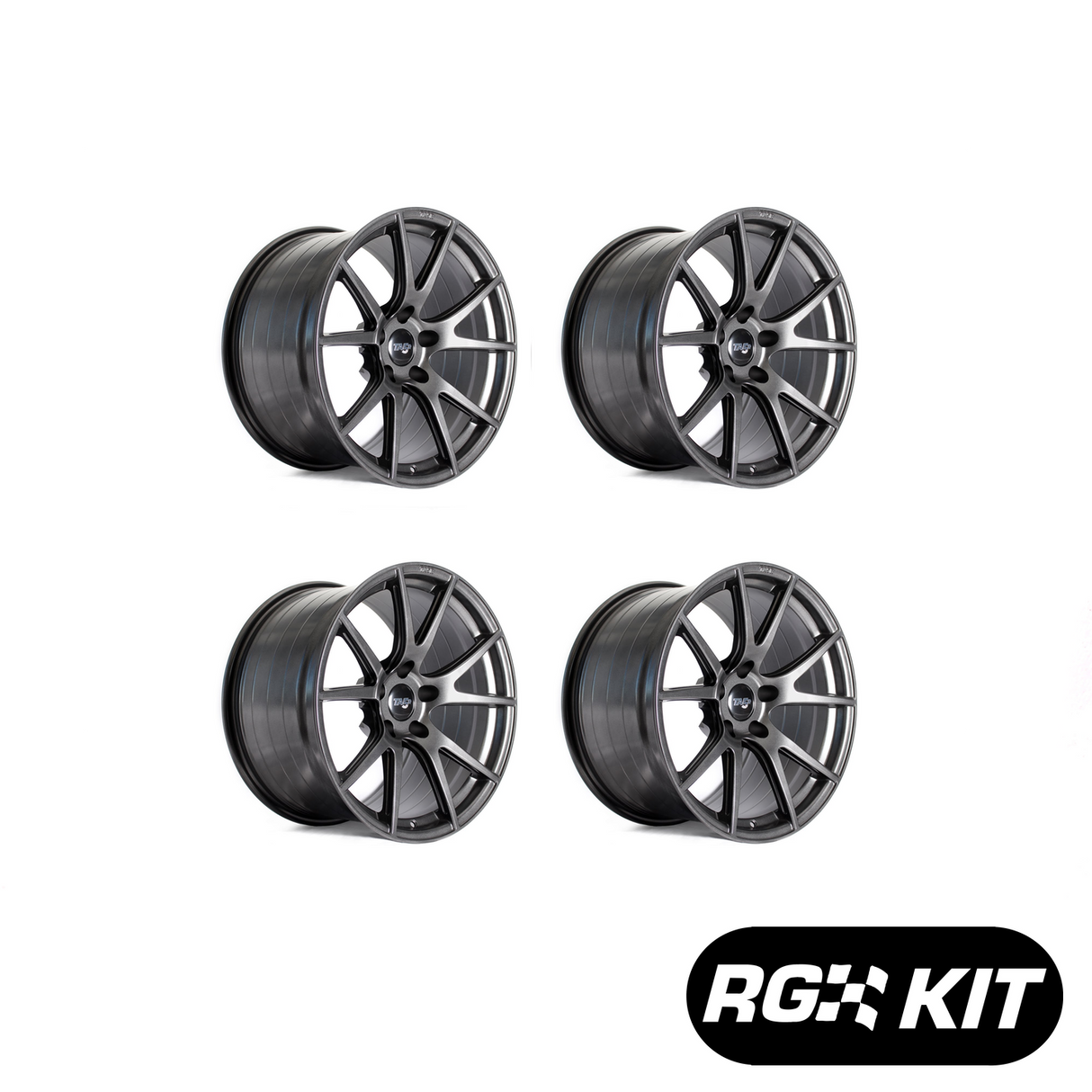

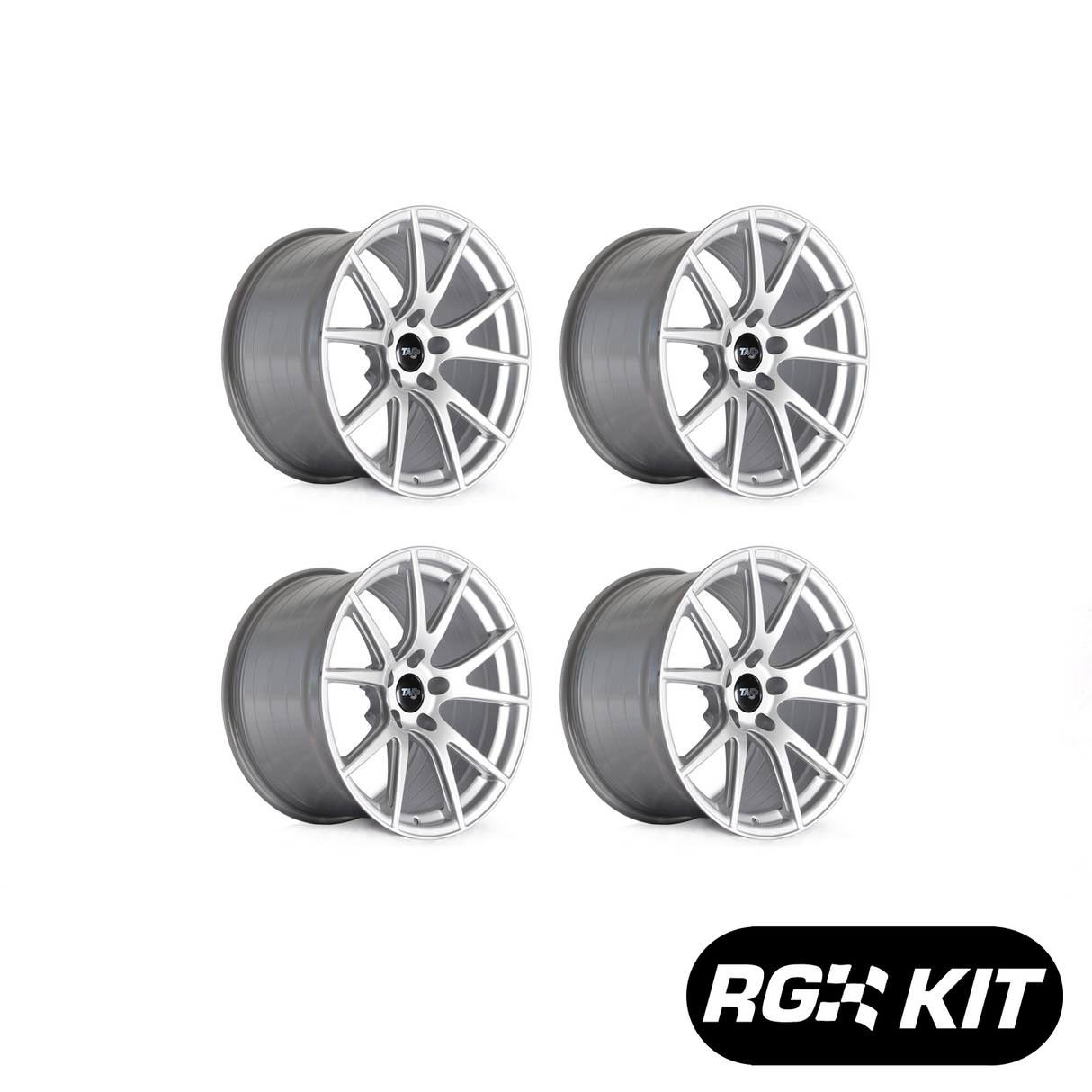

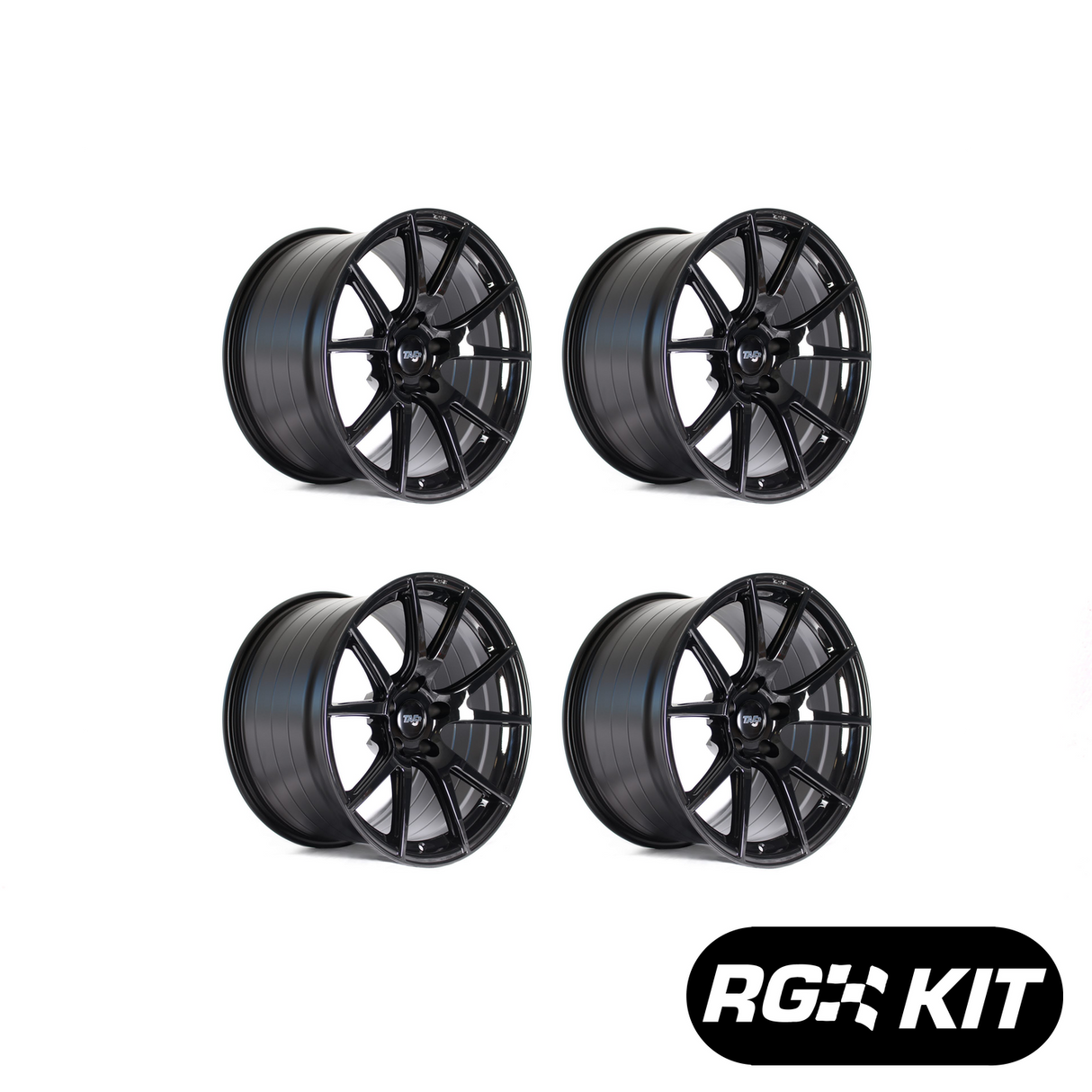

This square set of BimmerWorld 17x9.0 wheels for the E36, E46, F30, F32, Z3, and Z4 are a straight fit with minimal fitment hassle or interference issues. All four wheels are 17x9.0" ET42, which is the ideal width to run a 235, 245, 255, or some 265 width tires. These are wider than the stock E36 M3 or E46 330i wheels with a much larger footprint in the front to help reduce understeer. Sizes and offsets have been carefully chosen to fit within the stock bodywork with zero or minimal rubbing*. These are lightweight and strong alloy wheels at a great price for the set!
TA5R uses the latest industry technology known as flow-forging or flow-forming. The process is similar to casting but with a stronger roll-forged barrel and a tighter grain structure that makes the wheel stronger. The superior process far surpasses older manufacturing that use a straight casting process. Our TA5R 17" wheels have a load rating of 660kg (1,455lbs), which is higher than other so-called track wheels. Flow-forming and precise machining also produce a lighter wheel - our 17" sizes come in less than 17.5lbs. The TA5R has been fatigue and impact tested using SAE, JWL, and VIA standards.

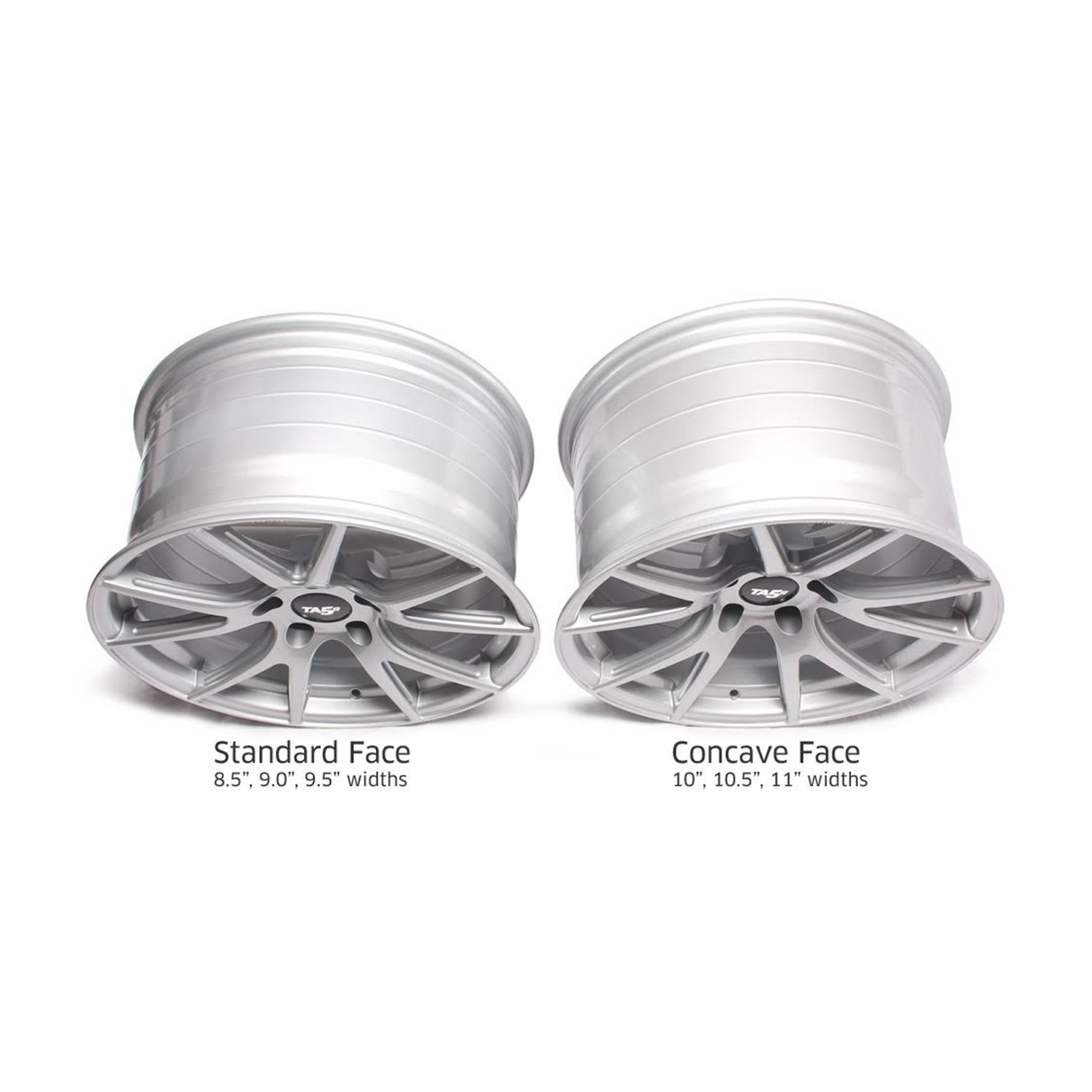

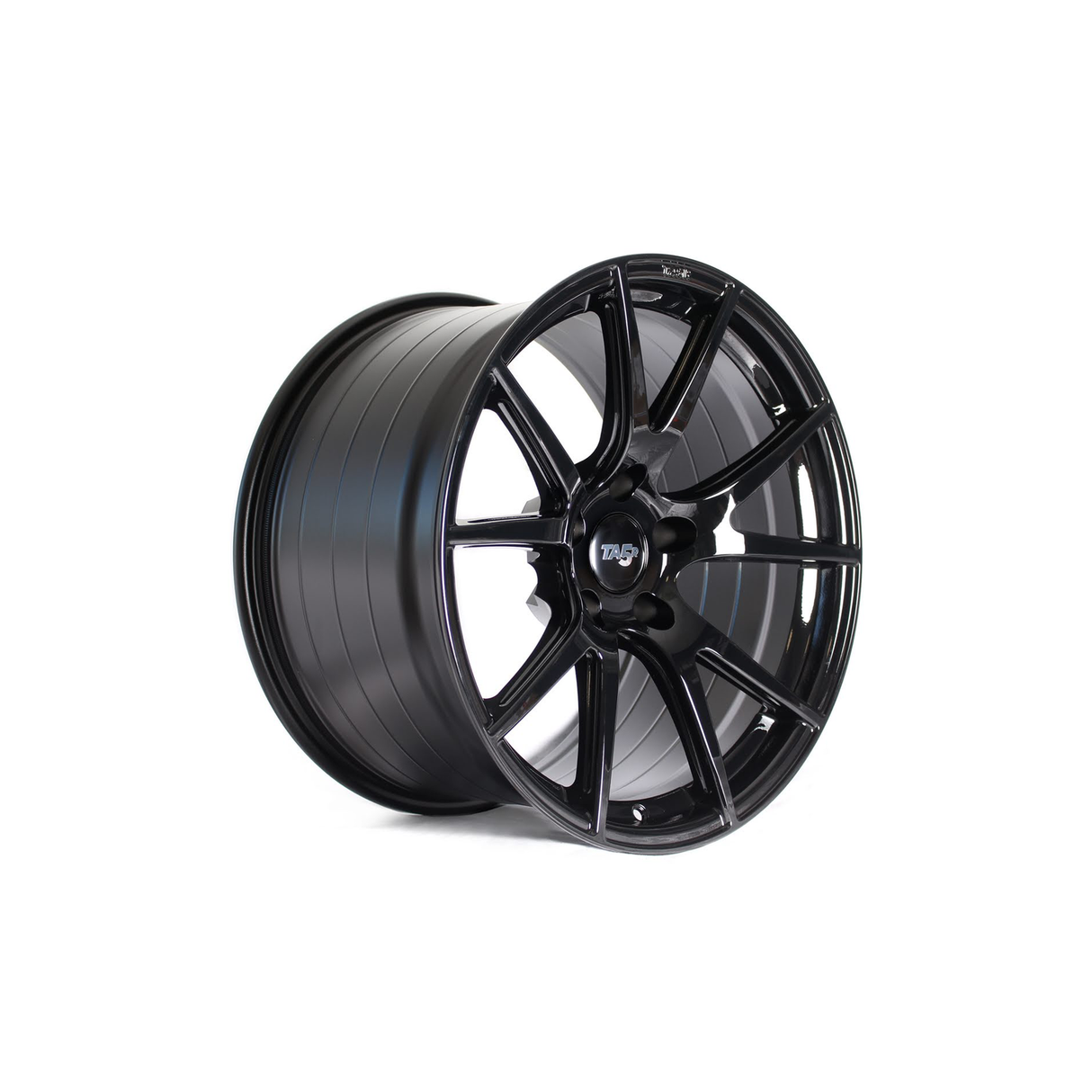

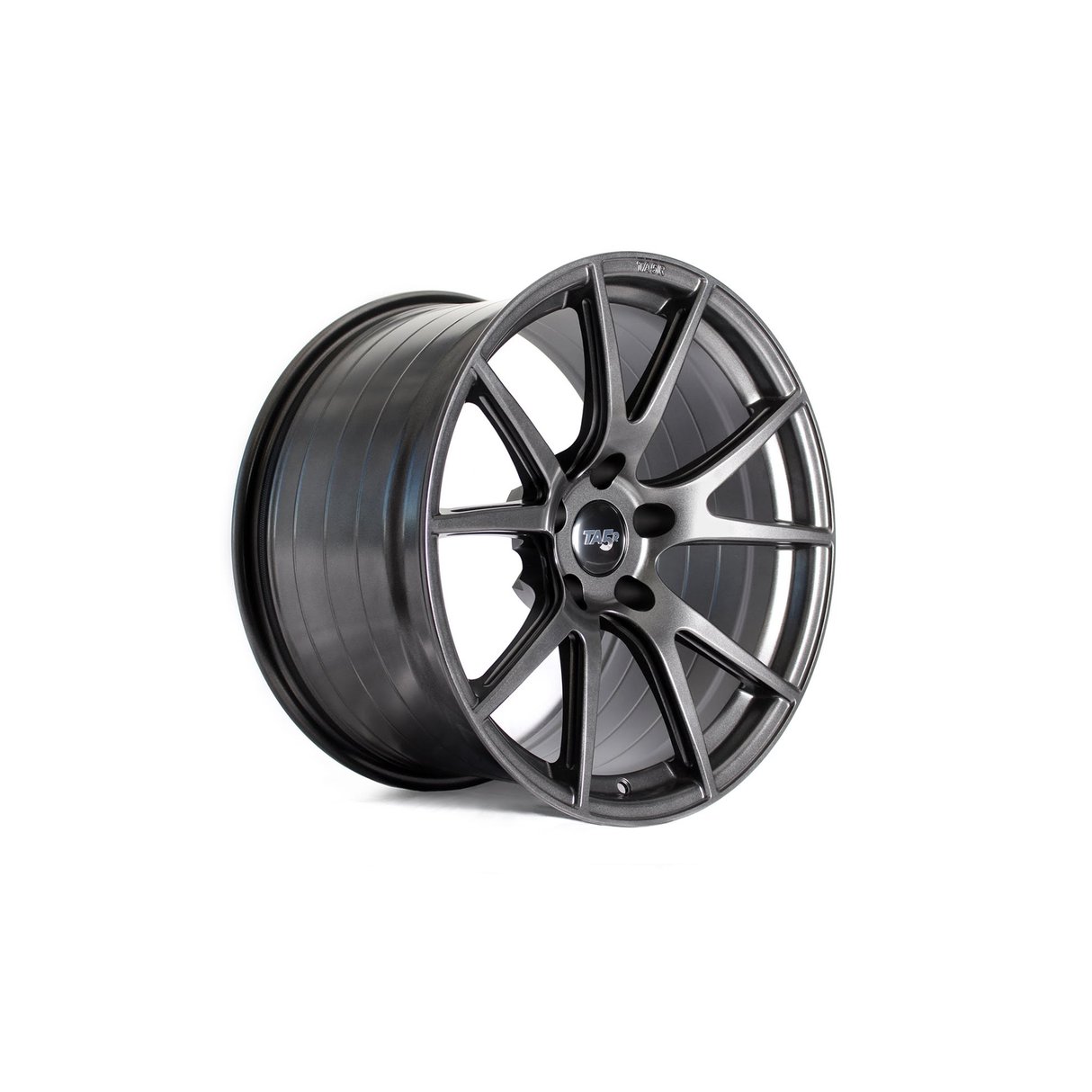

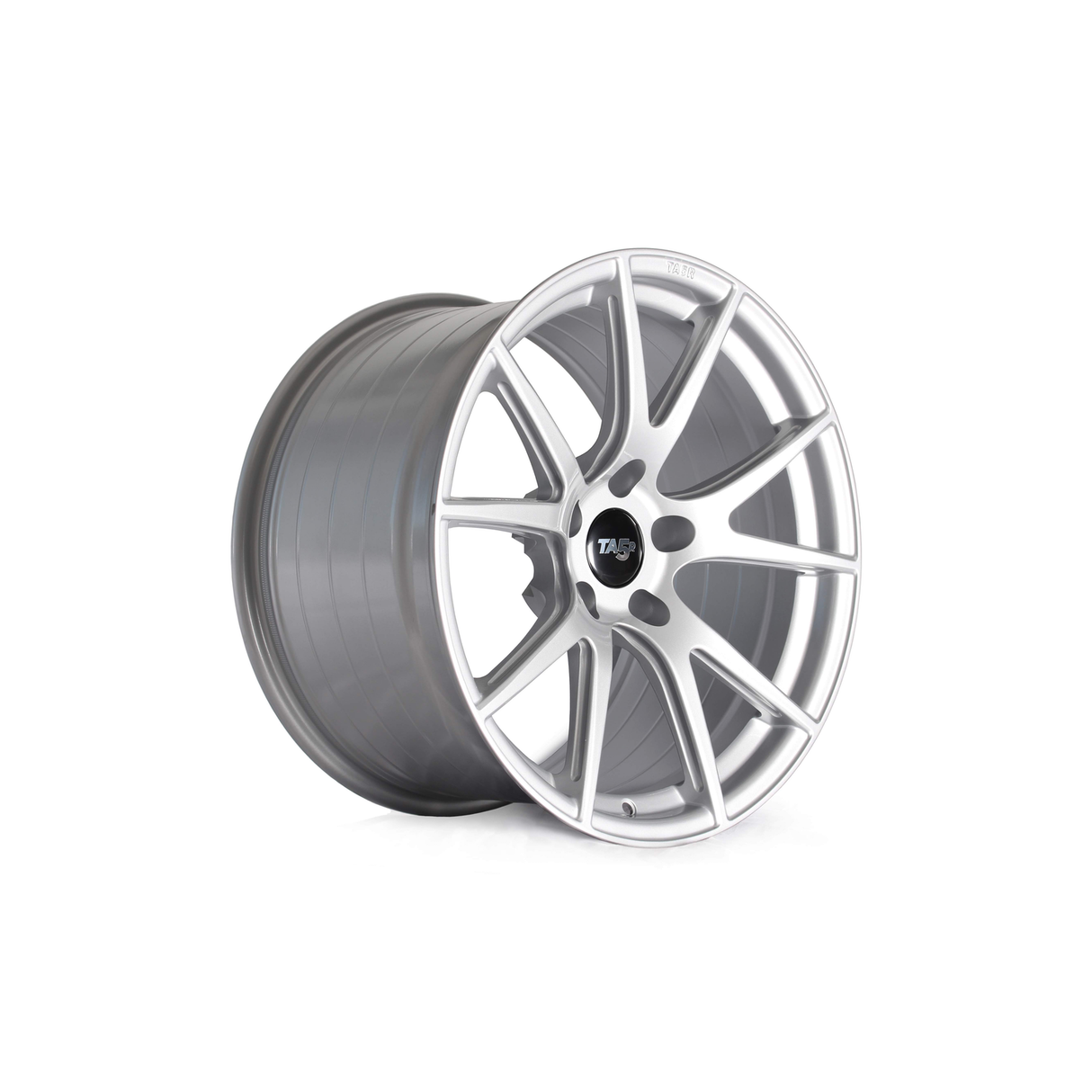

The wide-V-spoke design stretches all the way to the outer lip, a key component to the TA5R's strength. They also allow tremendous caliper clearance behind the spokes. 17" sizes clear Brembo F40, StopTech ST40, and PFC 332mm and 355mm 4-piston brake kits.
Thanks to its lightweight, reinforced barrel and robust face design, the TA5R stands up well against the rigors of endurance racing, as well as your average street potholes. The 17" TA5R features a load rating of 1,455lbs.
TA5R features:
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. This set is considered aggressive for some of the models listed. Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only. These wheels are compatible with 10mm spacers, however, 12mm is a better choice due to known design limitations of 10mm spacers.
Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at info@bimmerworld.com for assistance. We're your BMW wheel experts and are happy to help.
BMW Fitments:
3 Series
E36 (92-99) > 318i
E36 (92-99) > 318ic
E36 (92-99) > 318is
E36 (92-99) > 323ic
E36 (92-99) > 323is
E36 (92-99) > 325i
E36 (92-99) > 325ic
E36 (92-99) > 325is
E36 (92-99) > 328i
E36 (92-99) > 328ic
E36 (92-99) > 328is
E36 (92-99) > M3
3 Series
E46 (99-06) > 323i
E46 (99-06) > 323ci
E46 (99-06) > 325i
E46 (99-06) > 325ci
E46 (99-06) > 325xi
E46 (99-06) > 328i
E46 (99-06) > 328ci
E46 (99-06) > 330i
E46 (99-06) > 330ci
E46 (99-06) > 330xi
3 Series
F30 / F31 / F34 (12-18) > 320i
F30 / F31 / F34 (12-18) > 320i xDrive
F30 / F31 / F34 (12-18) > 328d
F30 / F31 / F34 (12-18) > 328d xDrive
F30 / F31 / F34 (12-18) > 328i
F30 / F31 / F34 (12-18) > 328i xDrive
F30 / F31 / F34 (12-18) > 330i
F30 / F31 / F34 (12-18) > 330i xDrive
F30 / F31 / F34 (12-18) > 335i
F30 / F31 / F34 (12-18) > 335i xDrive
F30 / F31 / F34 (12-18) > 340i
F30 / F31 / F34 (12-18) > 340i xDrive
4 Series
F32 / F33 / F36 (14-20) > 428i
F32 / F33 / F36 (14-20) > 428i xDrive
F32 / F33 / F36 (14-20) > 430i
F32 / F33 / F36 (14-20) > 430i xDrive
F32 / F33 / F36 (14-20) > 435i
F32 / F33 / F36 (14-20) > 435i xDrive
F32 / F33 / F36 (14-20) > 440i
F32 / F33 / F36 (14-20) > 440i xDrive
5 Series
E60 / E61 (06-10) > 525xi
E60 / E61 (06-10) > 528xi
E60 / E61 (06-10) > 530xi
E60 / E61 (06-10) > 535xi
Z Series
E36/7 / E36/8 (97-02) > Z3 1.9
E36/7 / E36/8 (97-02) > Z3 2.3
E36/7 / E36/8 (97-02) > Z3 2.5
E36/7 / E36/8 (97-02) > Z3 2.8
E36/7 / E36/8 (97-02) > Z3 3.0
Z Series
E85 / E86 (03-08) > Z4 2.5
E85 / E86 (03-08) > Z4 3.0
E85 / E86 (03-08) > Z4 3.0si
TA5R uses the latest industry technology known as flow-forging or flow-forming. The process is similar to casting but with a stronger roll-forged barrel and a tighter grain structure that makes the wheel stronger. The superior process far surpasses older manufacturing that use a straight casting process. Our TA5R 17" wheels have a load rating of 660kg (1,455lbs), which is higher than other so-called track wheels. Flow-forming and precise machining also produce a lighter wheel - our 17" sizes come in less than 17.5lbs. The TA5R has been fatigue and impact tested using SAE, JWL, and VIA standards.
The wide-V-spoke design stretches all the way to the outer lip, a key component to the TA5R's strength. They also allow tremendous caliper clearance behind the spokes. 17" sizes clear Brembo F40, StopTech ST40, and PFC 332mm and 355mm 4-piston brake kits.
Thanks to its lightweight, reinforced barrel and robust face design, the TA5R stands up well against the rigors of endurance racing, as well as your average street potholes. The 17" TA5R features a load rating of 1,455lbs.
TA5R features:
- Wide V-spoke design out to the outer lip - superior strength
- Flow-formed, roll-forged barrel - high strength but low weight
- Reinforced inner lip for added strength over curbs
- Knurled bead seat reduces tire slippage
- Huge spoke clearance for big brake kits
- Closed-face hub maximizes strength in the hub
- Accepts OE BMW center cap (TA5R cap included)
- Accepts factory lug bolts, wheel locks, or stud conversions
- 32mm lug hole accommodates 19mm sockets
- Protective recessed valve stem pocket
- Tire pressure monitoring system (TPMS) compatible (not included)
Fitment Note: we do our best to display wheels that fit your BMW model, based on your model selection. This set is considered aggressive for some of the models listed. Many variables must be considered for wheel fitment, especially when using larger wheels or different offsets. These variables include: suspension type and settings, ride height, tire size, bodywork changes, and alignment settings. In some cases, additional parts or modifications may be necessary for fitment that may not be listed in our catalog. Final wheel fitment and clearance is the responsibility of the customer, however, we welcome your questions on fitment, size, offset, or other wheel-related inquiries. Wheel returns are limited to quality issues only. These wheels are compatible with 10mm spacers, however, 12mm is a better choice due to known design limitations of 10mm spacers.
Need help deciding on a size or offset for your BMW? No problem! Give us a call at 877.639.9648 or email us at info@bimmerworld.com for assistance. We're your BMW wheel experts and are happy to help.
