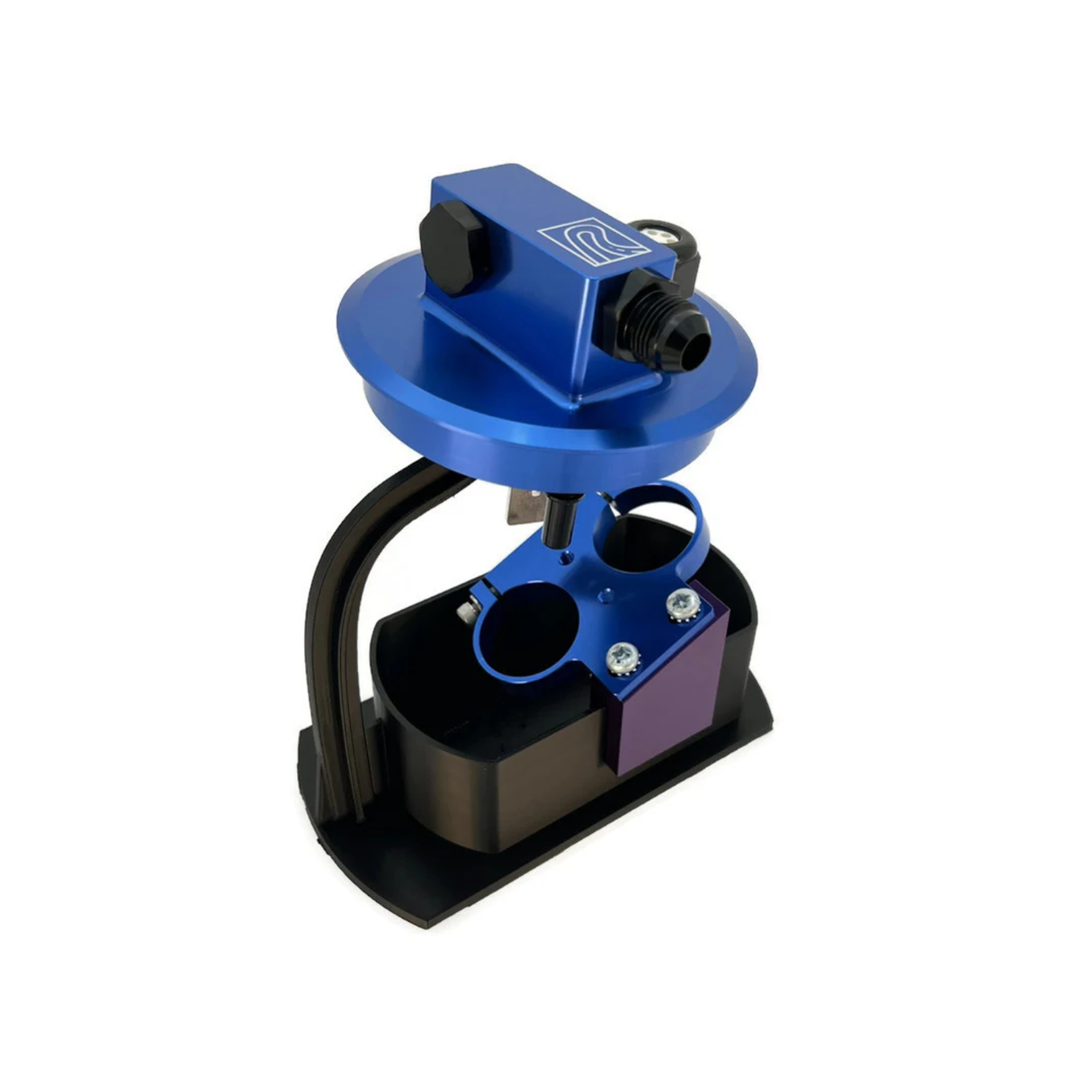

E36 Dual Fuel Pump Kit

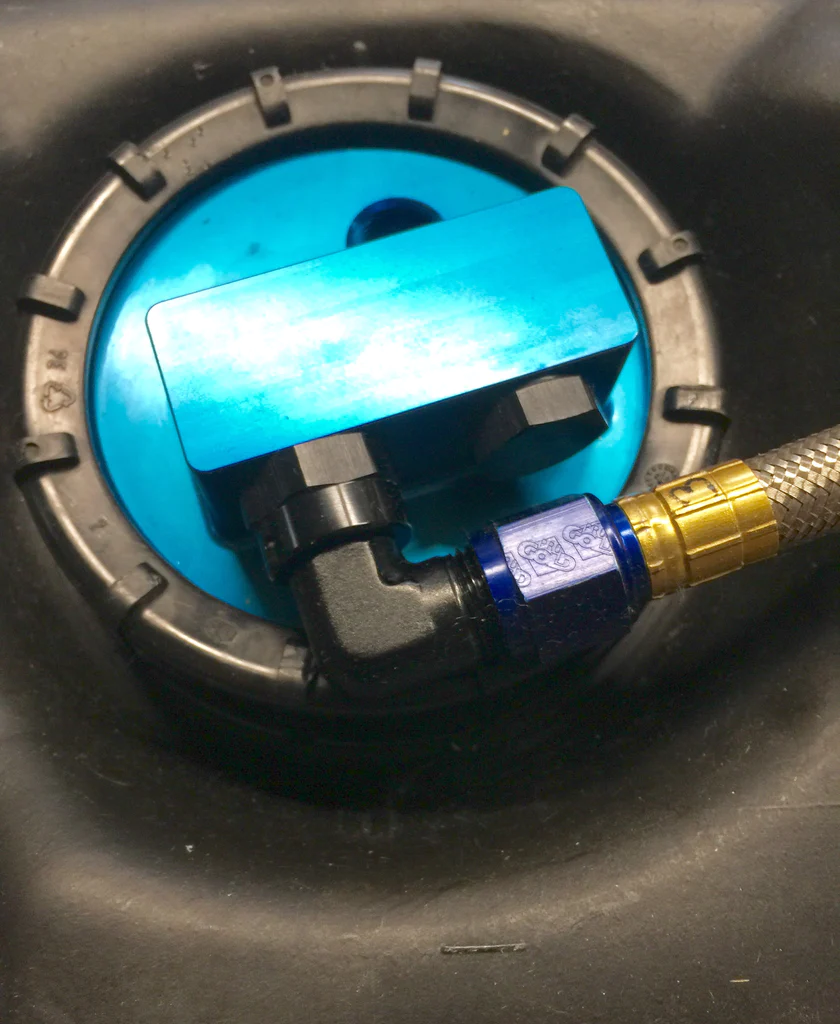

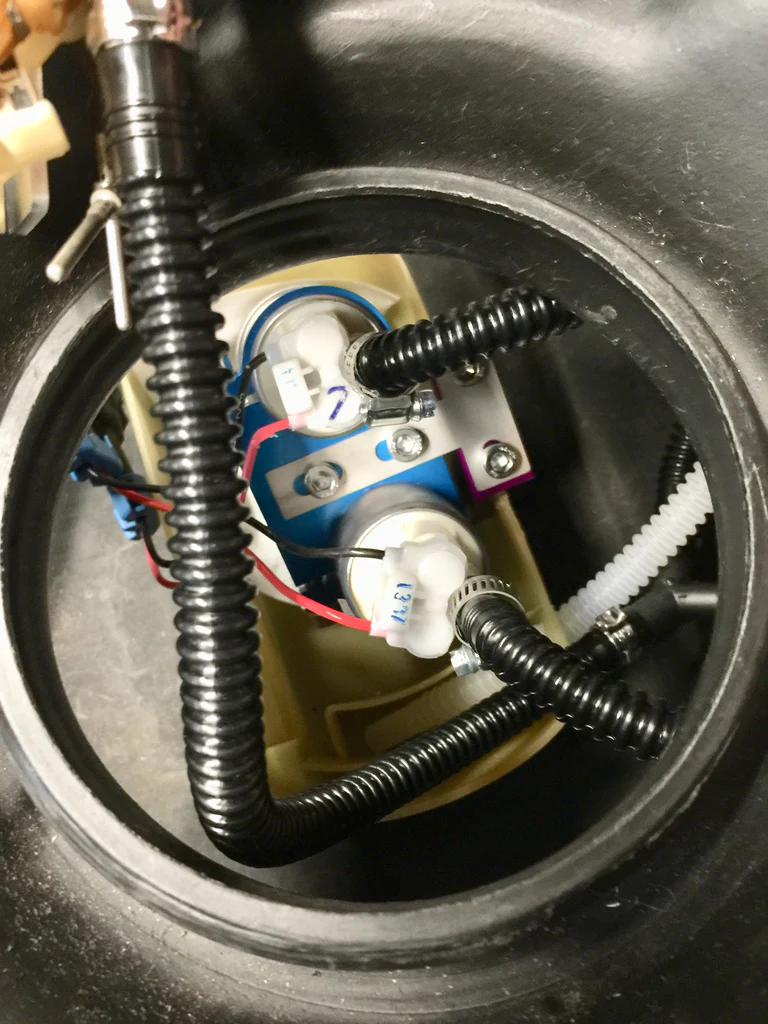

If you have a track car or ahigh horsepower E36, it may be a good time to add a dual pump setup.  This kit has been completely redesigned and now offers a one piece billet alluminum cap. The kit allows for attachment of single feed and return lines when creating a custom fuel system.  The kit retains the factory fuel level sensor.  It includes a sealed wire pass-thru for the fuel pump and level sensor wiring.  Some wiring modifications will be required.

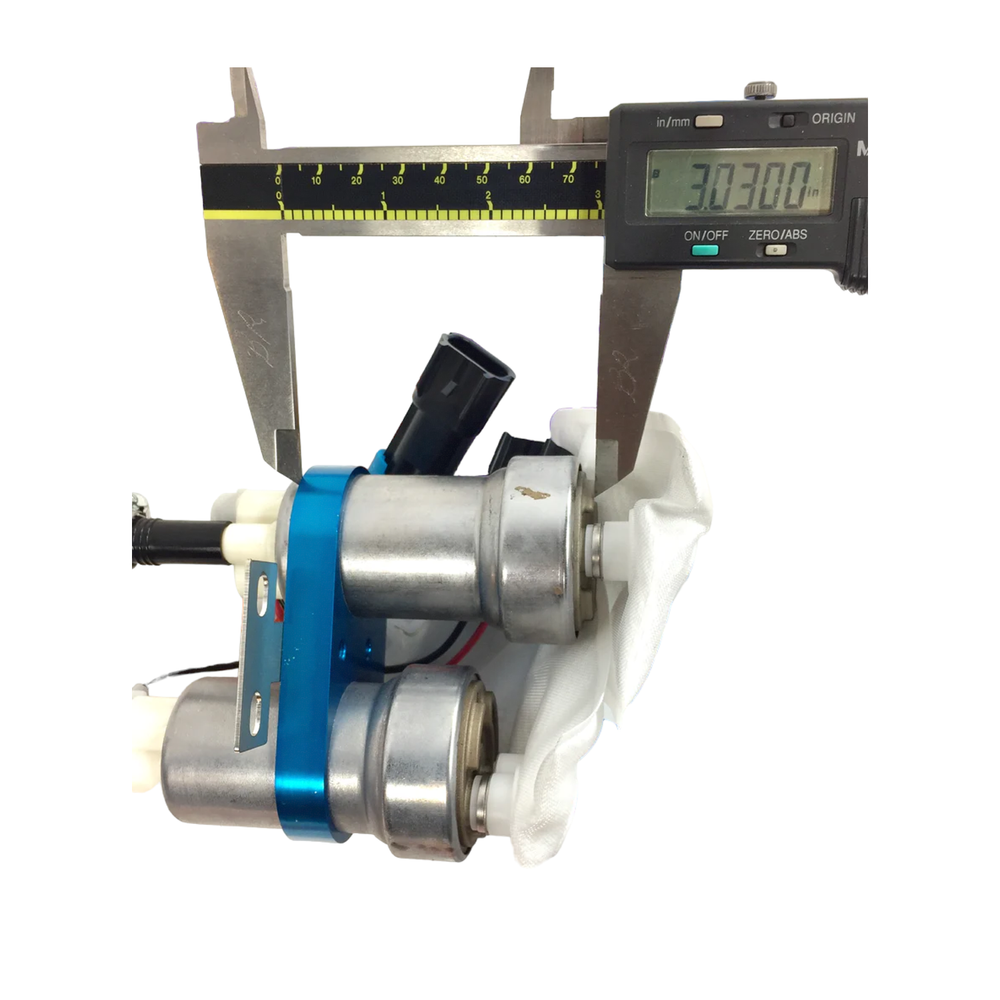

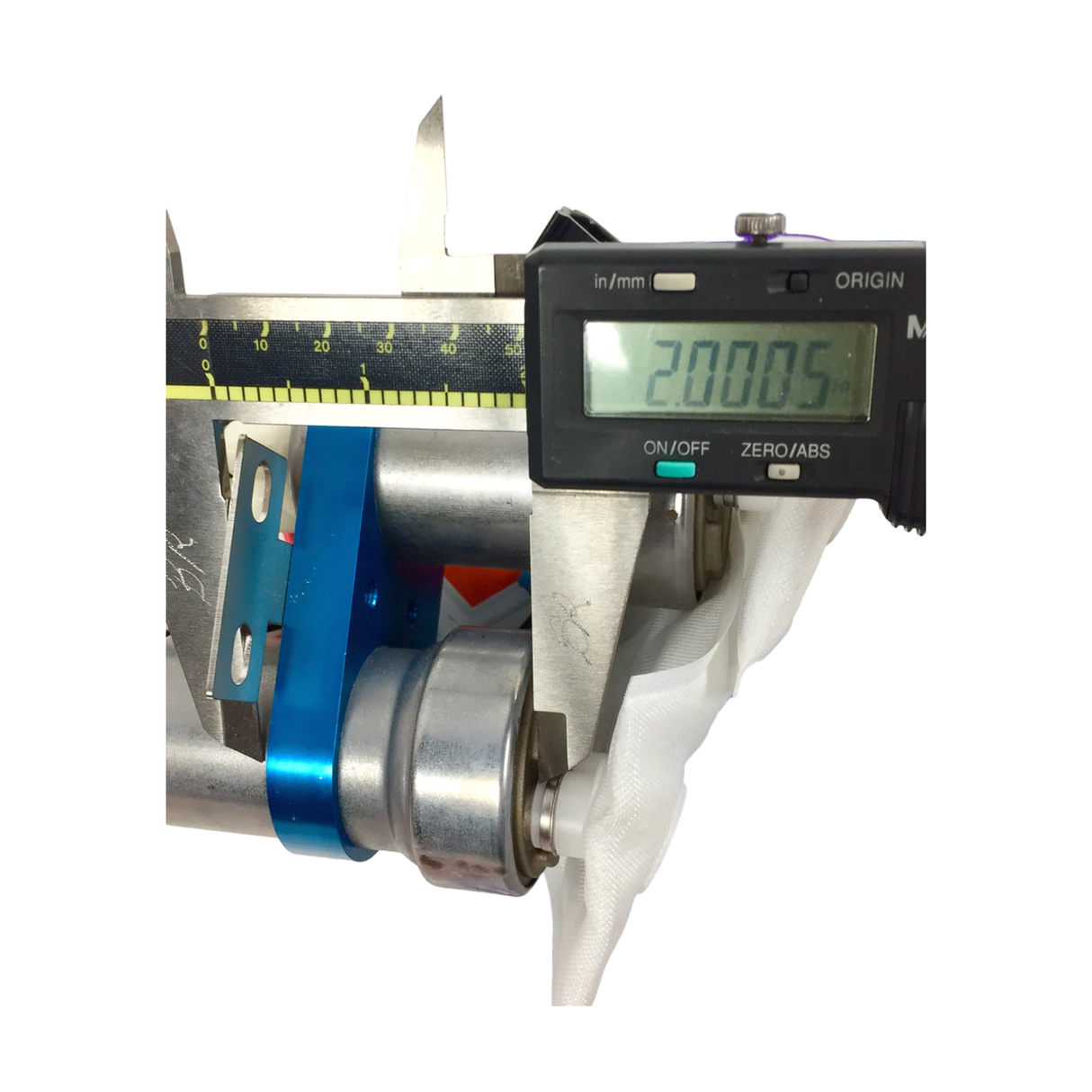

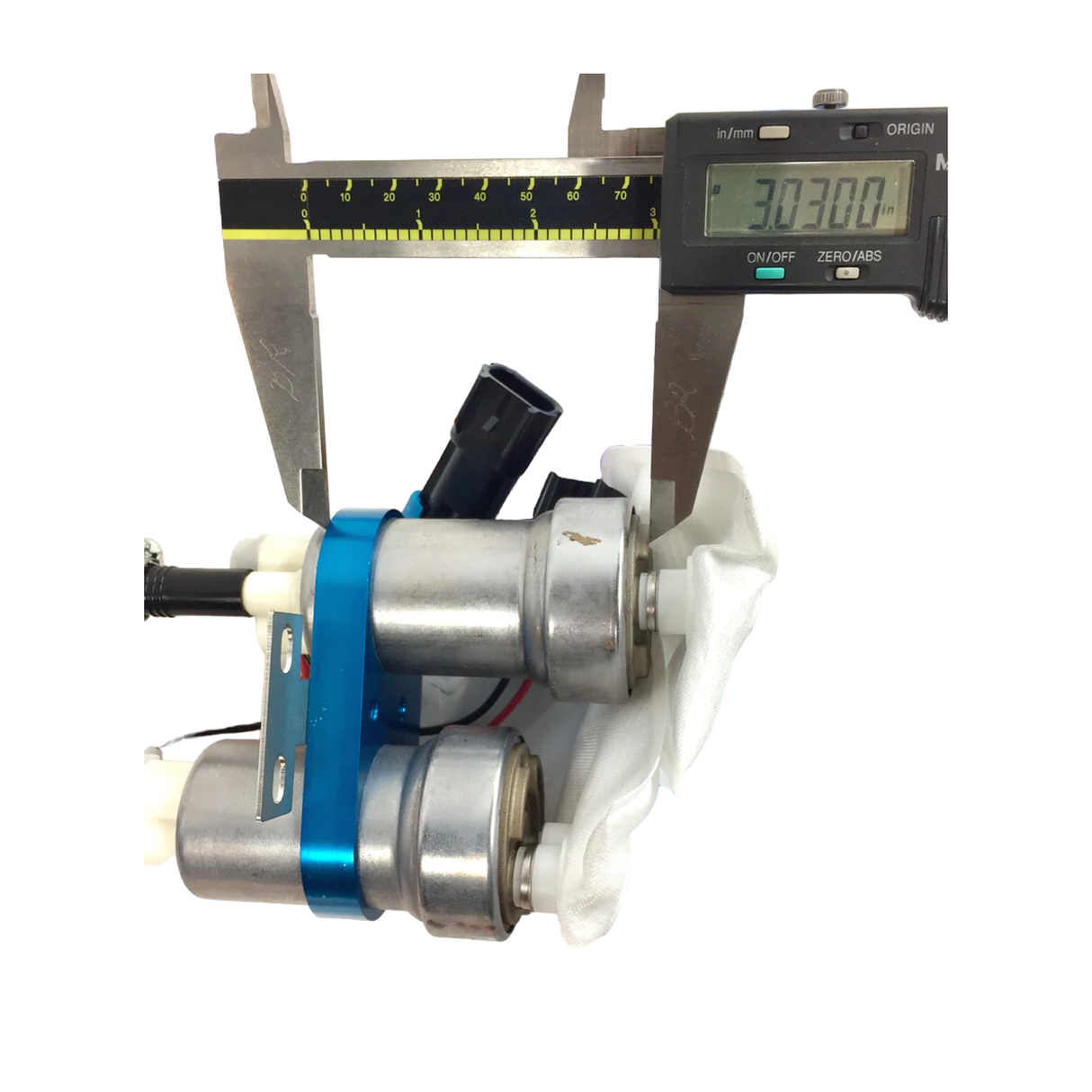

The hose assembly is made s for the Walbro 485 series of pumps, but the bracket will hold any combination of standard body fuel pumps up to 39mm in diameter. (Aeromotive 340, Walbro 255, Walbro 400, Walbro 485, HFP 340, etc.)

This dual pump hanger has been proven on many high horsepower cars making between 700 and 1,000 rwhp.

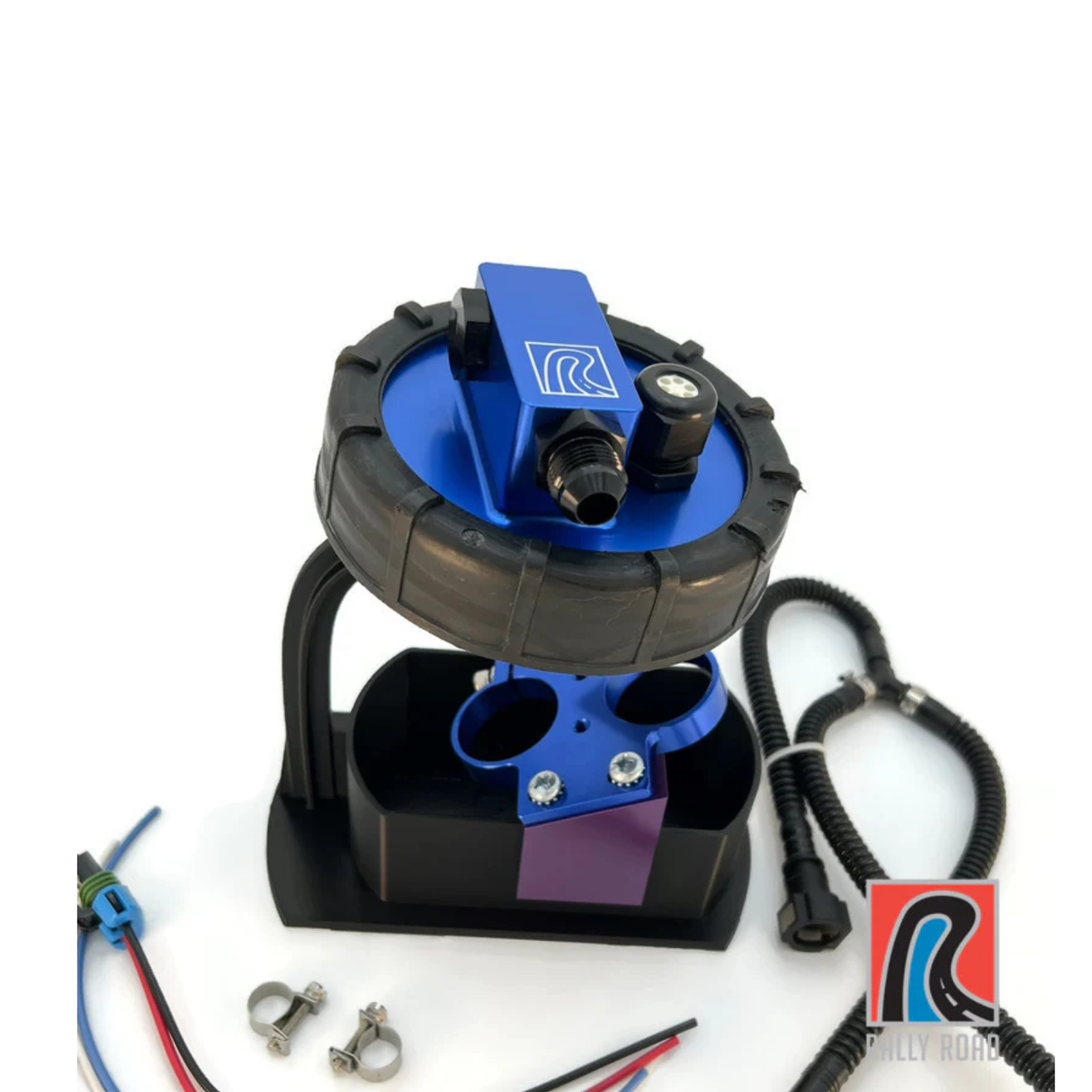

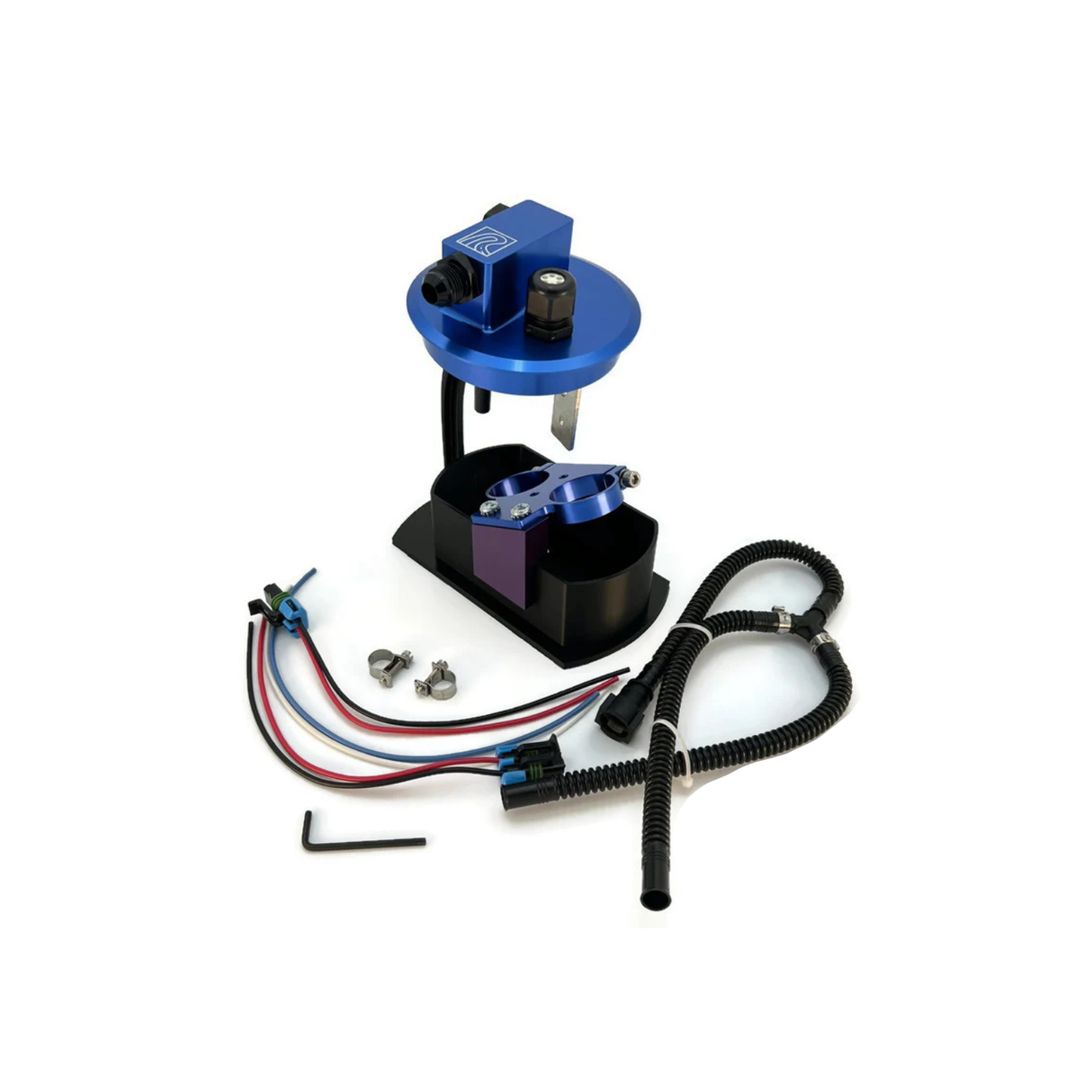

Kit Includes:

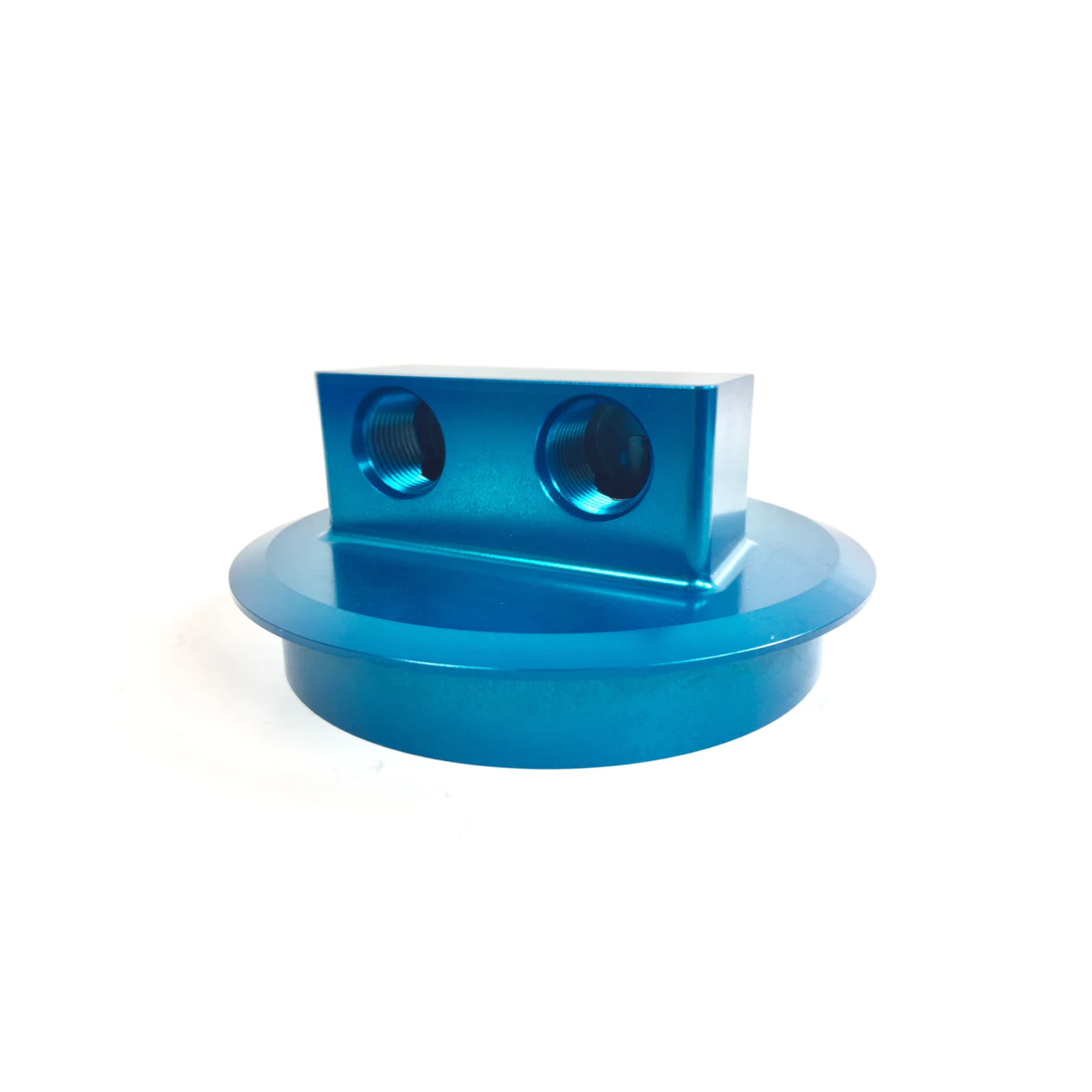

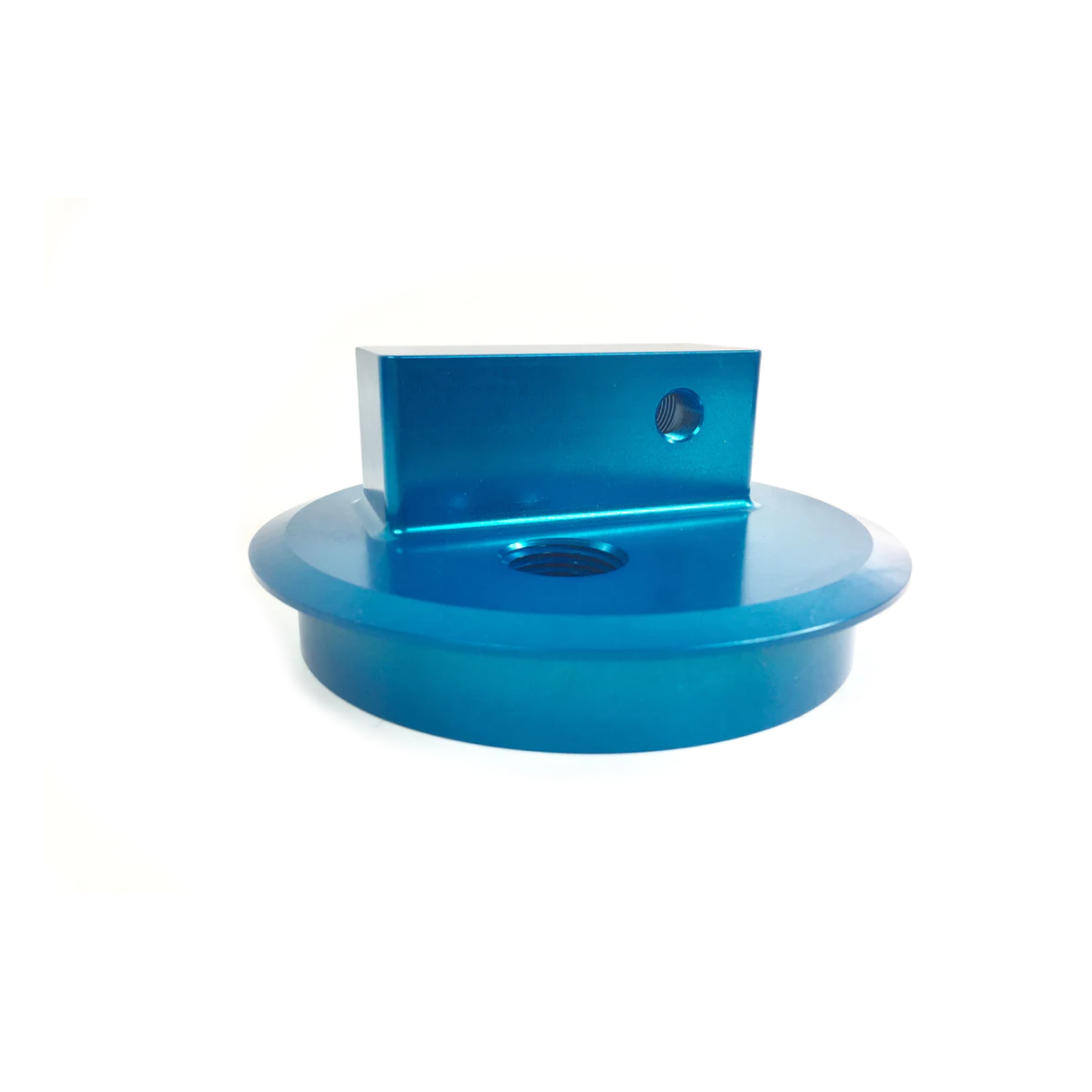

-Billet aluminum lid with -8 ORB ports and quick connect for Y-hose
-8AN Male Fitting
-8AN Plug
-6 Wire Liquid Tight Pass-Thru
-6 Pieces Multi Color Wire
-Y-Hose with quick connect
-Custom Quick Connect -8 ORB Fitting

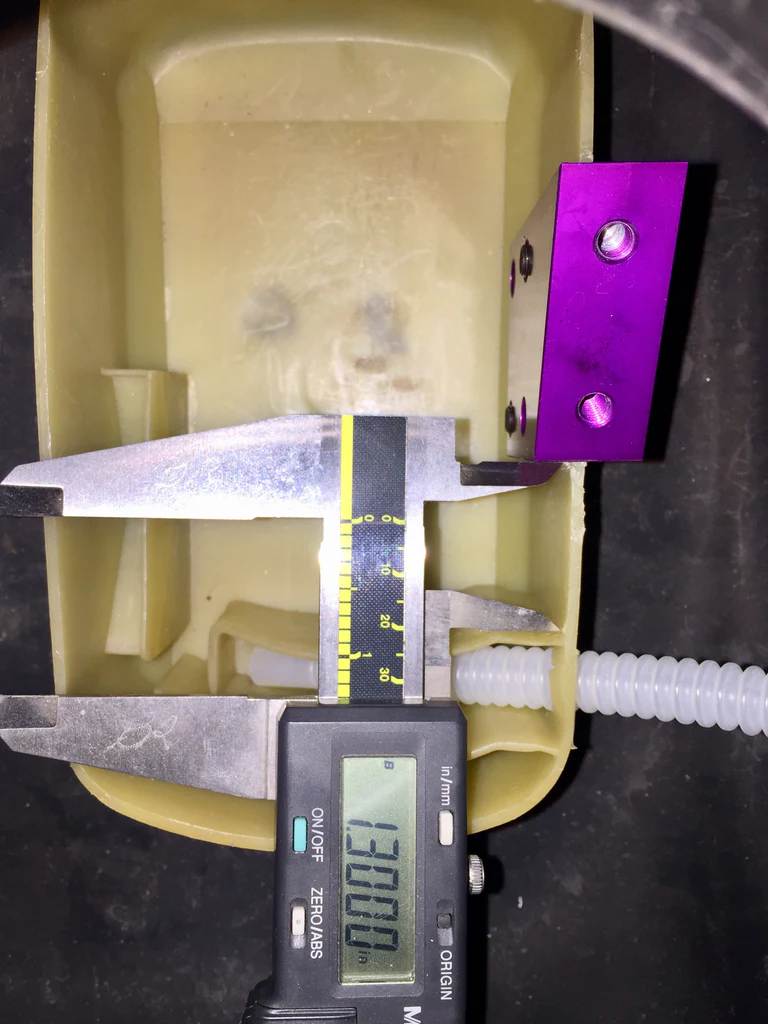

-Sump Locating Bracket with (2) set screws

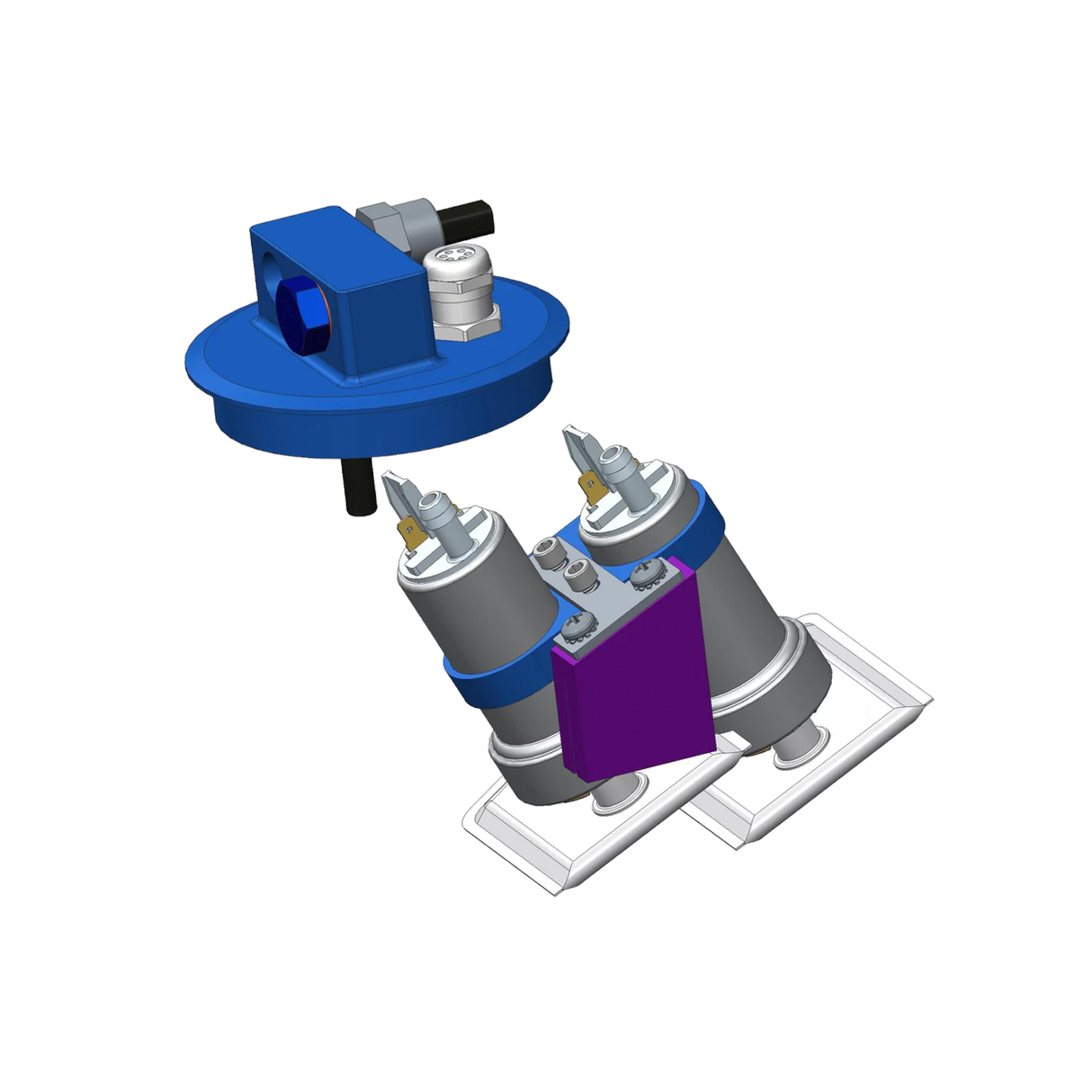

-Dual Pump Clamp Bracket with integrated sump mount

Installation Instructions: CLICK HERE

*Note: Fuel Pumps Not Included
