BMW E9x VANOS Solenoid Rebuilt Kit (N51/N52)

Your VANOS solenoid is a crucial part to your BMWs engine that controls oil for variable camshaft timing.  This is a common failure part and most of the time can be resolved by rebuilding the solenoid with this high quality kit.

Codes typically triggered by this solenoid valve are:

• 2A9A Cam sensor, inlet signal invalid for synchronization
• 2A98 (P0016) Crankshaft intake correlation value outside ref range
• 2A82 intake VANOS jammed mechanically
• 2A9B exhaust camshaft sensor signal invalid for synchronization
• 2A99 (P0017) Crankshaft position sensor and exhaust camshaft, the correlation - value outside the reference range
• 2A87 exhaust VANOS jammed mechanically

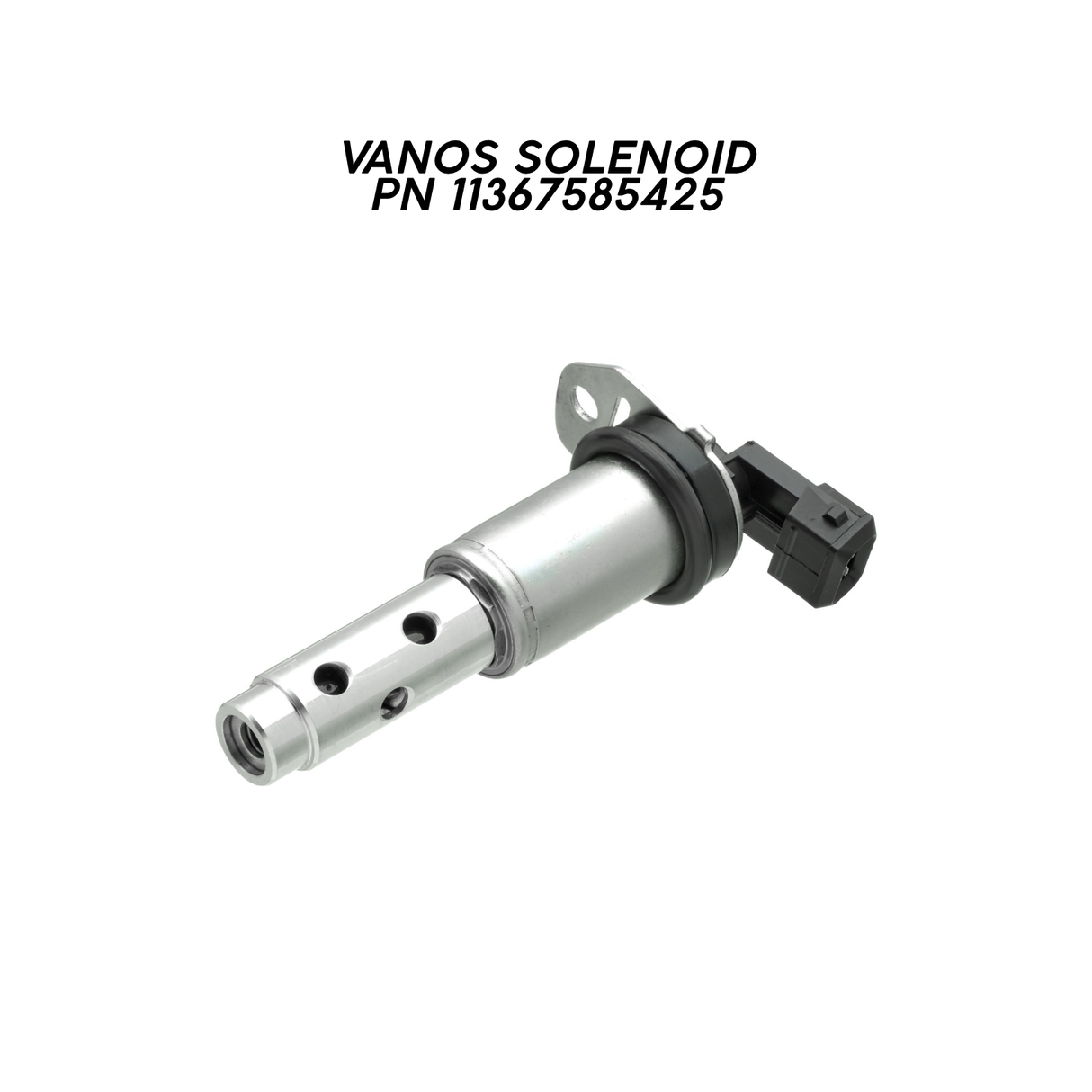

Kit fits BMW VANOS solenoid pn 11367585425

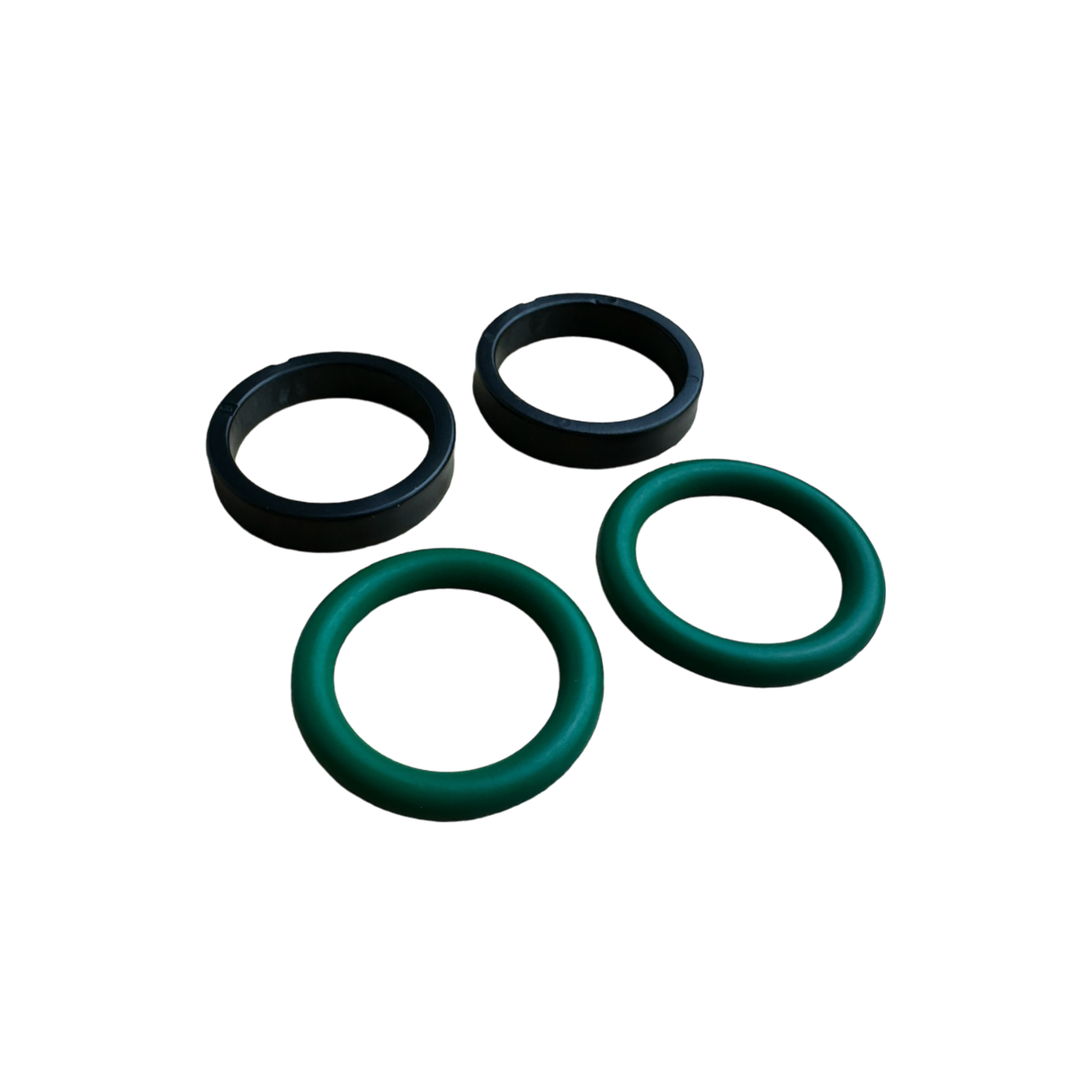

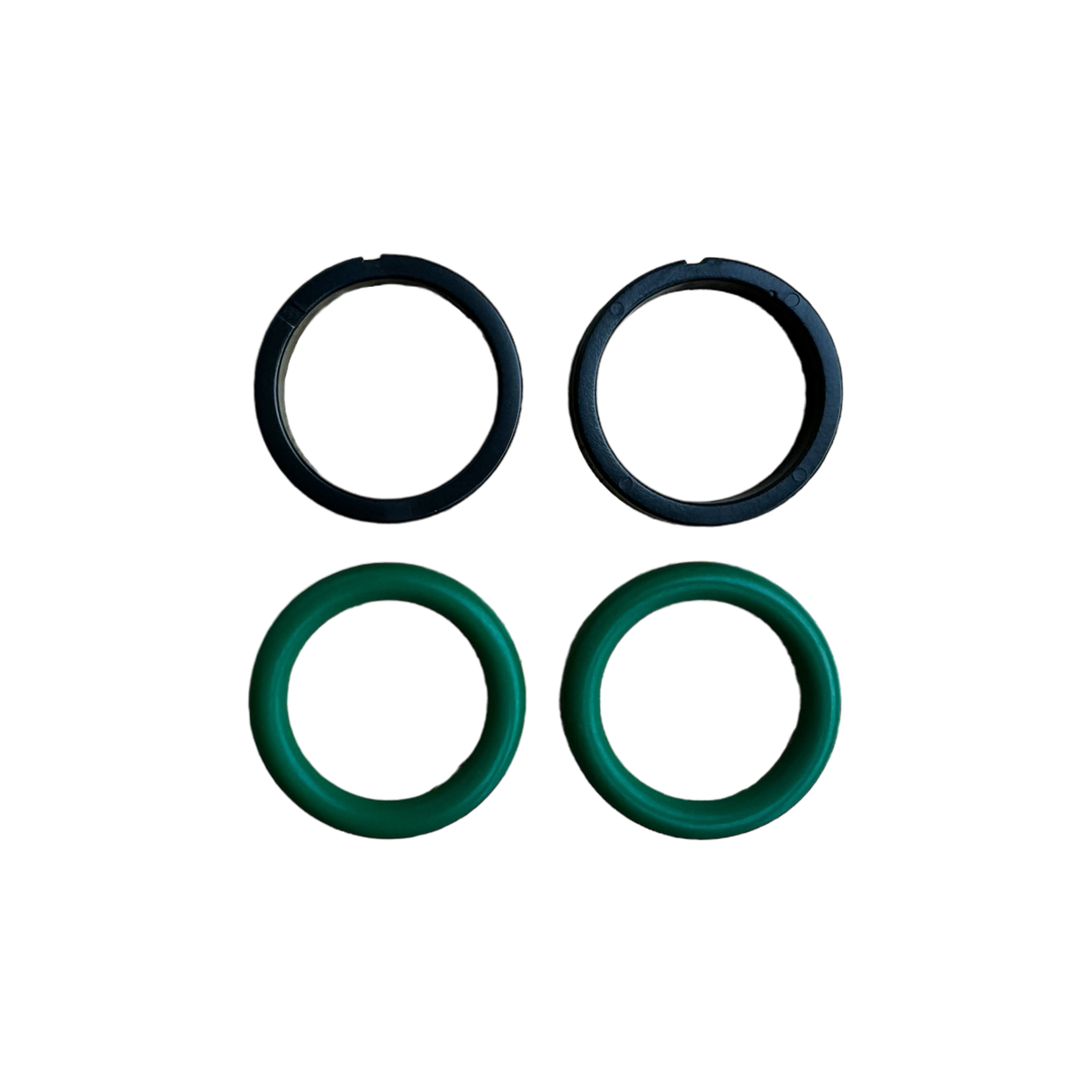

Kit Includes components for both solenoids:
- 2 Viton O rings
- 2 Nylong Rings

Our kits have upgraded FKM (viton) orings which have a much longer life space than the original NBR (buna) rubber

Fitment: (N51, N52 Engines 2006+

E90 E91 E92 E93: 323i, 325i, 325xi, 328i, 328xi, 330i, 330xi
X6 35iX, X6 50iX, X6 M Hybrid X6
X5 3.0si, X5 M, X5 35iX, X5 50iX
X3 3.0i, X3 3.0si
X1 35iX
Z4 3.0i, Z4 3.0si, Z4 3.0s, Z4 30i, Z4 35i, Z4 35is
128i, 135i, 135i M Coupé
