LF-30 Power Steering Pump Conversion Bracket - E36 E46 E39

LF-30 Power Steering Pump Mounting Bracket

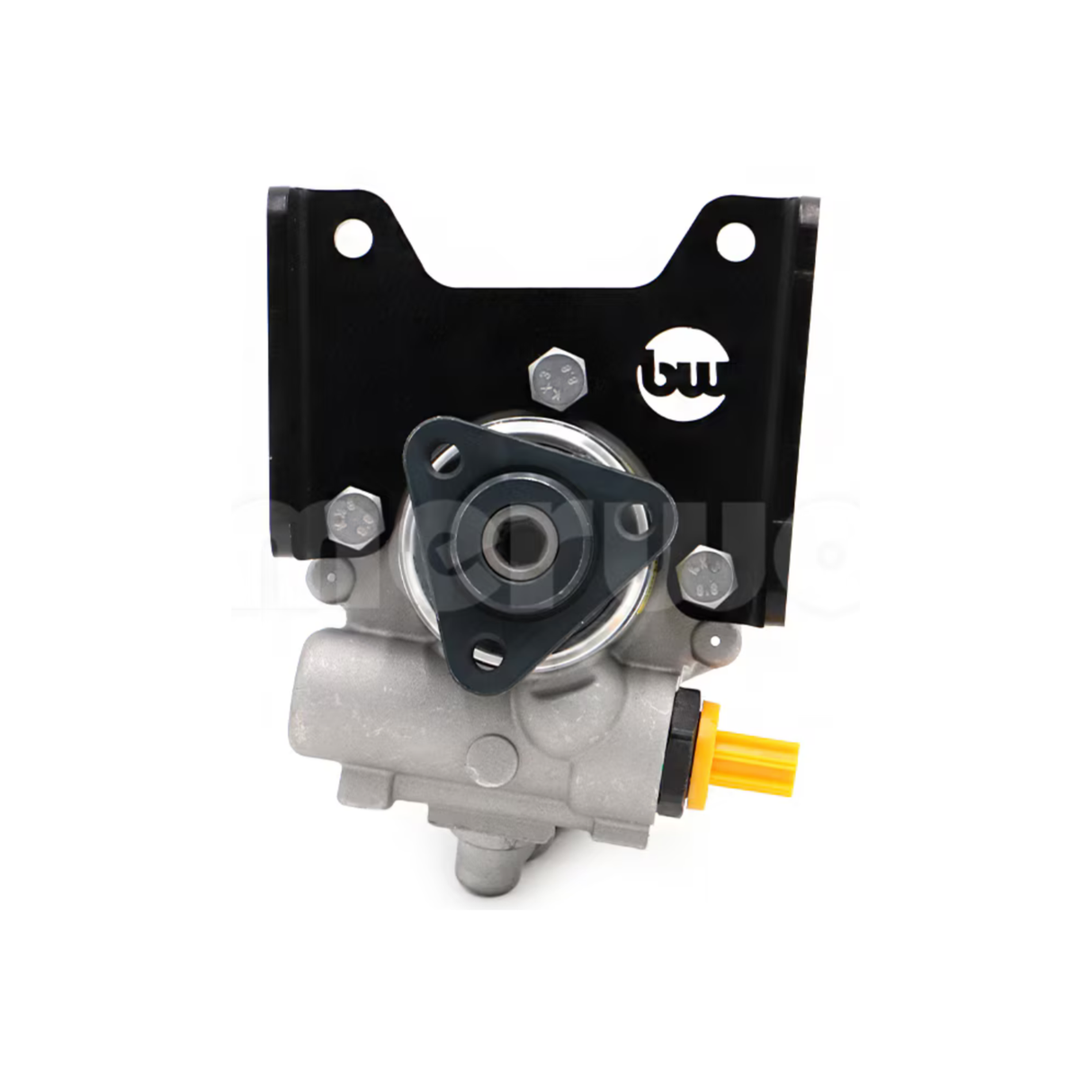

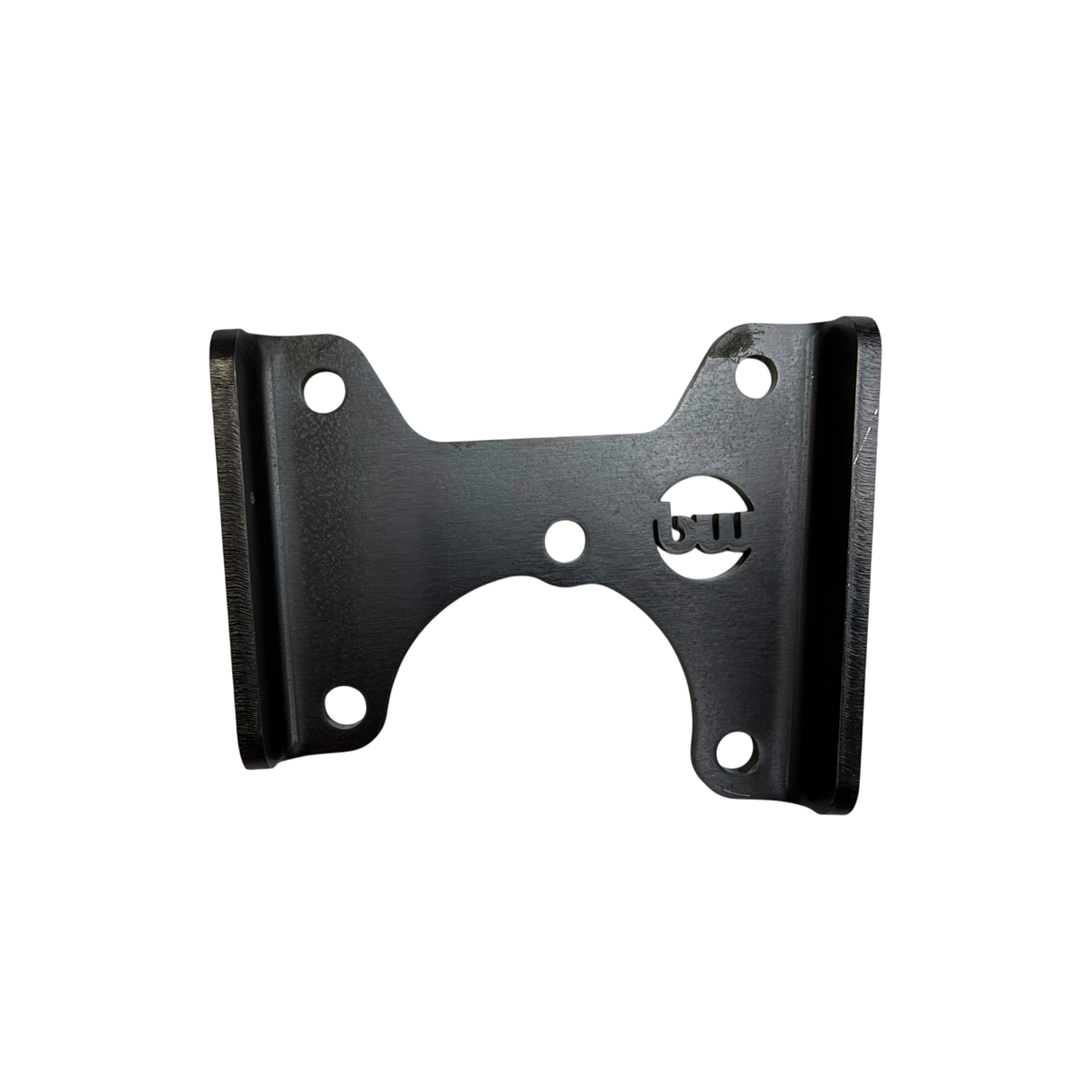

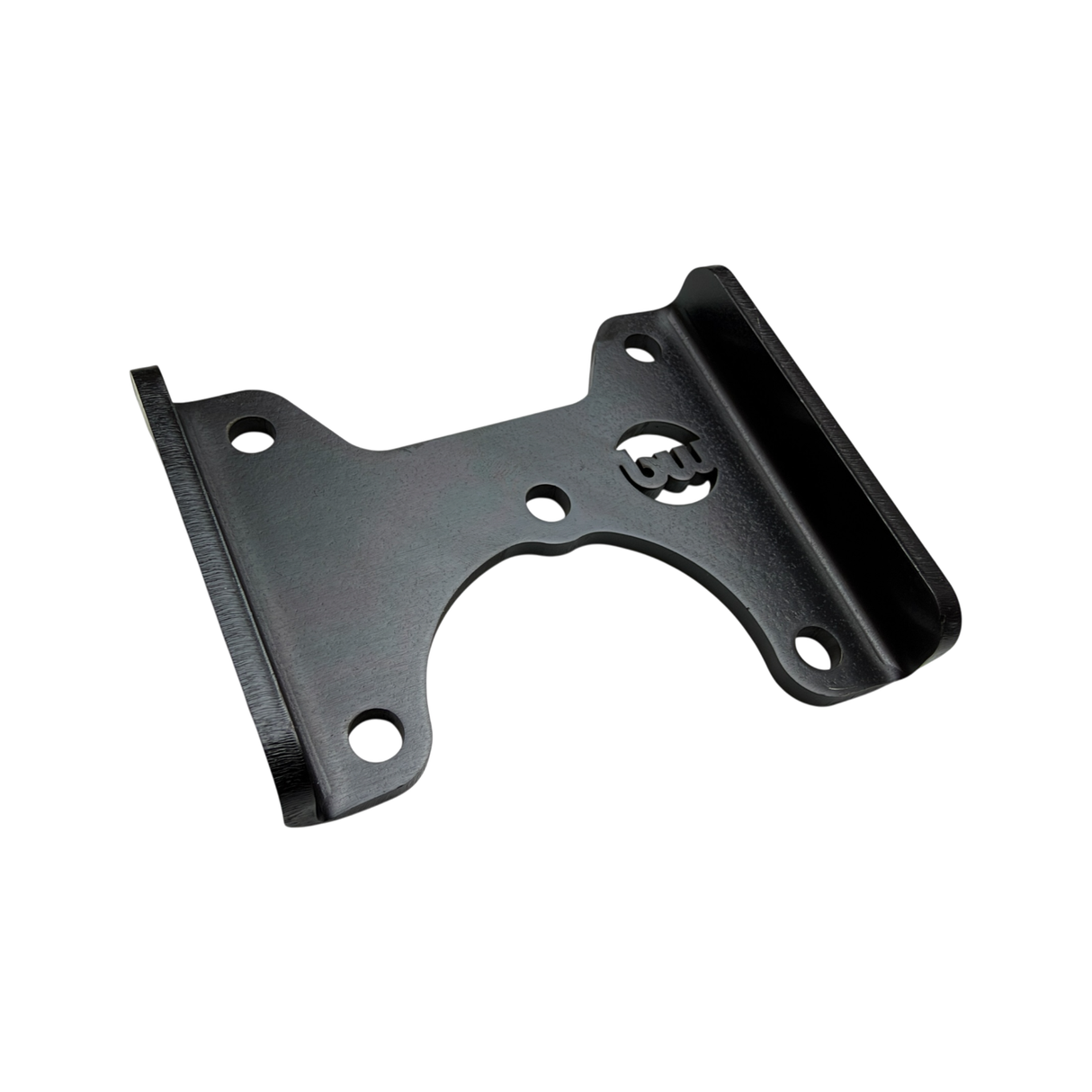

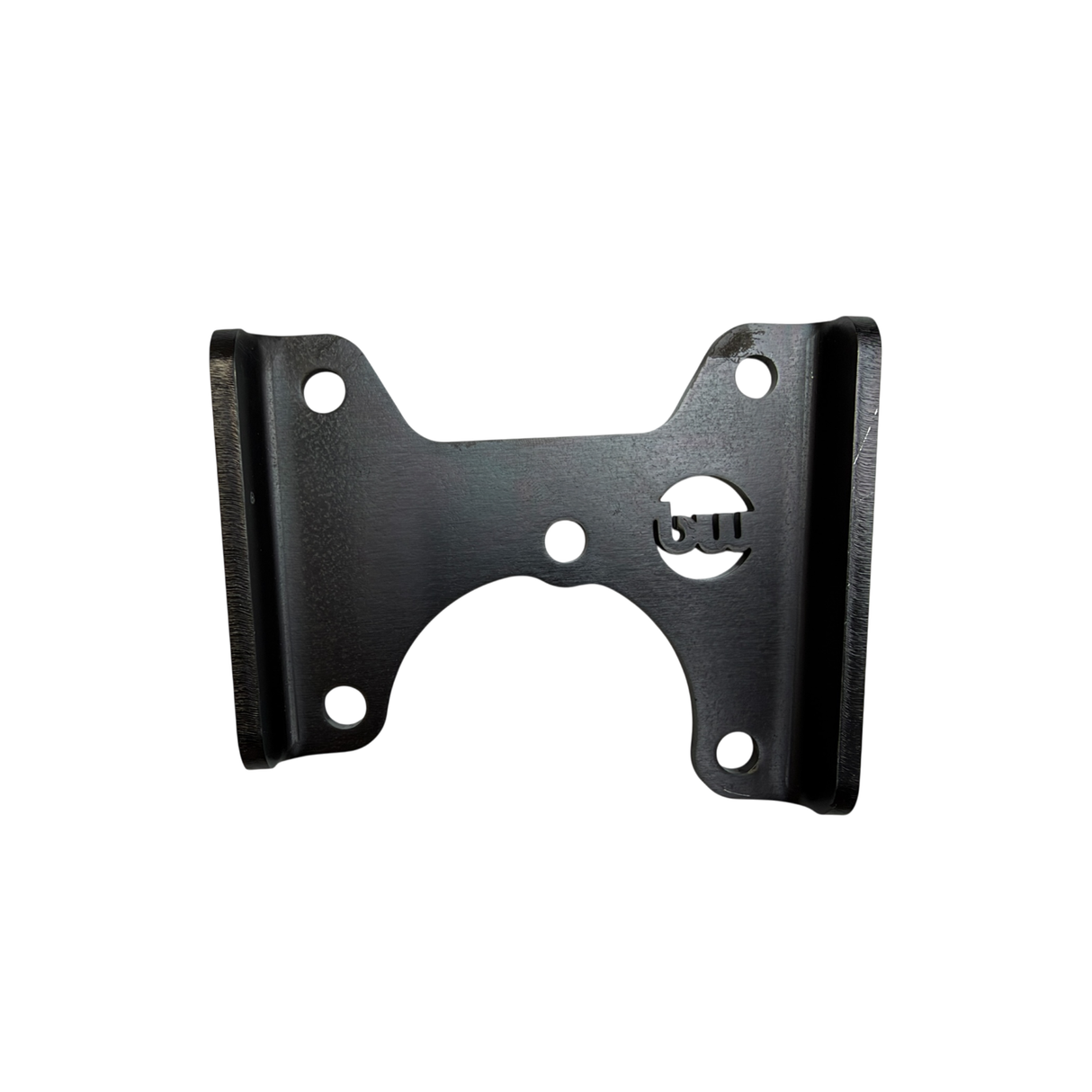

Upgrade or retrofit your BMW power steering system with the BimmerWorld LF-30 Power Steering Pump Mounting Bracket, a direct replacement for BMW part number 32421740780 (32 42 1 740 780).

BMW no longer supplies this bracket, and it is not included with new LF-30 pumps, whether Genuine BMW, OEM, or aftermarket. If your E36 or E39 already has an LF-30 installed, you can typically reuse the factory bracket. However, when retrofitting an LF-30 pump onto an E46, this bracket is required for proper installation.

Fitment

Designed to mount the LuK LF-30 power steering pump to BMW M52 and M54 engines found in:

• E36: 323i, 323is, 328i, 328is (1996–1999)
• E46: 323Ci, 323i, 325Ci, 325i, 328Ci, 328i, 330Ci, 330i (1999–2006)
• E39: 525i, 528i, 530i (1997–2003)

The bracket is manufactured slightly thicker than the original BMW piece for a robust, precise mounting solution while retaining compatibility with the original engine-side mounting hardware.

Please note: Hardware used to mount the LF-30 pump to the bracket is sold separately.

Replaces

BMW Part Number: 32421740780 / 32 42 1 740 780

Recommended to go with the bracket:

32416756582, power steering pump
32421740780, pump bracket
07119903039 (x3), bracket screws
64508390601, gasket ring from pump to hose
32416764725, pressure hose from pump to rack
32411093596, gasket ring from hose to rack
32416851217, OEM fluid reservoir
32416750155, OEM hose from reservoir to pump (for 2002+ models only)
